Description

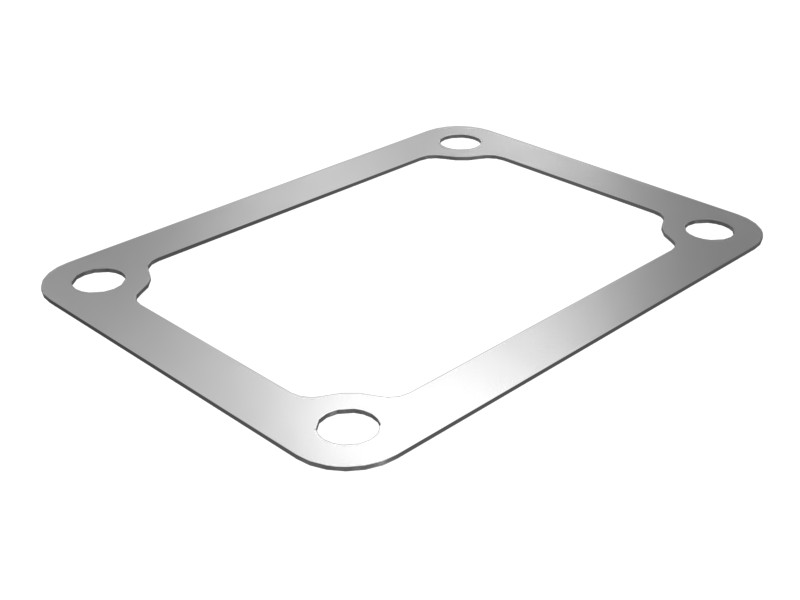

Gaskets use compression between mating parts to achieve a tight, leak-free seal. Cat square-rectangular gaskets (such as 1W-3557) are designed with the right combination of material and shape to deliver the desired performance for your application.
Features
- Type: Square-Rectangular
- Style: Flat
- Medium-compressibility sheet material
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Type | Square-Rectangular |
|---|---|
| Style | Flat Plate |
| Material | Rubber & Cork, Rubber & Fiber Gasket |
| Length | 127 mm (5 in) |
| Width | 94 mm (3.7 in) |
| Thickness | 0.8 mm (0.03 in) |
| Hole Size | 10.5 (4X) mm (0.41 (4X) in) |
Compatible Equipment
- Motor Graders: 3606
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
