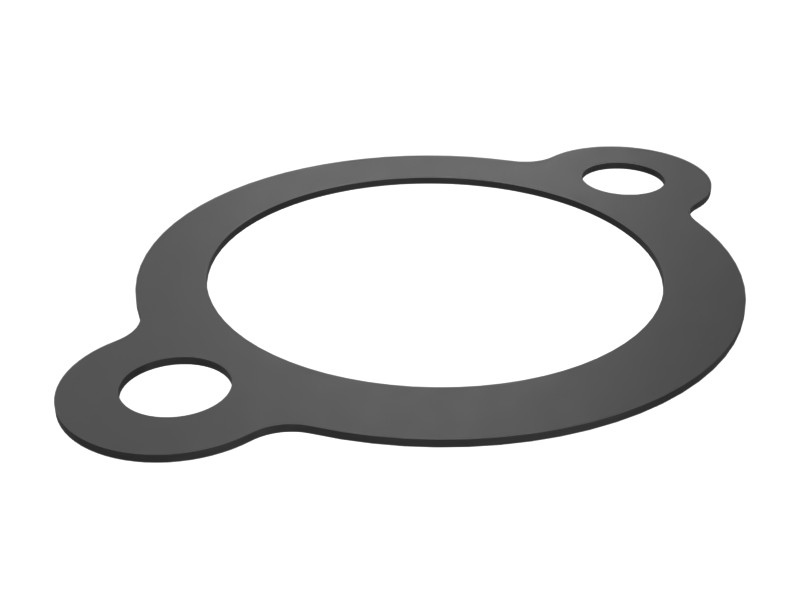

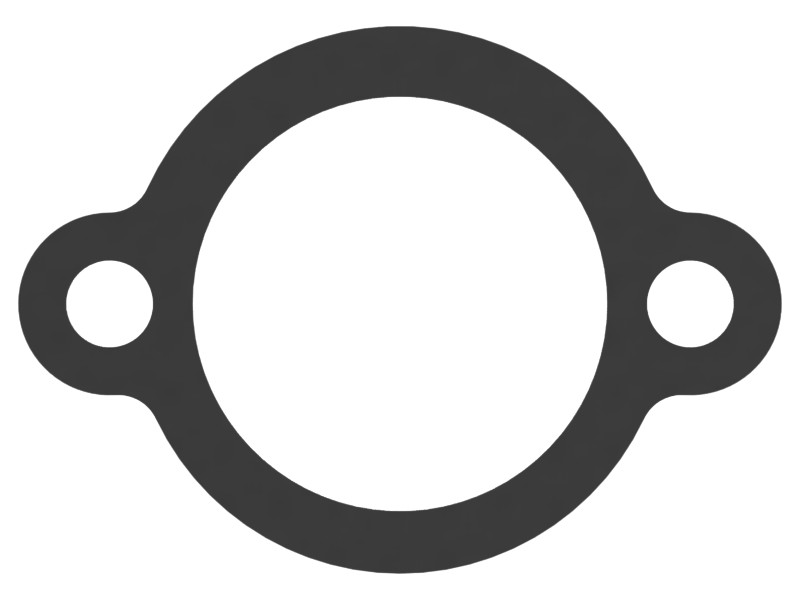

Description
Gaskets use compression between the mating parts to achieve a tight, leak-free seal. Cat gaskets are designed with the right combination of material and form to deliver the desired performance for your application.
Specifications
| Type | 2-Hole Flange |
|---|---|
| Style | Flat Plate |
| Material | Non-metallic fiber and rubber |
| Inside Diameter | 50.0 mm (1.97 in) |
| Outside Diameter | 65.0 mm (2.56 in) |

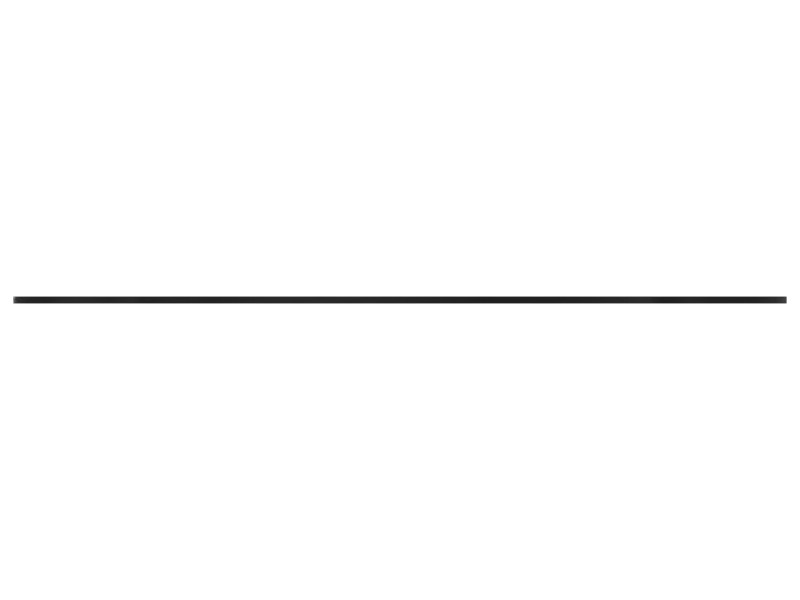

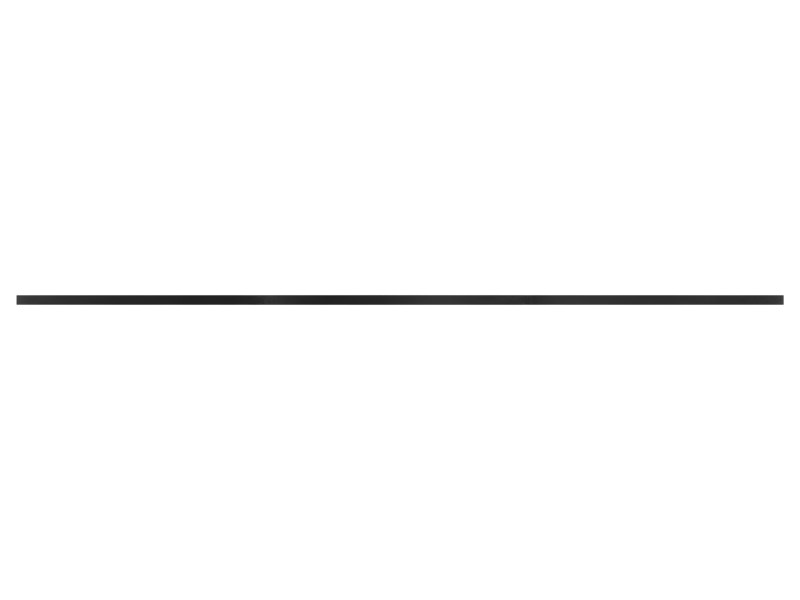

| Thickness | 0.8 mm (0.03 in) |
| Hole Size | 10.5 (2X) mm (0.41 (2X) in) |
| Flange Hole Spacing | 70.0 mm (2.76 in) |
Compatible Equipment
- Motor Graders: 3606
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
