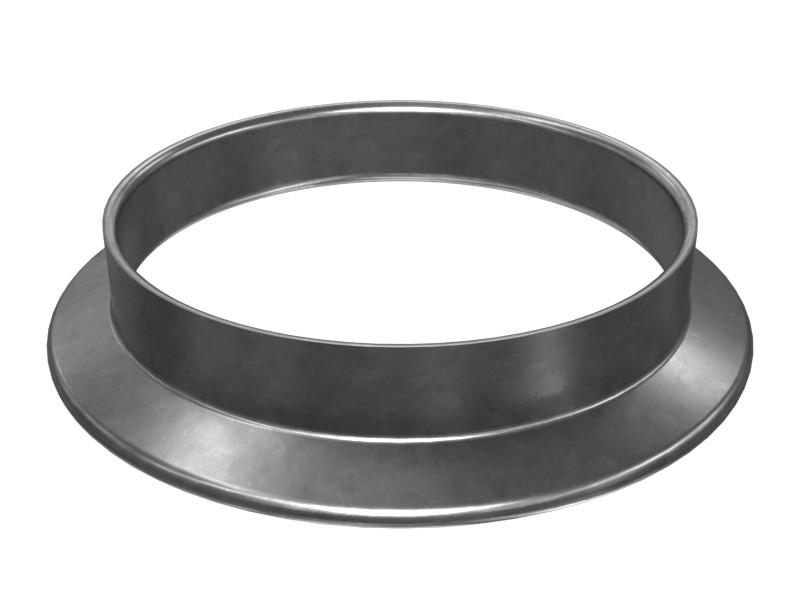

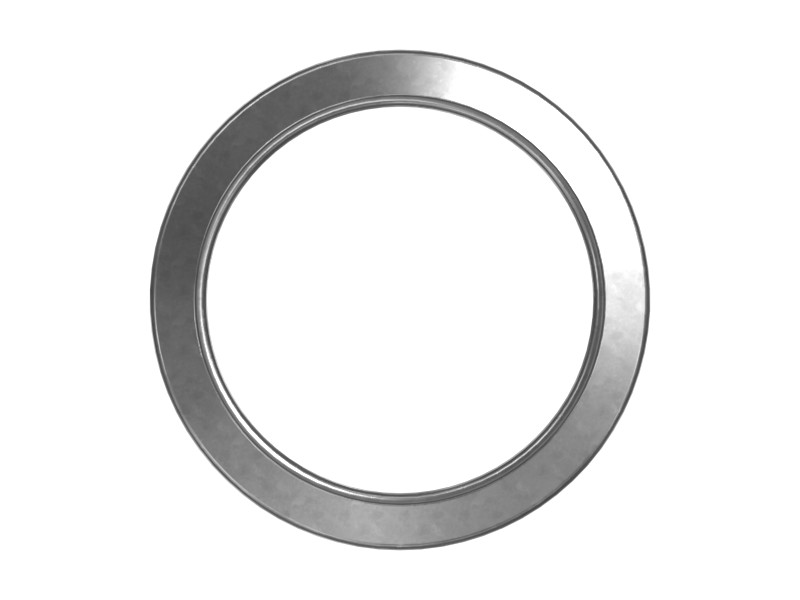

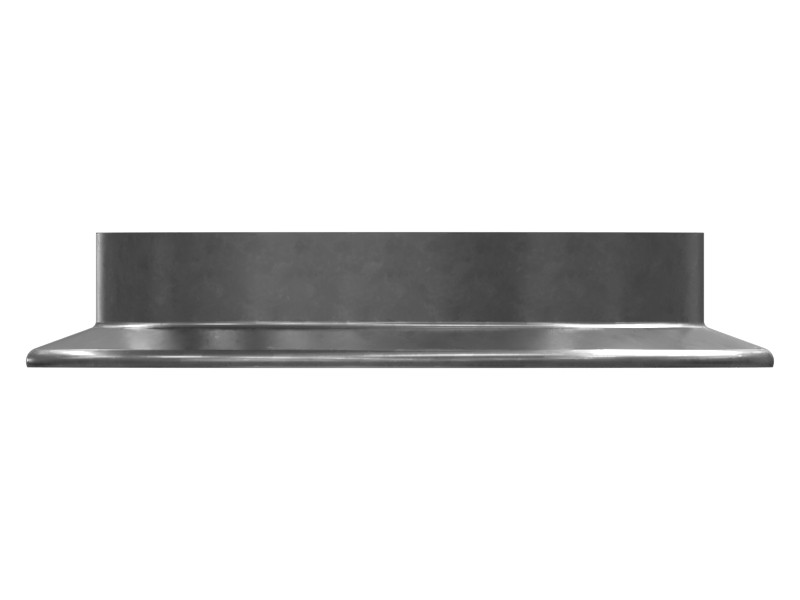

1W-0481 64.5 mm ID Exhaust Seal Ring
Cat® 64.5 mm ID exhaust seal ring for exhaust systems
Description
Seals and seal rings provide effective sealing between system components operating under a variety of conditions. Their materials and shapes are designed to work together to deliver the performance you expect in your application.
Specifications
| Cross Hole | No |
|---|---|
| Overall Length | 15 mm (0.591 in) |
| Ferrule Outside Diameter | 67.9 mm (2.673 in) |
| Unique Features | No |
| Ferrule Inside Diameter | 64.6 mm (2.543 in) |
| Flange Thickness | 1.65 mm (0.065 in) |
| Flange Diameter | 83.3 mm (3.28 in) |
| Material | Stainless Steel |
| Outside Diameter | 83.3 mm (3.280 in) |
| Inside Diameter | 64.6 mm (2.543 in) |
| Width | 15.0 mm (0.591 in) |
Compatible Equipment
- Dozers: D10R, D10N, D9N, D8L, D9R, D9L
- Excavators: 637E
- Wheel Loaders: 988F
