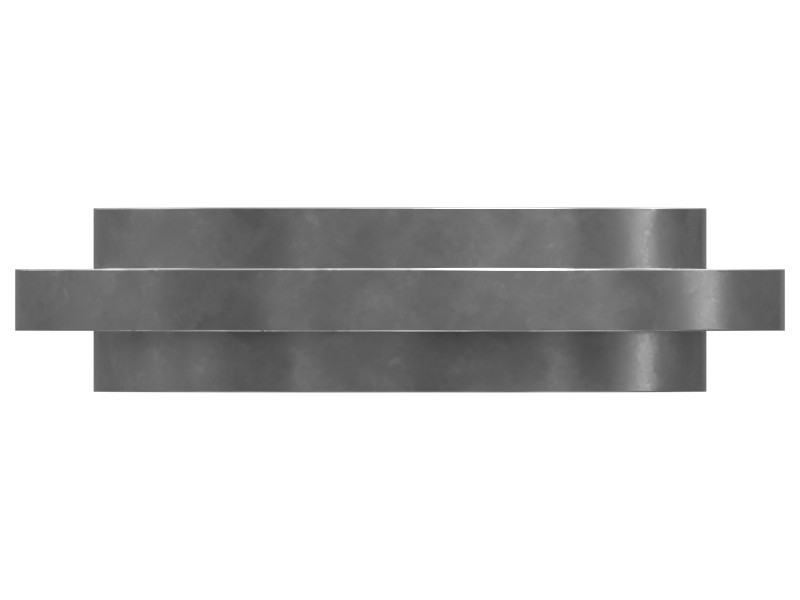

1V-6341 Triangular Bonded Sealing Washer
Cat® Rubber Edge-Bonded Triangular Sealing Washer
Description
The sealing washer is used to prevent leakage through bolt holes in low-pressure applications.
Features
Cat® sealing washers are steel washers with a bonded rubber center.
When selecting rubber materials, the temperature and fluid compatibility requirements of the application are taken into account.
Genuine Cat seals properly protect your investment. If it's not made by Cat, it's just an ordinary seal.
Applications
The sealing washer is used in bolted joints that require leak protection.
Specifications
| Material | Rubber/Steel |
|---|---|
| Fastener Size | 5/8 in |
| Primary Seal Material | Rubber |
| Outside Diameter | 30.2 mm (1.19 in) |
| Remarks | Dimensions and material descriptions are for reference only. |
| Steel Thickness | 2.4 mm (0.09 in) |
| Inside Diameter | 15.9 mm (0.62 in) |
Compatible Equipment
- Generator Sets: 3512E, C7.1, 3406B
- Track Loaders: 992, 824C, 826H, 990K, 995, 994K, 993, 816F, 824G, 826G, 834H
- Motor Graders: 12H, 140H, 120H, 16H
- Compactors: 815, 816, 814, C9.3B
- Wheel Excavators: MD6250, MD6310
- Engines: C18
- Dozers: D11R, D11N, D10R, D10N, D9N, D9R, D8L, D8N, D9L, D4E
- Excavators: 3516E, 3508B, 6060, 385C L, 365C L, 365C, 385B, 385C, 385C FS, 3516B, 390D, 374D L, 390D L
- Wheel Loaders: 962G, 836, 950G, 950H, 992C, 992D, 988H, 988F, 988G, R3000H, R2900G, 950 GC, 980H, 910, 966F, 966H, 980G, 924GZ, 972G, 972H, 990H, 928G, R1700G, R1300G
- Off-Highway Trucks: 777D, 730, 785, 789, 725, 793D, 735, 725C2, 777, 793
- Asphalt Pavers: AD30, AD45
Additional information
| Machine Model | 120H, 12H, 140H, 16H, 3406B, 3508B, 3512E, 3516B, 3516E, 365C, 365C L, 374D L, 385B, 385C, 385C FS, 385C L, 390D, 390D L, 6060, 725, 725C2, 730, 735, 777, 777D, 785, 789, 793, 793D, 814, 815, 816, 816F, 824C, 824G, 826G, 826H, 834H, 836, 910, 924GZ, 928G, 950 GC, 950G, 950H, 962G, 966F, 966H, 972G, 972H, 980G, 980H, 988F, 988G, 988H, 990H, 990K, 992, 992C, 992D, 993, 994K, 995, AD30, AD45, C18, C7.1, C9.3B, D10N, D10R, D11N, D11R, D4E, D8L, D8N, D9L, D9N, D9R, MD6250, MD6310, R1300G, R1700G, R2900G, R3000H |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Asphalt Pavers, Engines, Generator Sets |
| Part Source | Genuine OEM |
