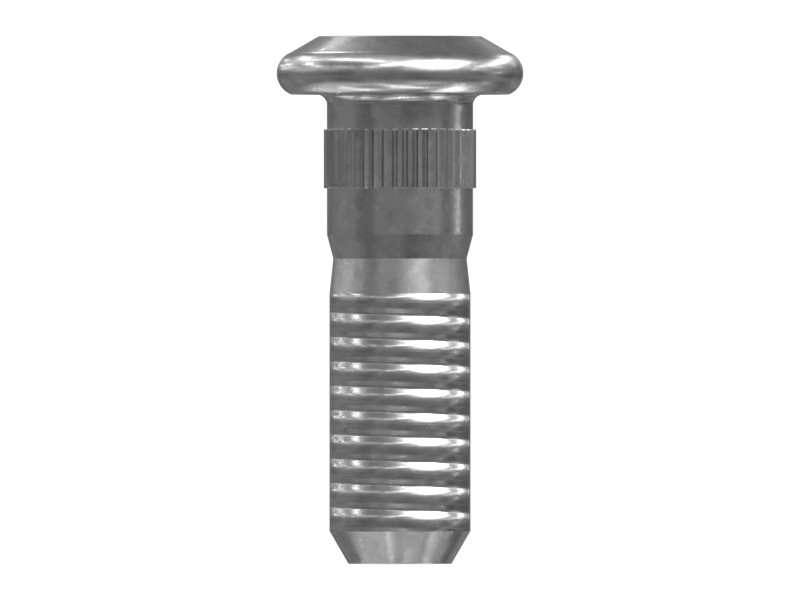

1V-3323 3/4-16 Thread Wheel Stud Bolt
Cat® 3/4-16 thread 63.5 mm long wheel bolt stud, for power train and brake systems.
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
A wheel stud is typically a threaded fastener that secures the wheel hub to the axle. A nut is tightened onto the wheel stud to secure the wheel.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat studs, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat studs form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can rely on Cat hardware and fasteners to help you build, maintain or rebuild – for most machine and shop applications around the world.
Specifications
| Head Thickness | 8.6 mm |
|---|---|
| Thread Size | 0.750 mm |
| Material Description | 1035 MPa Tensile Serrated Bolt |
| Serrated | 20.7 |
| Remarks | Number of Plies: 0 |
| Length | 63.5 mm |
| Head Diameter | 33.3 mm (1.31 in) |
| Handle Length | 27 mm (1.06 in) |
| Hole Thread Pitch | 16 |
| Stud Type | Wheel Stud (Bolt) |
| Overall Length | 2.5 in |
| Stud Thread Size | 3/4-16 in |
| Rod Diameter | 0.815 in |
| Head Height | 0.34 in |
| Coating | Zinc Phosphate and Oil |
Compatible Equipment
- Wheel Loaders: 950, 966F, 910, R1300G, R1600H
- Off-Highway Trucks: 740, 735
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
