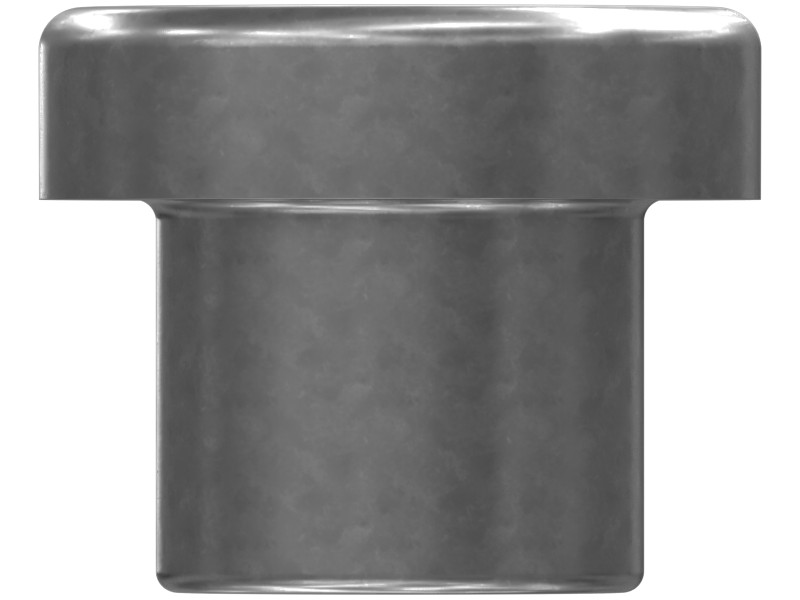

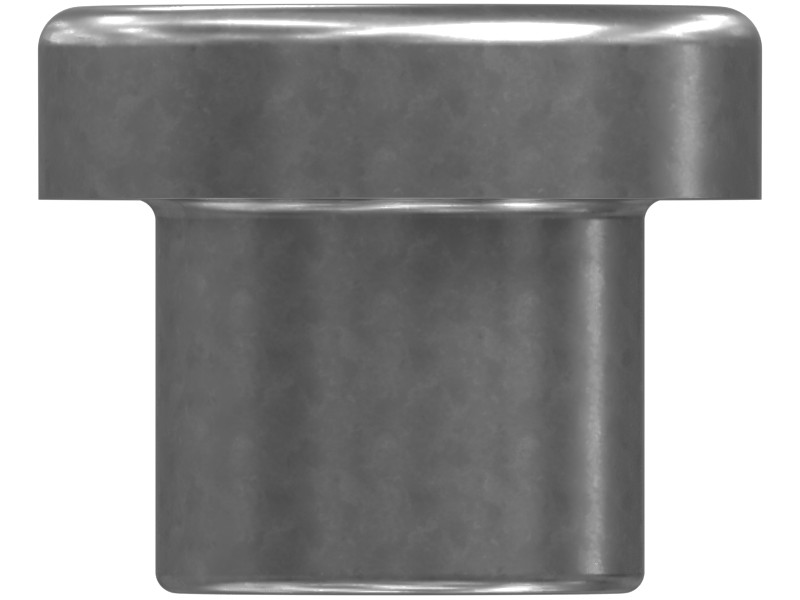

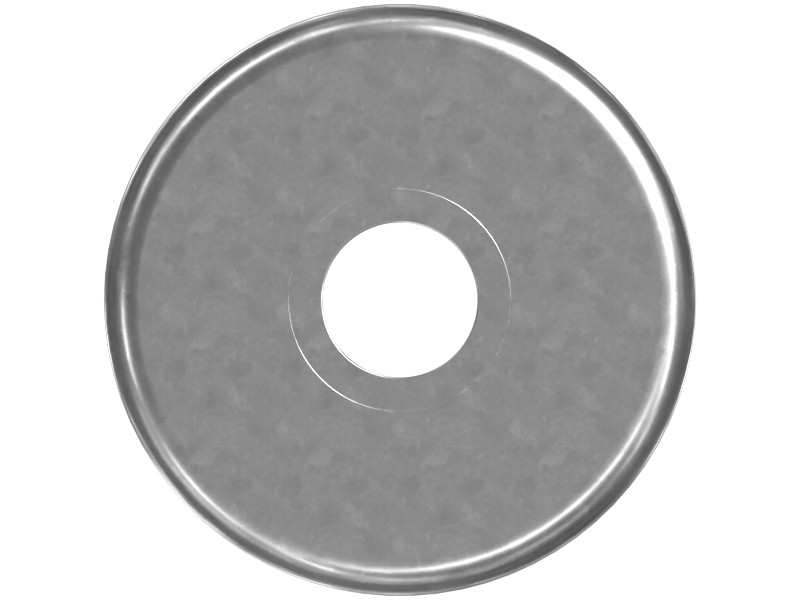

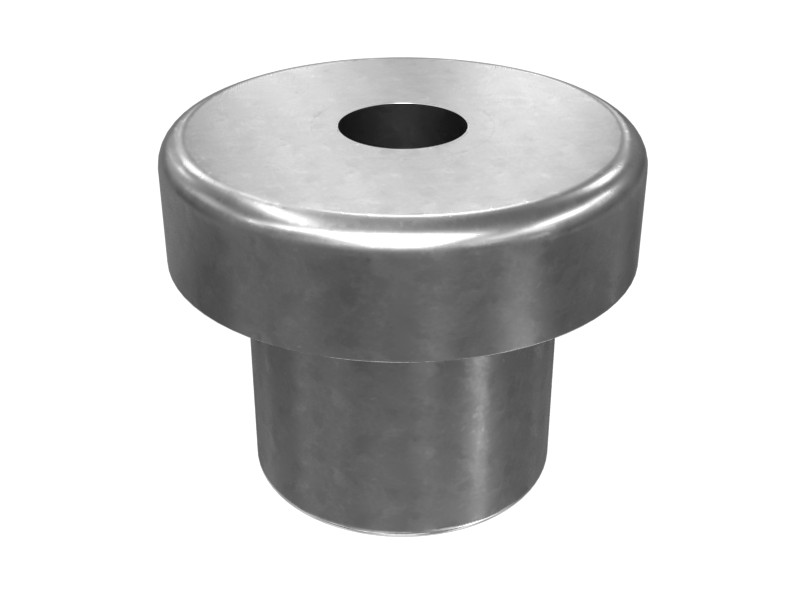

1V-0554 Mushroom Mount
The Cat® mushroom-shaped mount absorbs vibration and shock, secures the engine, improves performance, and prevents damage.
Fitment data not listed — send us your machine model or serial number to confirm.
Description
The isolation mount is used to mount and locate systems, accommodate displacement, and isolate components from the surrounding structure (vibration, shock, noise).
The mushroom mount uses a rubber plate that, once installed in the support plate, flares out or spreads like a "mushroom" to form its own rebound pad.
Features
Cat® mounting systems are designed to reduce the stress and strain on installed components, improve component durability and extend service life, and improve operator comfort. The entire system (mount design, material selection, placement, fasteners, etc.) is optimized and validated to meet specific application requirements.
The mushroom mount has a simple one-piece design. Follow the correct procedure during installation to ensure the mount is fully seated and the mushroom end spreads out correctly.
Applications
Mushroom mounts are used in a variety of Cat system installations, especially light- to medium-load applications such as hydraulic lines, fuel tanks, fans, and cooler assemblies.
Specifications
| Mounting Type | Mushroom Mount |
|---|---|
| Material | Carbon Steel |
| Head Outside Diameter | 50.8 mm (0.079 in) |
| Sleeve Length | 33.3 mm (1.31 in) |
| Overall Length | 41.1 mm |
| Pilot OD | 34.3 mm (1.35 in) |
| Inside Diameter | 13.5 mm (0.53 in) |
| Standard Bolt Size | M12 mm |
Additional information
| Part Source | Genuine OEM |
|---|
