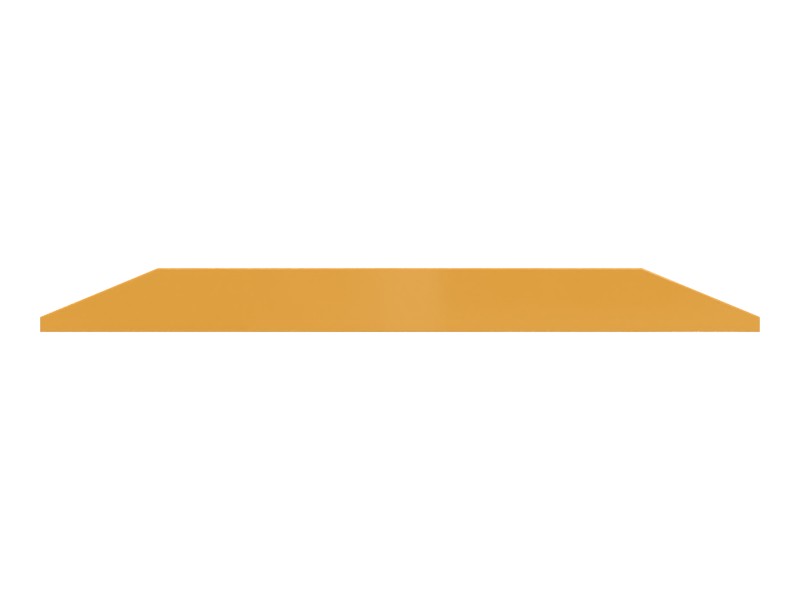

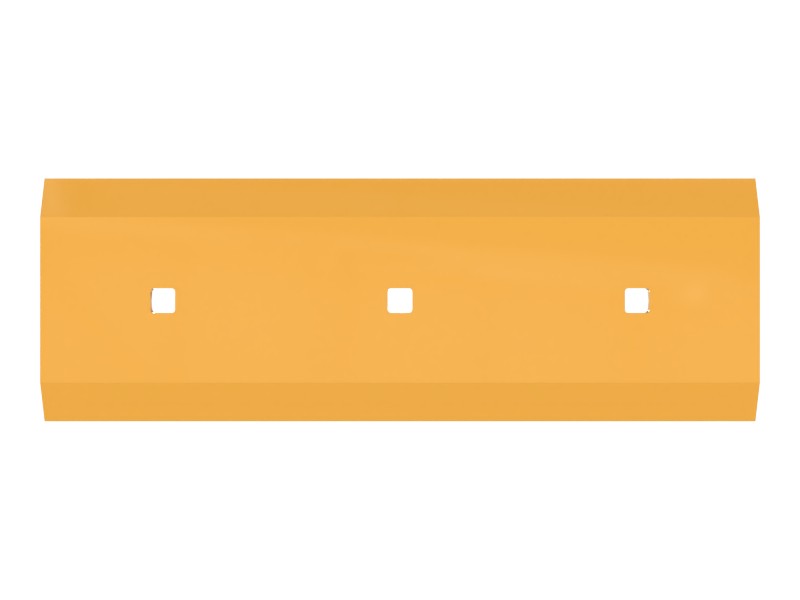

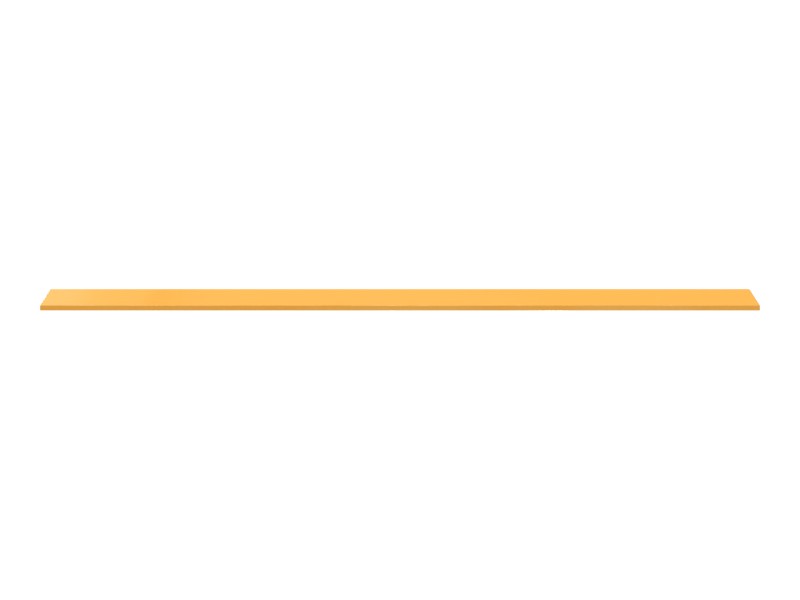

1U-1464 Bucket Cutting Edge
Cutting Edge 25 mm
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
Cat® bolt-on cutting edges offer unmatched manufacturing precision to protect the bucket edge from damage. Our ground engaging tools (G.E.T) are designed around the inherent characteristics of your Cat equipment to deliver consistent, superior protection.
Cat bolt-on cutting edges offer moderate impact resistance and can be used in a wide variety of applications, greatly increasing equipment versatility. They reduce the time needed to replace cutting edges, increase bucket capacity, and reduce downtime by maintaining long wear life.
Our cutting edges are durable and cast from steel that holds its hardness and offers long wear life, so your machine delivers the performance you need. Always choose Genuine Cat bucket protection to protect your investment.
Features
- Low to moderate impact
- Maintains a smooth ground surface
Applications
- Stockpiling, rehandling, digging, and stockpile loading
Specifications
| End 1 Hole Offset | 139.5 mm (5.492 in) |
|---|---|
| Attachment Method | Bolt-On |
| Cutting Edge Shape | Continuous |
| Hole Size | 1-in Plow Bolt (28 mm square) |
| Hole Spacing | 269.9 mm (10.626 in) |
| End 2 Hole Spacing | 269.9 mm (10.626 in) |
| Number of Holes | 3 |
| End 2 Hole Offset | 139.5 mm (5.492 in) |
| Width | 280 mm (11.024 in) |
| End 1 Hole Spacing | 269.9 mm (10.626 in) |
| End 1 Shape | Straight |
| End 2 Shape | Straight |
| Thickness | 25 mm (0.984 in) |
| Cutting Edge Length | 818.8 mm (32.236 in) |
| Position | Center |
| Wear or Durability | Standard |
Compatible Equipment
- Excavators: 323, 320
- Wheel Loaders: 950, 928HZ
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
