Description

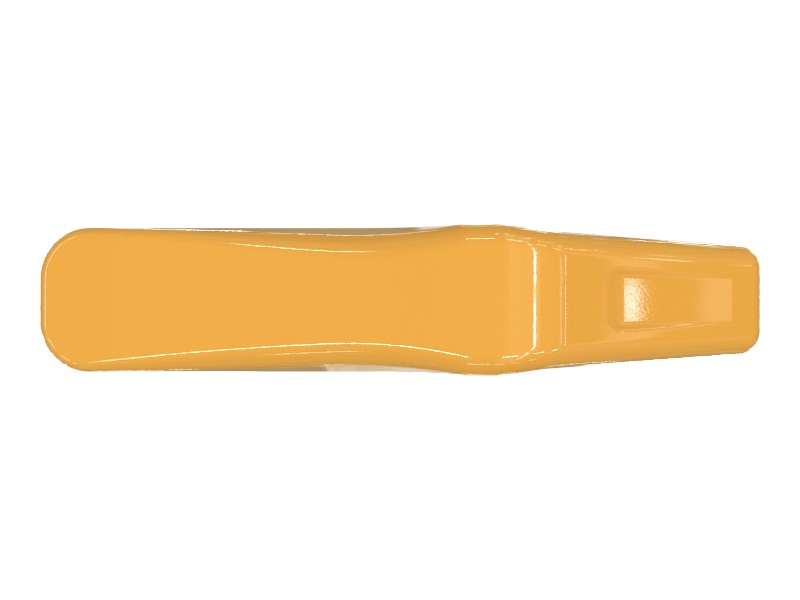

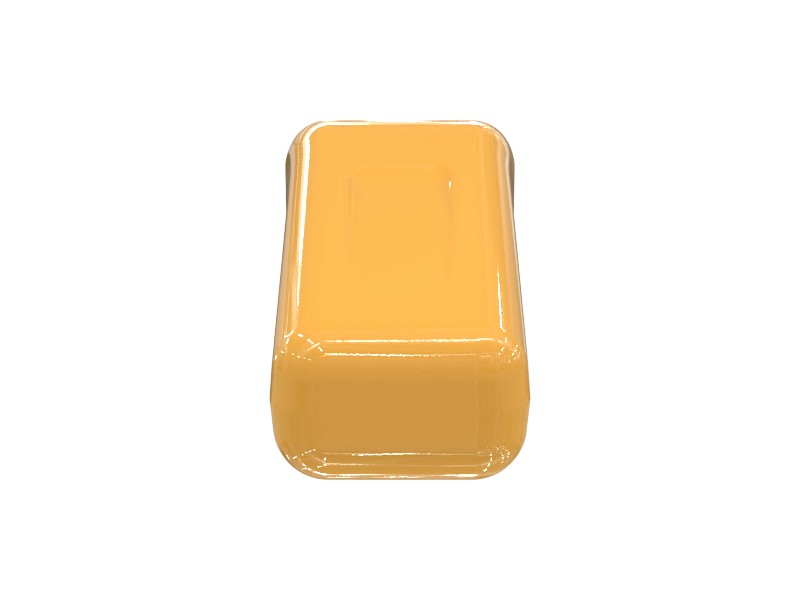

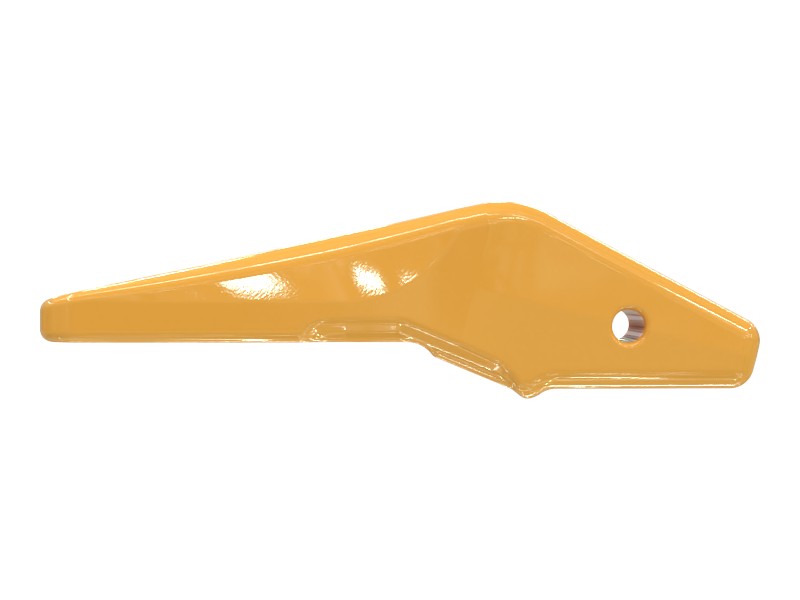

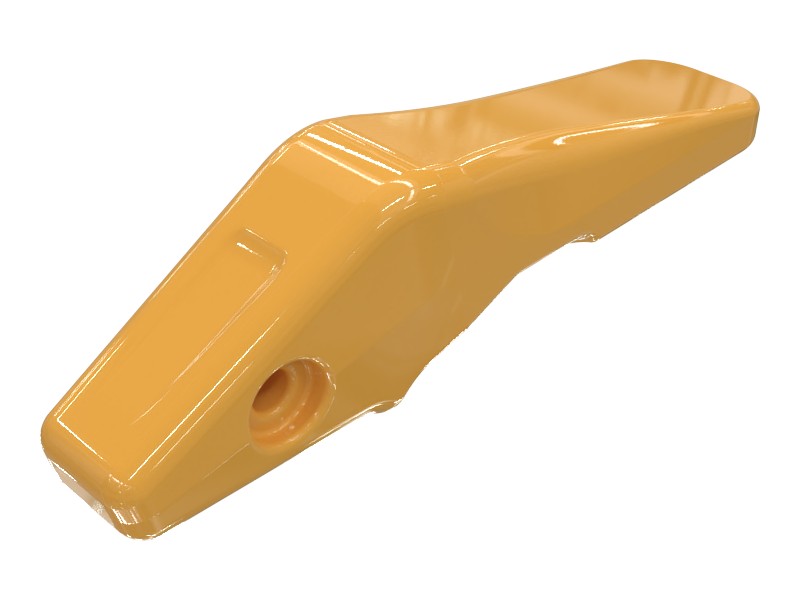

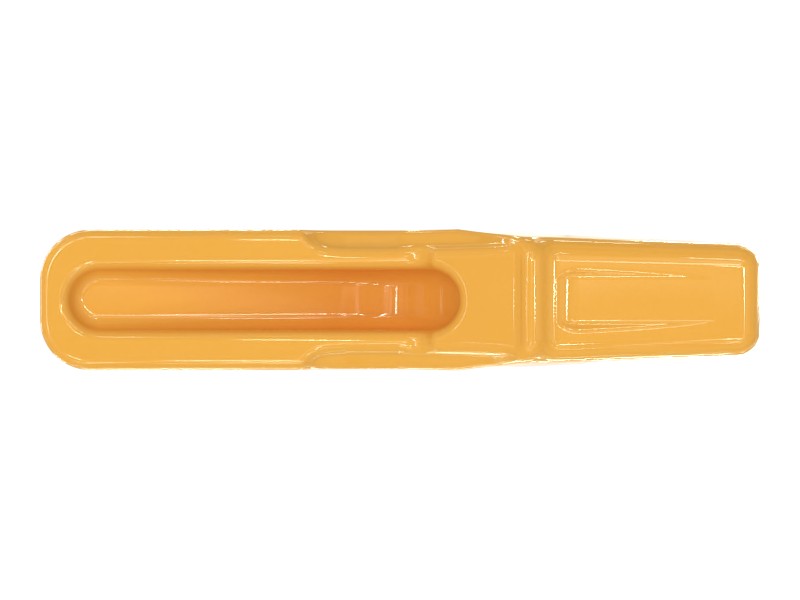

Cat® J Series adapters feature unmatched manufacturing precision to protect your machine's bucket from damage. Our Ground Engaging Tools (GET) are designed around the inherent characteristics of your Cat equipment to provide consistently excellent protection.
Compared with traditional two-strap systems, the larger adapter and optional cover provide greater durability and better wear protection.
Our adapters are durable and cast from steel that retains its hardness for a long time, so your machine delivers the performance you need. Always choose Genuine Cat Ground Engaging Tools to protect your investment.
Features
- J300 flush-mount center side pin adapter fits a 36 mm base edge with a 22.5 degree bevel angle
Applications
- Wheel Loader Buckets
Specifications
| Bevel Angle | 22.5 |
|---|---|
| Width | 70 mm (2.756 in) |
| Number of Holes | 0 |
| Corner Stop Angle | 0 |
| Attachment Method | Weld-On |
| Overall Length | 355 mm (13.976 in) |
| Bottom Bar Length | 0 mm (0 in) |
| Hole Spacing | 0 mm |
| Base Edge Thickness Grade | 25/32/36 |
| Type | Flushmount |
| Size | J300 |
| Series | J Series |
| Attachments | Weld-On |
| Wear Material | Standard Optional |
| Machine Model | Loader |
| Adapter Size | J300 |
| Wear or Durability | Standard |
Compatible Equipment
- Track Loaders: 963
- Wheel Loaders: 962G, 950G, 950
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
