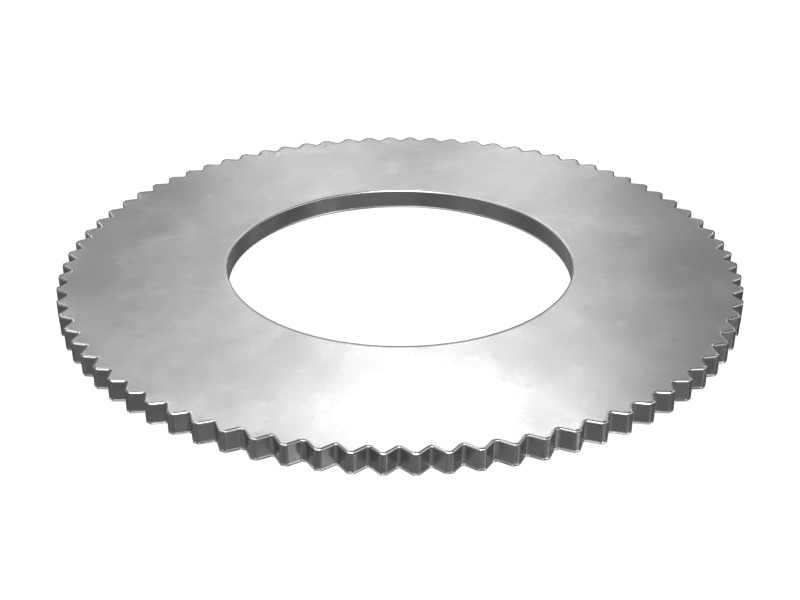

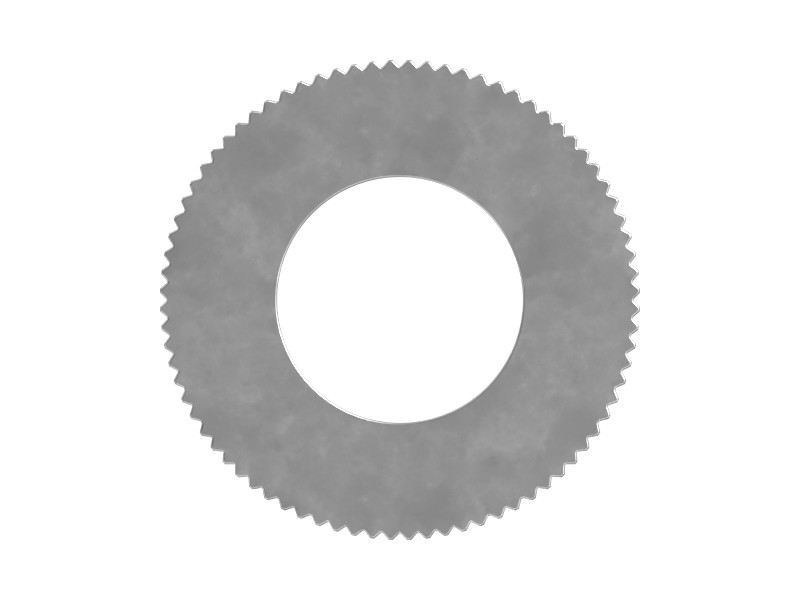

1T-1589 67 mm ID Thrust Race
Cat® 67 mm ID Steel Needle Roller Bearing Thrust Race Used in Torque Converter
Description
Service part for supporting the thrust load of rotating components of the torque converter assembly.
Features
- Material: Steel
- External Spline: 81 Teeth
- Outside Diameter: 130.3 mm (5.13 in)
- Inside Diameter: 67 mm (2.64 in)

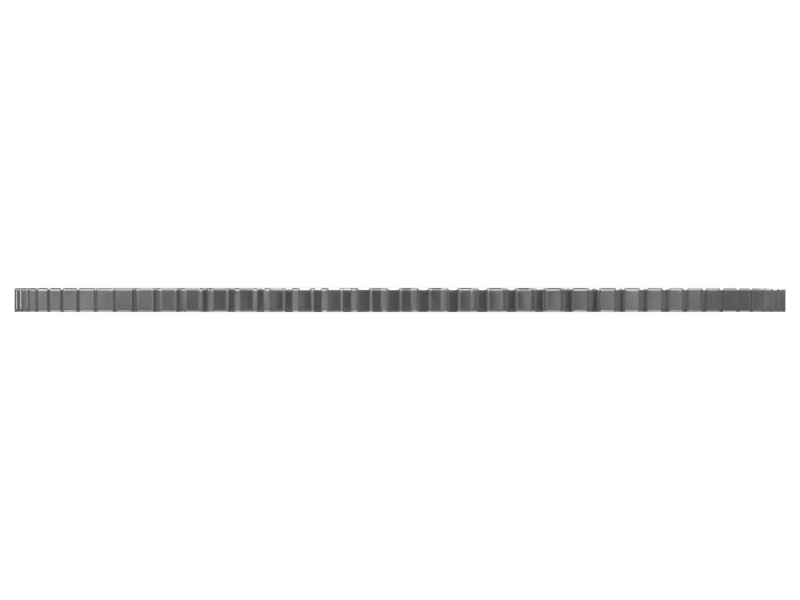

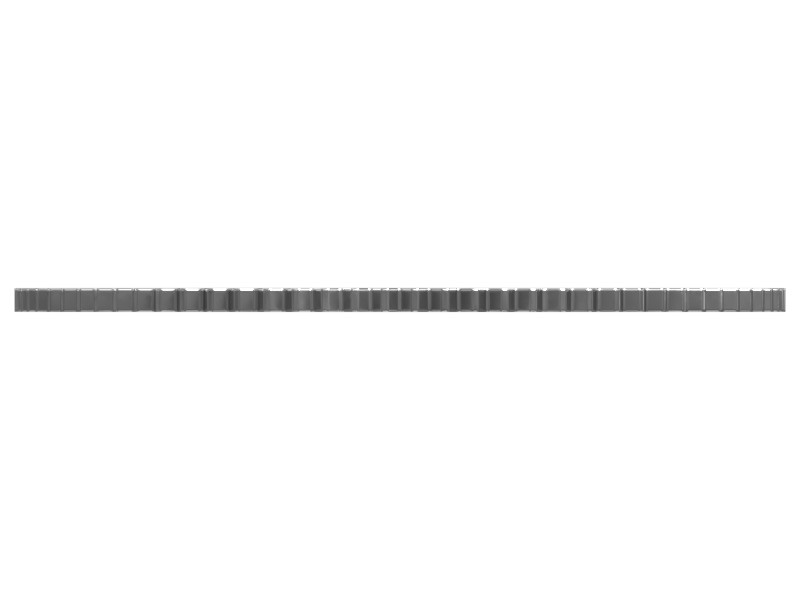

- Thickness: 3.96 mm (0.16 in)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Inside Diameter | 67 mm (2.64 in) |
|---|---|
| Material | Steel |
| Material Description | Steel |
| Outside Diameter | 130 mm (5.13 in) |
| Thickness | 4 mm (0.16 in) |
| Gasket Type | Thrust |
Compatible Equipment
- Generator Sets: C9
- Cold Planers: PL87, PL83
- Engines: C15, C13, C11
- Dozers: D8T, D8R, D8
- Excavators: 637E, 3508B
- Off-Highway Trucks: 725C2, 725, 730, 735
- Asphalt Pavers: AD30
Additional information
| Machine Model | 3508B, 637E, 725, 725C2, 730, 735, AD30, C11, C13, C15, C9, D8, D8R, D8T, PL83, PL87 |
|---|---|
| Equipment Type | Excavators, Dozers, Off-Highway Trucks, Asphalt Pavers, Cold Planers, Engines, Generator Sets |
| Part Source | Genuine OEM |
