Description

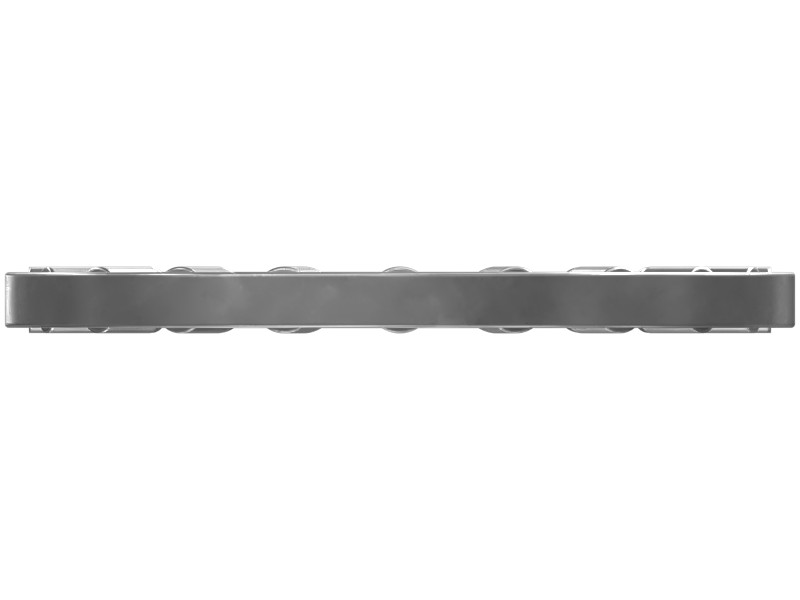

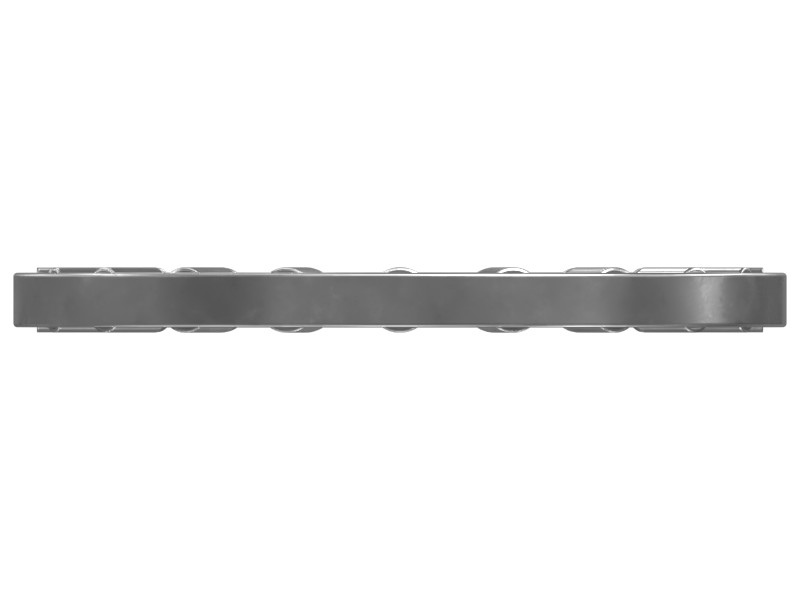

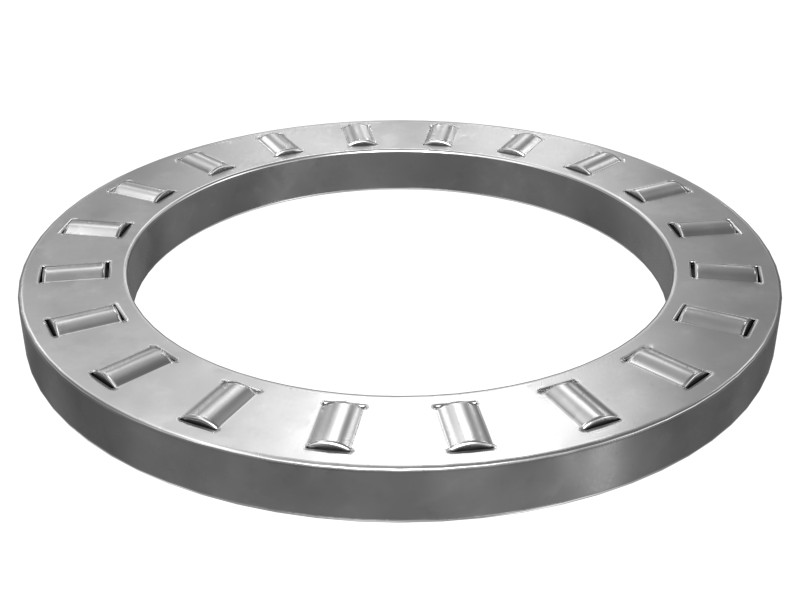

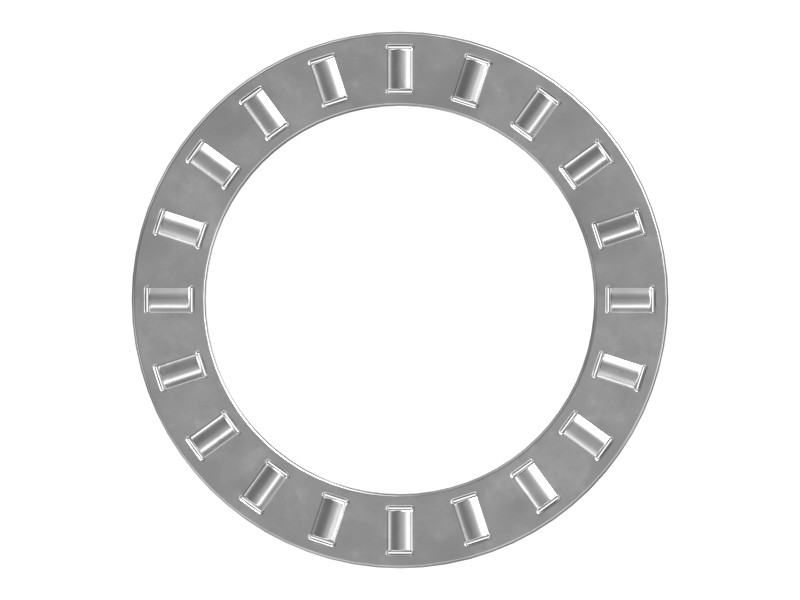

The Cat thrust needle roller and cage assembly can withstand heavy axial loads and operate smoothly at high speeds. Thrust needle roller and cage assemblies are compact and high performing.
Features
- Outside Diameter: 114.3 mm (4.500 in)
- Inside Diameter: 83.18 mm (3.2748 in)
- Height: 9.575 mm (0.375 in)
- Withstands high axial loads.
- Supports high rotational speeds.
- Requires minimal installation space.
- Needle rollers are quenched and tempered to ensure the longest bearing life.
- Easy to install.
Applications
Typical applications for thrust needle and cage assemblies include planetary gears, constant-mesh gears, idlers, and linkages. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Alloy Steel |
|---|---|
| Outside Diameter | 114.3 mm (4.500 in) |
| Inside Diameter | 83.18 mm (3.2748 in) |
| Height | 9.575 mm (0.375 in) |
Compatible Equipment
- Generator Sets: C9
- Cold Planers: PL87, PL83
- Engines: C15, C13, C11
- Dozers: D8, D6T, D5H, D8T, D8R, D7
- Excavators: 637E, 637G, 3508B
- Wheel Loaders: 986K, 980M
- Off-Highway Trucks: 735, 725C2, 730, 725
- Asphalt Pavers: AD30
Additional information
| Machine Model | 3508B, 637E, 637G, 725, 725C2, 730, 735, 980M, 986K, AD30, C11, C13, C15, C9, D5H, D6T, D7, D8, D8R, D8T, PL83, PL87 |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Dozers, Off-Highway Trucks, Asphalt Pavers, Cold Planers, Engines, Generator Sets |
| Part Source | Genuine OEM |
