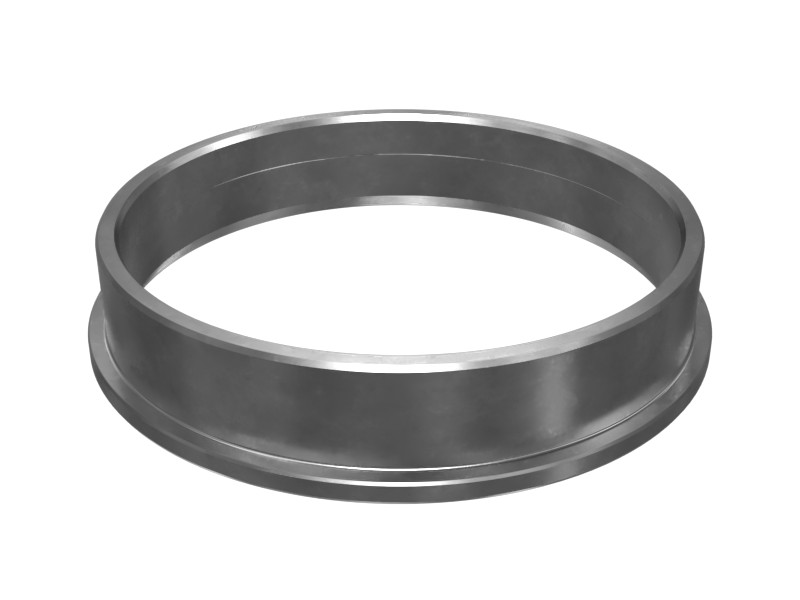

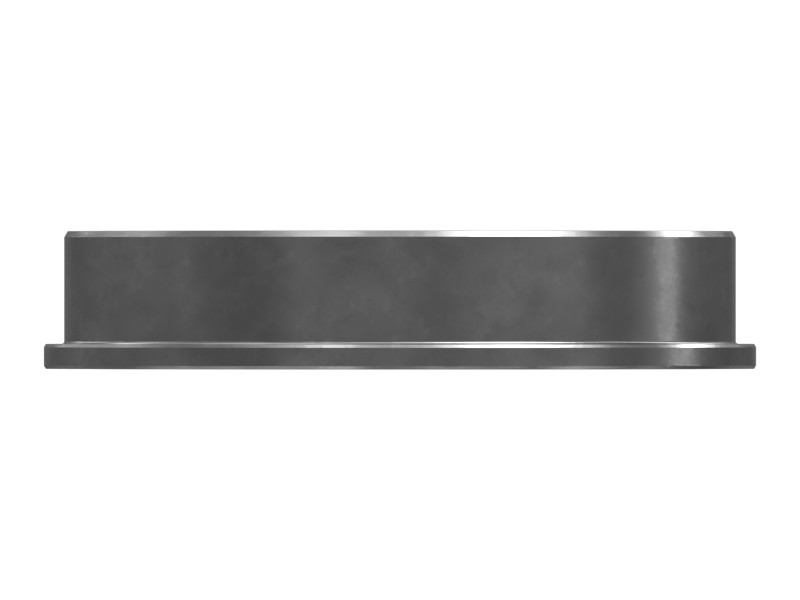

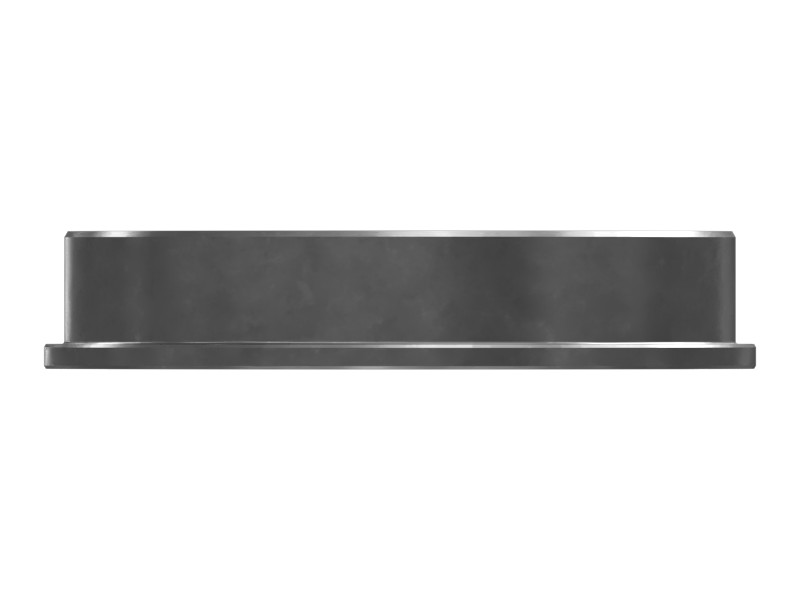

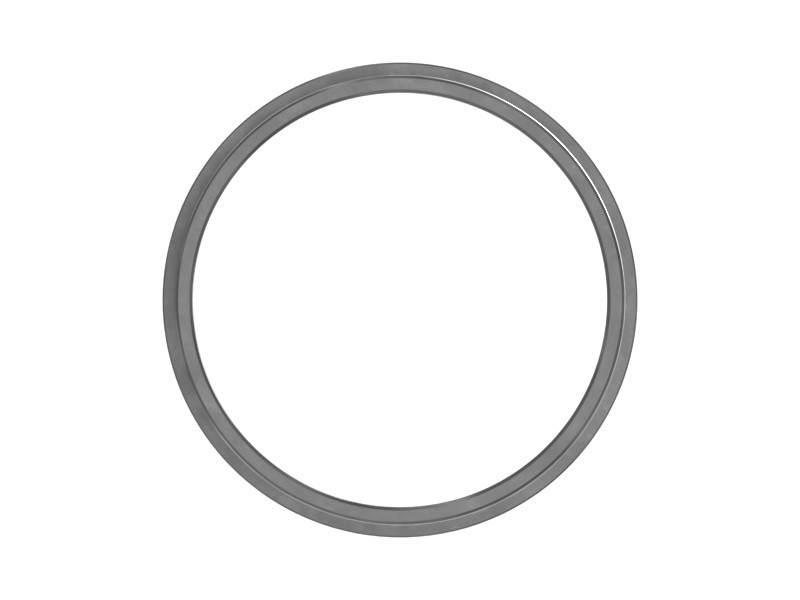

1T-1247 171.45 mm OD Wear Sleeve
Cat® 171.45 mm OD 35.05 mm Long Torque Converter Impeller Sleeve Bearing
Description
Cat® sleeve bearings and bushings support rotating, oscillating and linear motion between machine systems. These bearings may include lubrication features such as internal and external grooves and cross holes for continuous, effective lubrication of components.
Specifications
| Ferrule Inside Diameter | 158.78 mm (6.251 in) |
|---|---|
| Ferrule Outside Diameter | 171.45 mm (6.75 in) |
| Flange Thickness | 6 mm (0.24 in) |
| Unique Features | No |
| Type | Flanged Sleeve |
| Material | Cast Iron |
| Inside Diameter | 159 mm (6.25 in) |
| Outside Diameter | 171 mm (6.75 in) |
| Overall Length | 35 mm (1.38 in) |
| Flange Diameter | 182 mm (7.16 in) |
| Internal Groove | Yes |
| External Groove | None |
| Cross Hole | None |
Compatible Equipment
- Generator Sets: C4.4, 3512E, 3512B, 3516C
- Cold Planers: TH55-E70
- Engines: C32, C27
- Excavators: 3512C, 3516E
- Off-Highway Trucks: 777, 785, 785D, 777D, 793, 793F, 789D, 777E, 773, 793D, 789, 775G
