Description

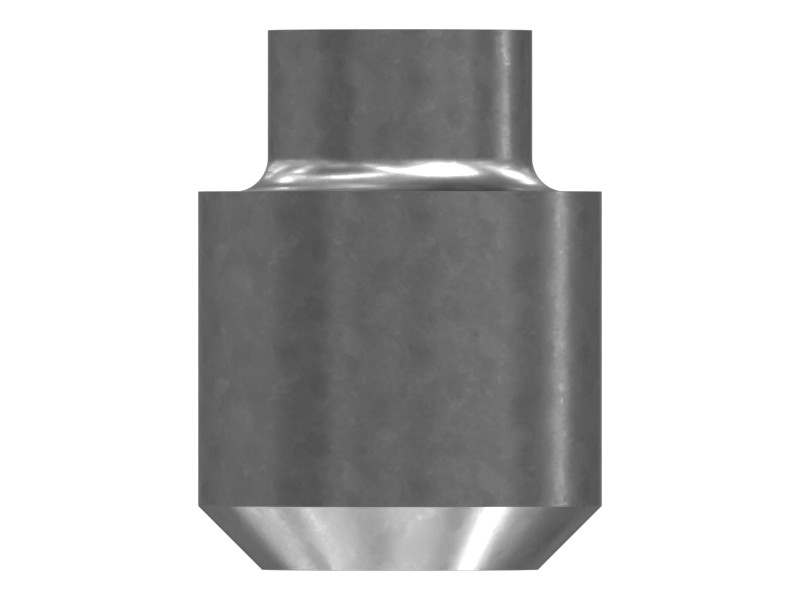

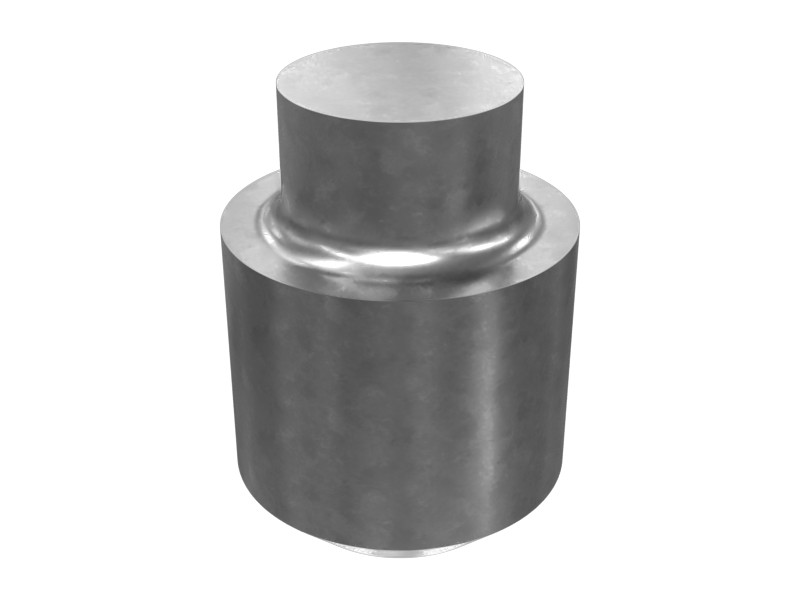

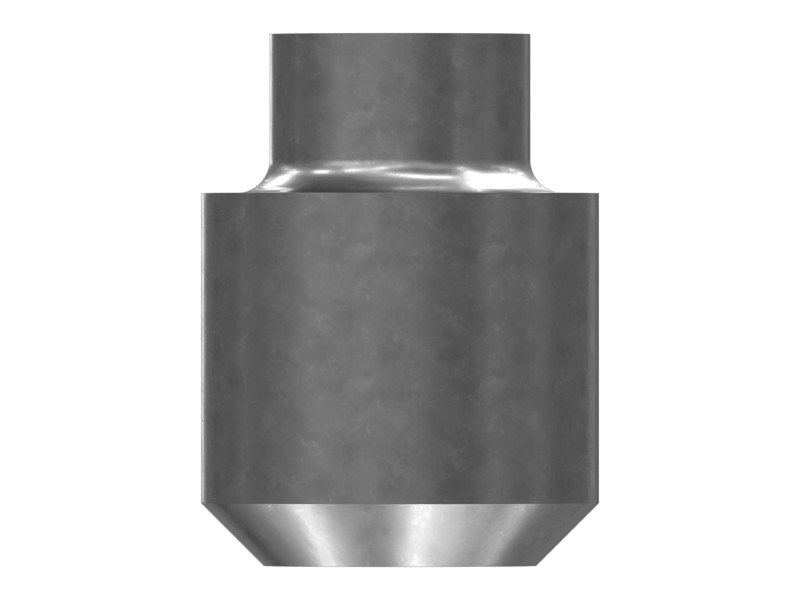

The torque converter thrust race lock pin is a small pin used to secure the thrust race in the torque converter. The thrust race lock pin keeps the thrust race in the correct position so it does not move or rotate during operation. It prevents any axial movement of the thrust race, keeps torque converter components properly aligned and prevents unwanted slippage or loss of torque transfer.
Features
- Provides efficient power transmission and smooth operation.
- Able to withstand high torque and rotational forces.
Applications
The torque converter thrust race lock pin is used to secure the thrust race, a key component in the torque converter.
Specifications
| Material | Carbon Steel |
|---|---|
| Length | 12.7 mm (0.5 in) |
| Outside Diameter | 9.5 mm |
| Outside Diameter (OD) – 2 | 6.22 mm |
Compatible Equipment
- Track Loaders: 834H
- Compactors: 834K
- Dozers: D10R
- Wheel Loaders: 834, 988K, 988G, 988H, 988F, 836
- Off-Highway Trucks: 773E, 773F, 772G, 771D, 740B, 770G, 740, 773D, 735, 773
- Asphalt Pavers: AD45, AD63
