Description

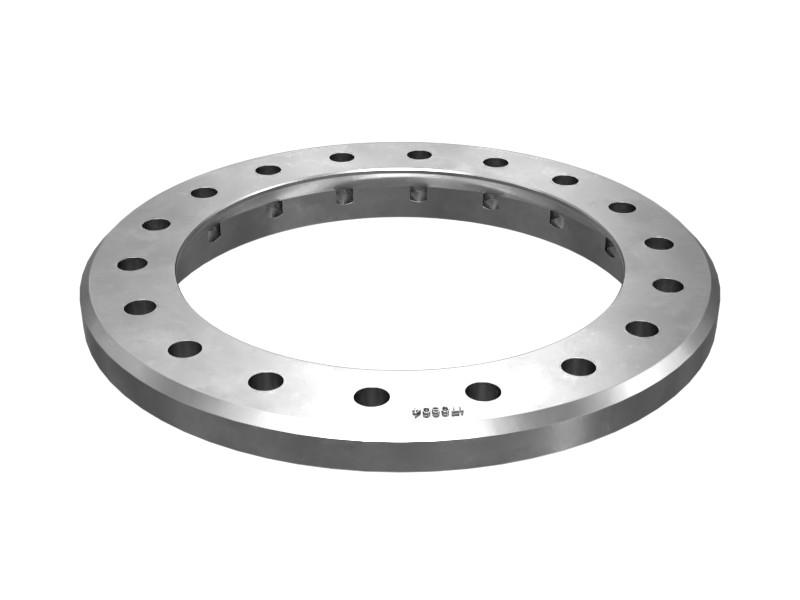

The clamp ring secures and locates the turbine and stator to the hub in the torque converter system. The torque converter multiplies engine torque hydraulically and mechanically and transmits it to the transmission.
Features
- Material: Hardened Steel
- Outside Diameter: 232.15 mm (9.139 in)
- Inside Diameter: 163.9 mm (6.452 in)
- Thickness: 31.2 mm (1.228 in)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material Description | Hardened Steel |
|---|---|
| Outside Diameter | 232.15 mm (9.139 in) |
| Inside Diameter | 163.9 mm (6.452 in) |
| Thickness | 31.2 mm |
| Height | 1.228 in |
Compatible Equipment
- Track Loaders: 992
- Dozers: D10R
- Excavators: 657G
- Wheel Loaders: 834, 988F
- Off-Highway Trucks: 771D, 772G, 770G, 773E, 773D, 740, 773F, 735, 740B, 773
- Asphalt Pavers: AD45, AD63
Additional information
| Machine Model | 657G, 735, 740, 740B, 770G, 771D, 772G, 773, 773D, 773E, 773F, 834, 988F, 992, AD45, AD63, D10R |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Dozers, Off-Highway Trucks, Asphalt Pavers |
| Part Source | Genuine OEM |
