Description

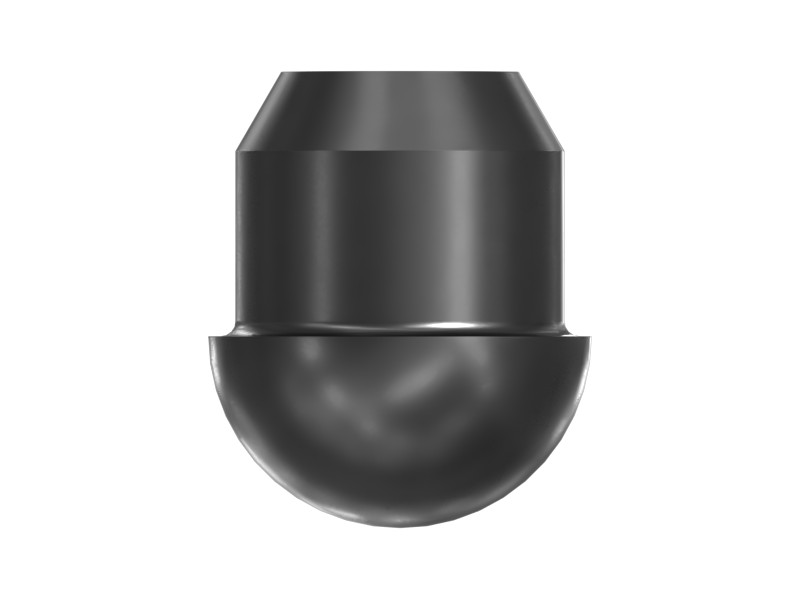

The bearing locating pin is a part inserted into the torque converter housing along with the bearing, and the bearing is placed on the pin after insertion. The pin serves as a guide for the bearing and is typically made of high-strength steel to withstand the forces and stresses generated by the bearing.
Features
- Rockwell hardness scale value of C44 – 50, indicating excellent resistance to deformation
- One end of the pin has a 30-degree chamfer to reduce the risk of the pin jamming or being damaged in the bore.
Applications
The bearing locating pin is used to ensure proper alignment and positioning of the bearing.
Specifications
| Head Height | 7.37 mm (0.29 in) |
|---|---|
| Length | 5.08 mm (0.2 in) |
| Material | Alloy Mixed: Metal |
| Pin Diameter | 6.32 mm (0.25 in) |
| Weight | 0.004 kg (0.01 lb) |
Compatible Equipment
- Track Loaders: 992
- Cold Planers: PL72
- Dozers: D7H, D7R, D6R, D6T, D8N
- Excavators: 657G
- Wheel Loaders: 834
Additional information
| Machine Model | |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Dozers, Cold Planers |
| Part Source | Genuine OEM |
