Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating washers and nuts to produce consistent, high clamping force. You can rely on Cat fasteners to help you build, maintain or rebuild – for most machine and shop applications around the world.
Specifications

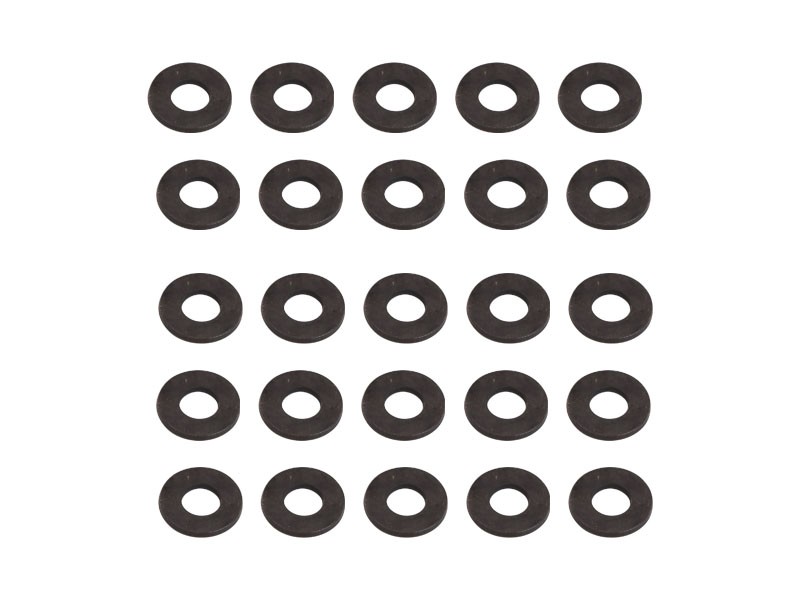

| Inside Diameter | 8.4 mm (0.331 in) |
|---|---|
| Outside Diameter | 19 mm (0.748 in) |
| Gasket Type | Flat Washer |
| Fits Bolt Size | M8 mm (5/16 in) |
| Coating | Zinc phosphate + oil provides corrosion protection up to the point of assembly (painting is recommended for exterior applications). Salt spray resistance: 72 hours with no red rust. Coating color – dark gray to black. |
| Thickness | 1.83 mm (0.072 in) |
Compatible Equipment
- Motor Graders: 140H, 12H, 12K, 120H, 140K, 160K
- Cold Planers: PL87, PL83
- Compactors: 814, 815, 816
- Dozers: D7R II, D7R, D6M, D6R II, D6N, D7G, D9R, D8T, D8R, D5M, D5H, D6R, D6T LGP, D4E, D7H, D8L, D5N, D6R III, D6G2 XL, D6G2 LGP, D9N, D6T, D8N, D6G, D11T, D10N, D10R, D11R, D10T, D7G2, D9T, D9L
- Excavators: 637G, 637E, 637K
- Wheel Loaders: 980M
- Off-Highway Trucks: 777
- Asphalt Pavers: AD30
- Skid Steer Loaders: 24
Additional information
| Machine Model | 120H, 12H, 12K, 140H, 140K, 160K, 24, 637E, 637G, 637K, 777, 814, 815, 816, 980M, AD30, D10N, D10R, D10T, D11R, D11T, D4E, D5H, D5M, D5N, D6G, D6G2 LGP, D6G2 XL, D6M, D6N, D6R, D6R II, D6R III, D6T, D6T LGP, D7G, D7G2, D7H, D7R, D7R II, D8L, D8N, D8R, D8T, D9L, D9N, D9R, D9T, PL83, PL87 |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Skid Steer Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Asphalt Pavers, Cold Planers |
| Part Source | Genuine OEM |
