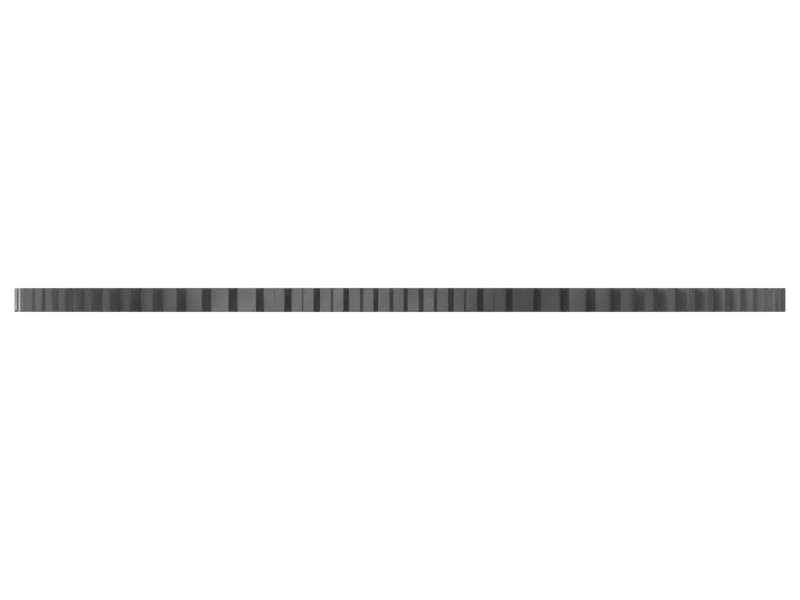

1T-0657 3.96 mm Thick Freewheel Side Plate
Cat® 3.96 mm Thick Freewheel Side Plate for Torque Converters in Powertrains
Description
Cat freewheel plates distribute load between the torque converter freewheel cam and the thrust bearing.
Features
- External Spline: 81 Teeth
- Hardened steel
Applications
Cat freewheel bearing plates are for use in Cat torque converters. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Inside Diameter | 96.8 mm (3.81 in) |
|---|---|
| Thickness | 3.96 mm (0.16 in) |
| Material Description | Hardened Steel |
| Outside Diameter | 130.3 mm (5.13 in) |
| Material | Carbon Steel |
Compatible Equipment
- Generator Sets: C9
- Compactors: C9.3B, C13B
- Engines: C13, C11, C15, C18
- Dozers: D8, D8T, D6T, D7
- Excavators: 621G, 621H, 621K, 637E, 657G, 637G, 637K
- Wheel Loaders: 980M
- Off-Highway Trucks: 735, 730, 725
