Description

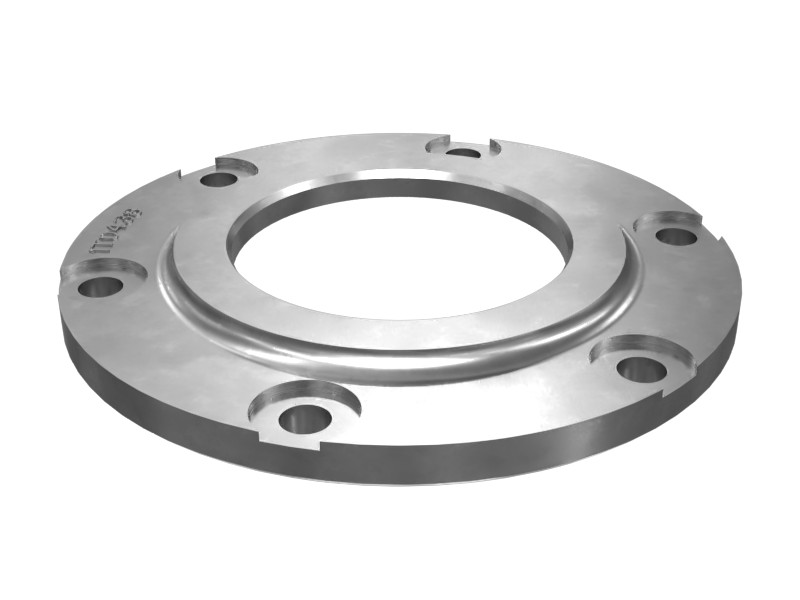

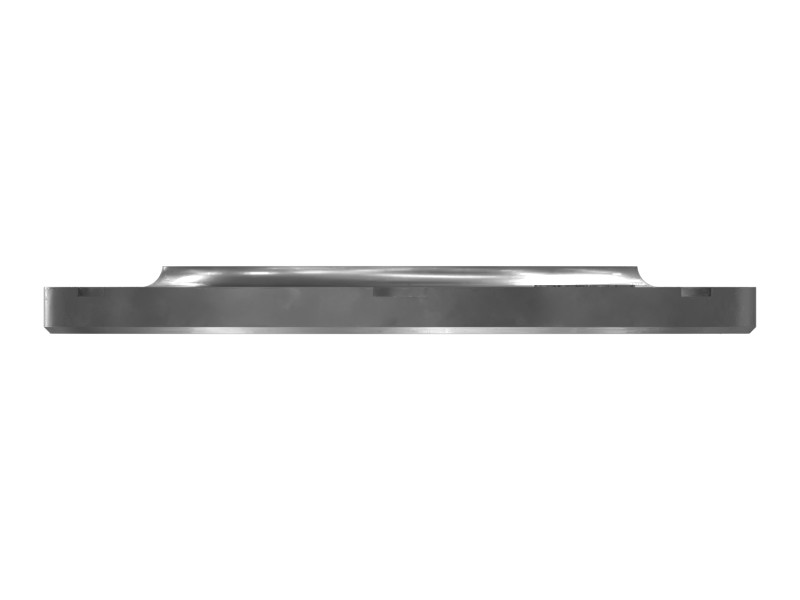

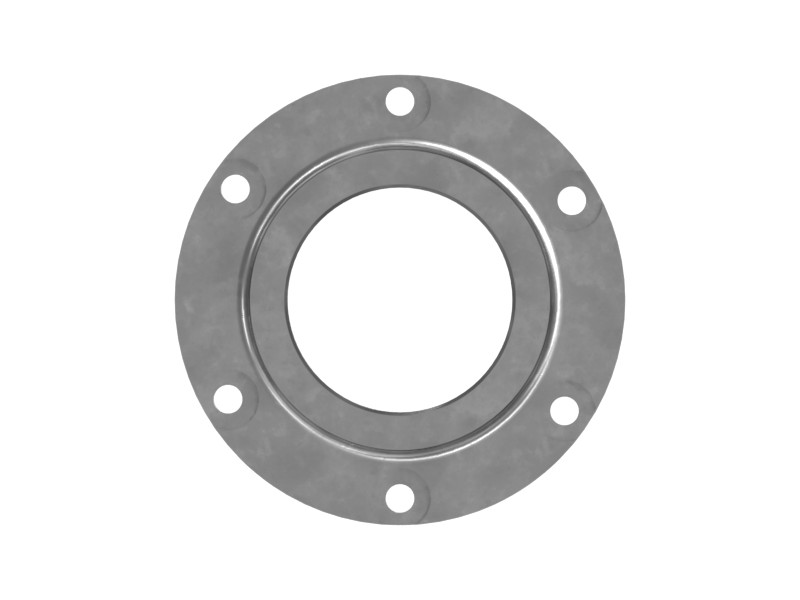

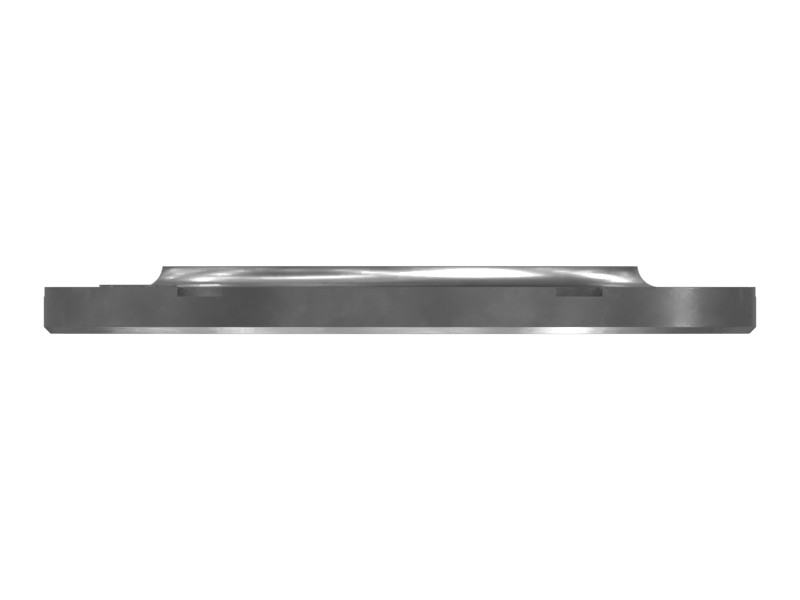

Secures the bearing and flange group to the housing of the torque converter assembly.
Features
- Material: Cast iron
- Outside Diameter: 161.92 mm (6.374 in)
- Inside Diameter: 80.988 mm (3.188 in)
- Height: 15.24 mm (0.600 in)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Gray (Flake) Iron |
|---|---|
| Material Description | Cast Iron |
| Outside Diameter | 161.92 mm (6.374 in) |
| Inside Diameter | 80.988 mm (3.188 in) |
| Height | 15.24 mm (0.6 in) |
Compatible Equipment
- Cold Planers: PL87, PL72
- Dozers: D6R II, D7H, D6T, D6R III, D7G2, D6R, D8N, D7G, D7R II, D6T LGP, D7R, D6R XL, D6G2 XL, D8R, D6G2 LGP, D6G, D6R LGP
