1R-0750 High Efficiency Secondary Fuel Filter
Cat® part 1R-0750 High Efficiency secondary fuel filters remove fine contaminants, protecting the equipment's fuel system and extending service life.
Description
Cat® High Efficiency fuel filters are designed to remove the fine contaminants that cause the most damage. All fuel filters remove some abrasive particles, but many competitive filters do not effectively capture and hold the particles that do the most damage to sensitive fuel system components. Caterpillar testing proves that Cat® fuel filters provide superior protection. See test results
Every Cat® machine performs better with Genuine Cat® parts. Our filters not only improve performance but also protect critical components, extending service life and increasing resale value. For additional protection, use High Efficiency fuel filters in place of Standard Efficiency elements.
Cat® fuel filters feature a rugged one-piece canister design and a non-metallic center tube that is cleaner and stronger than metal, maximizing cleanliness and reducing potential leaks.
Our filters are designed specifically for your Cat® machines to protect your fuel system and your bottom line.
Attributes

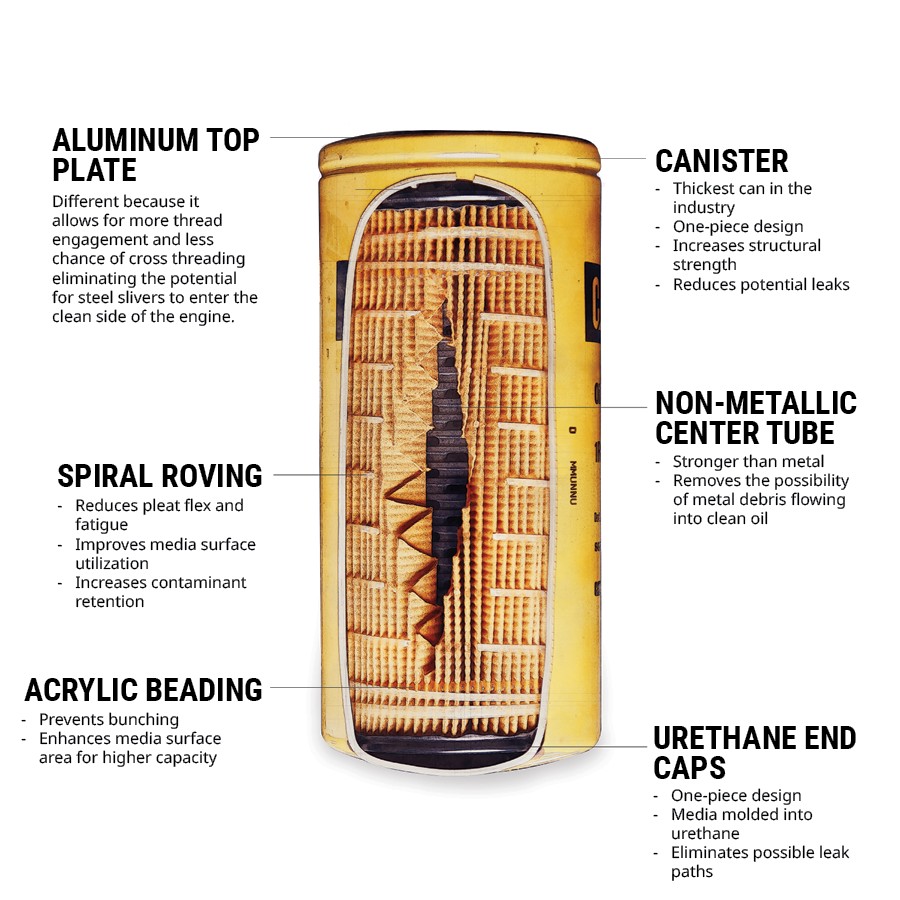

Unique filter media provides superior protection
Acrylic beads prevent bunching
Spiral roving provides greater pleat stability and maximum dirt-holding capacity
Nylon center tube prevents metal contamination
Molded end caps prevent leaks
Specifications
| Efficiency Rating | Advanced Efficiency |
|---|---|
| Length | 181.5 mm (7.146 in) |
| Material | Other Mixed: Metal-Nonmetal |
| Efficiency Category | Other |
| Diameter | 85.7 mm (3.374 in) |
| Flow Direction | Out-to-In |
| Filter Type | Spin-On |
Compatible Equipment
- Motor Graders: 140H, 12H, 140G
- Generator Sets: 3516C, C7.1, C9, C4.4
- Track Loaders: 816F
- Engines: C12
- Dozers: D6R, D7H, D7G, D7R, D6G2 XL, D6G2 LGP, D7G2, D5H, D6G
- Excavators: 330B, 320D FM, 637E, 637G, 3516E, 330 L, 3516B, 320D
- Wheel Loaders: 972G, 966F, R1300G
- Off-Highway Trucks: 789, 785, 789D, 785D, 777D, 793D
Additional information
| Machine Model | 12H, 140G, 140H, 320D, 320D FM, 330 L, 330B, 3516B, 3516C, 3516E, 637E, 637G, 777D, 785, 785D, 789, 789D, 793D, 816F, 966F, 972G, C12, C4.4, C7.1, C9, D5H, D6G, D6G2 LGP, D6G2 XL, D6R, D7G, D7G2, D7H, D7R, R1300G |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Engines, Generator Sets |
| Part Source | Genuine OEM |
