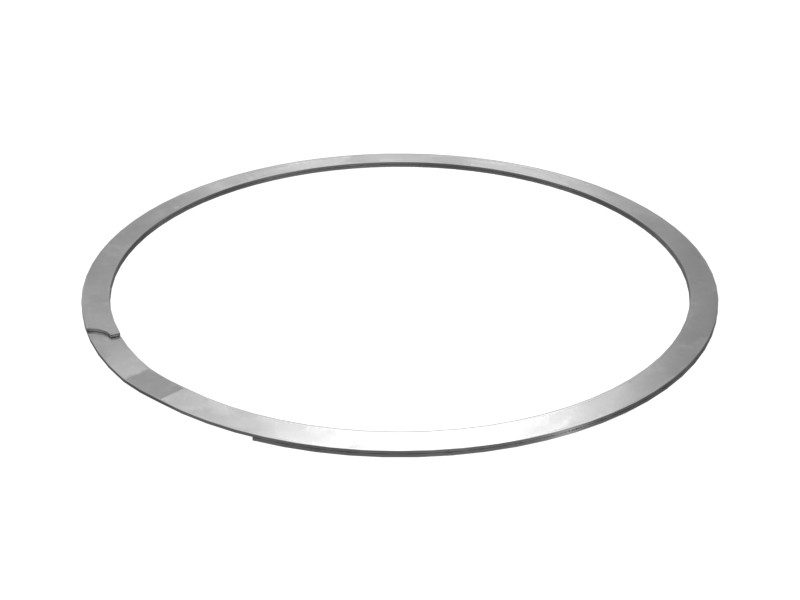

1P-9254 229.64 mm OD Internal Retaining Ring
Cat® carbon steel external retaining ring for machined grooves
Description
Cat® retaining rings install in a machined groove in a housing/bore (internal) or on a shaft (external), providing high strength and long service life in a wide range of applications.
Features
- Material: Steel
- Type: Spiral
- Free Diameter: 229.64 mm (9.04 in)
- Housing Diameter: 222.25 mm (8.75 in)
- Groove Diameter: 227.89 mm (8.97 in)
- Groove Width: 2.39 mm (0.09 in)
- Retaining rings meet or even exceed ANSI, ASTM and DIN requirements
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Carbon Steel |
|---|---|
| Material Description | Steel |
| Thickness | 2.18 mm (0.086 in) |
Compatible Equipment
- Dozers: D10T, D10R, D10N, D10T2, D9L, D9T, D9R, D9N, D8L, D4E, D9, D10
- Off-Highway Trucks: 793F
