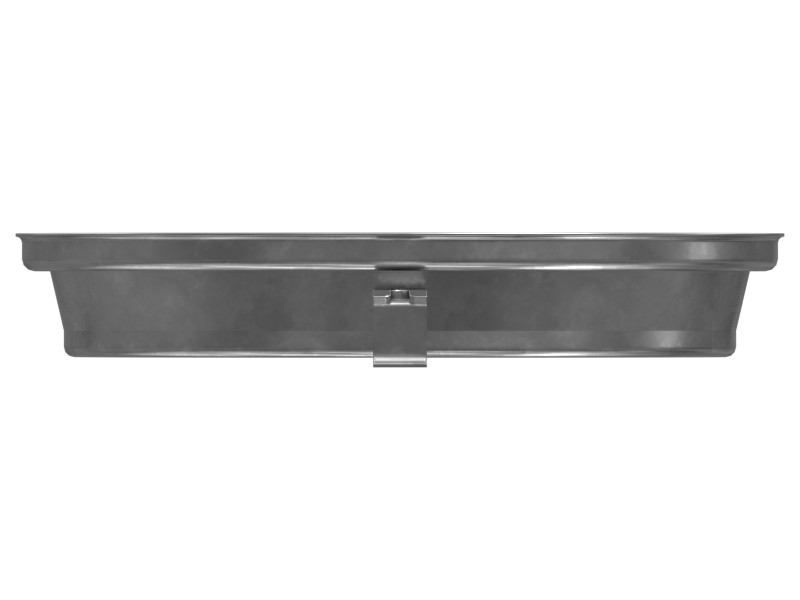

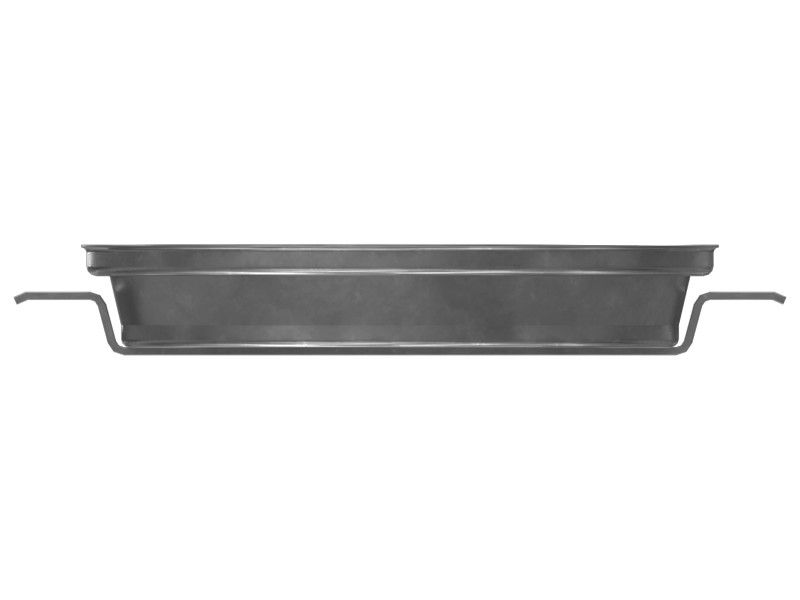

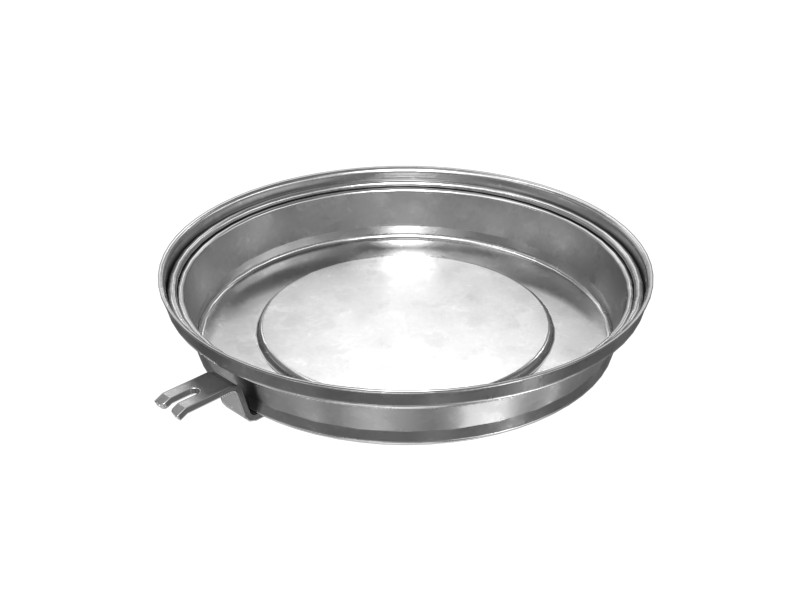

1P-8481 Air Filter Bowl
Cat® air filter cups with gasket remove impurities and contaminants from engine intake air.
Description
The air filter cup provides efficient filtration and protection for the engine. The cup-shaped design allows it to effectively collect accumulated debris, ensuring unrestricted airflow and a continuous supply of clean air to the engine. Its main purpose is to separate larger particles and debris from the air before the intake air reaches the primary air filter element.
Attributes
- Prevents air filter clogging, ensuring only clean air enters the engine
- Helps maintain the proper air-fuel ratio
Applications
The air filter cup acts as a protective barrier and the initial stage of filtration in the air intake, ensuring that harmful particles and contaminants are captured before the air reaches the engine.
Specifications
| Length | 430.3 mm (16.941 in) |
|---|---|
| Width | 357.3 mm (14.067 in) |
| Overall Depth | 59.1 mm (2.327 in) |
| Depth | 59.1 mm (2.327 in) |
| Height | 430.2 mm (16.937 in) |
| Outlet Size | 99999.99 mm (3937.008 in) |
| Type | Round |
| Overall Height | 430.2 mm (16.937 in) |
| Overall Width | 357.3 mm (14.067 in) |
Compatible Equipment
- Dozers: D11N, D10R, D10N, D8R, D8N
- Excavators: 637E
- Wheel Loaders: 836, 992C, 992D
