Description
Cat® bushings are made of high-quality rubber suited to the environment in which the equipment operates. They prevent other parts from making contact with metal, protecting those components from damage (vibration) and from rubbing against surrounding structures (vibration, shock, noise).

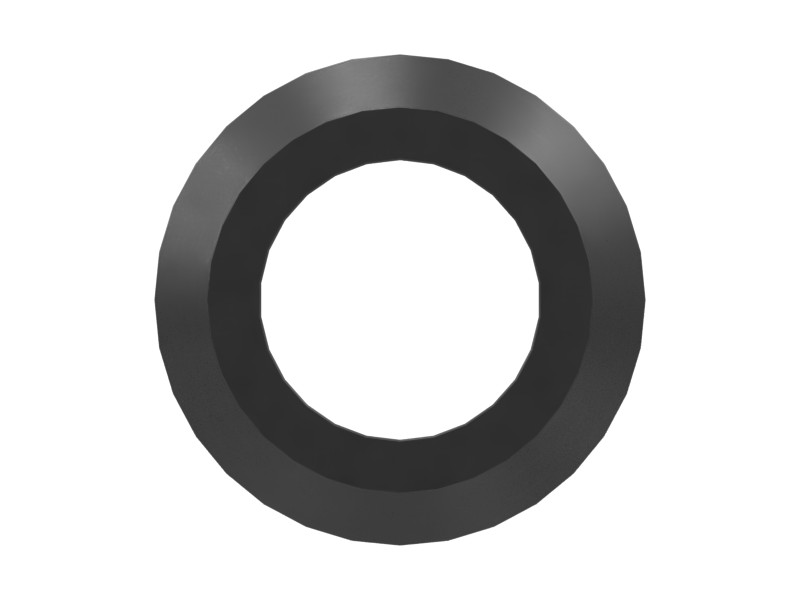

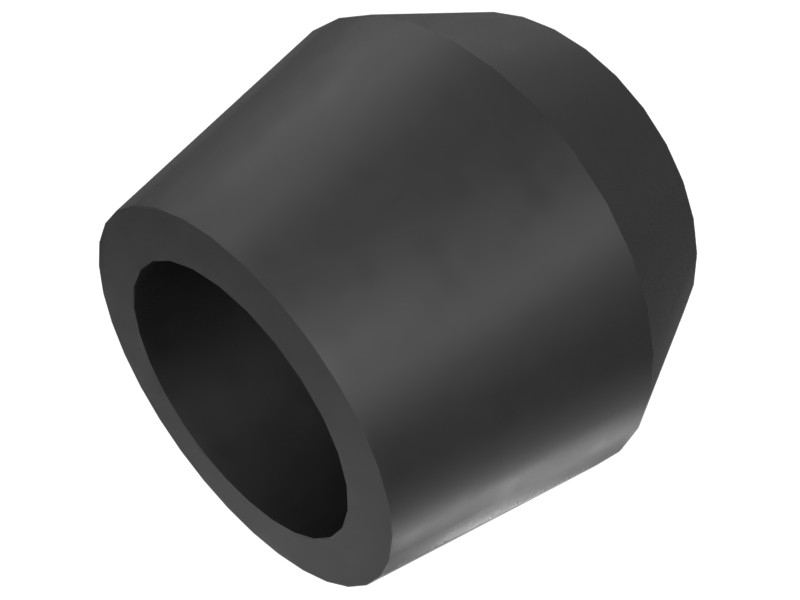

Features: Cat bushings are made of rubber that flares out in the middle and has a center hole, allowing a bolt to hold them in place.
Applications
Cat bushings are used in a variety of Cat system installations, especially light- to medium-duty applications such as hydraulic lines, tanks, fans, and cooler groups.
Specifications
| Material | Chloroprene (CR) Rubber |
|---|---|
| Outside Diameter | 33.2724 mm |
| Overall Length | 26.924 mm |
| Inside Diameter | 25.908 mm |
| Material Description | Rubber |
Compatible Equipment
- Track Loaders: 993, 995, 990K, 834H, 824C, 994K, 992
- Engines: C18
- Excavators: 330D L, 336D2 L, 336D L, 336D2 XE, 325C, 330C, 336D2 GC, 330C L, 330D, 657G, 340D2 L, 340D L, 336D2, 336D
- Wheel Loaders: 992K
