Description
Cat® flange connectors and flange clamps meet the highest standards of quality, reliability and durability. These flange components are manufactured to tight tolerances to ensure leak-free connections. Every Cat flange connector and flange clamp meets or exceeds industry standards for working pressure, cyclic loading and corrosion protection to ensure long-lasting, reliable machine operation.
Features
- Connection component for fluid-carrying tubes and hoses
- Meets or exceeds industry-standard part performance and provides a leak-free connection

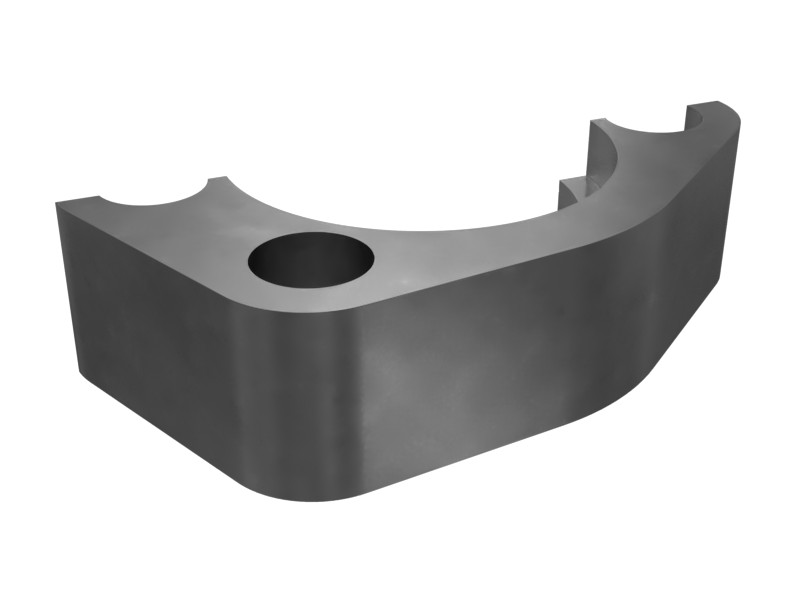

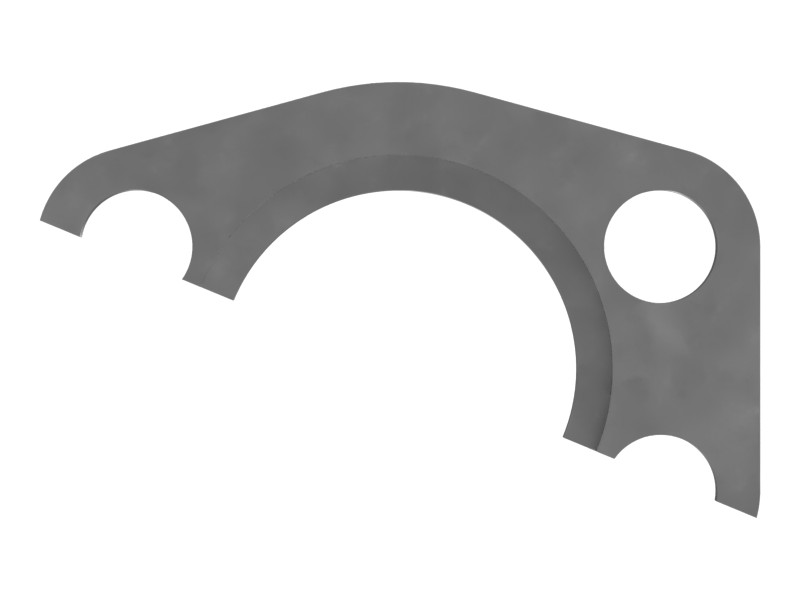

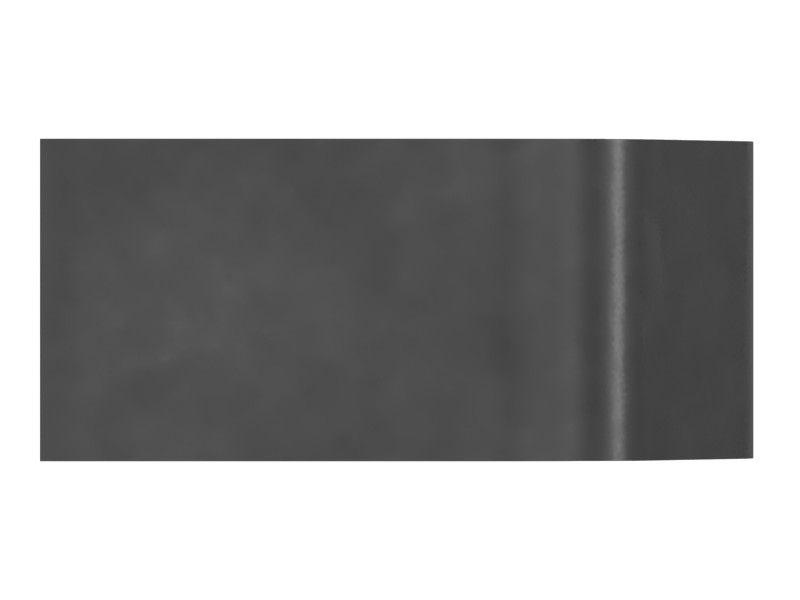

- Images provided are for reference only. Flange component construction may differ slightly from the image shown, but this part is interchangeable with the OEM part.
Applications
Flange connectors and flange clamps are used to connect fluid-carrying hoses and tubes to other system components. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material Description | Plated Steel |
|---|---|
| Material | Carbon Steel |
Compatible Equipment
- Track Loaders: 992, 963, 826K, 824C, 824G, 990K, 816F
- Motor Graders: 16, 120
- Compactors: 824K, 825K, 815, 816, 814
- Wheel Excavators: MD6250
- Dozers: D10T2, D10N, D10, D11R, D10R, D10T, D11T, D7G, D7R II, D8N, D7H, D9R, D8R, D6G2 XL, D7R, D8L, D5H, D6R II, D4E, D6K2, D6N, D6R III, D4, D8T, D9, D6R, D9T, D9N, D8, D6M, D9L, D6T LGP, D6T, D7G2, D11N, D7E, D6G, D6G2 LGP
- Excavators: 313 GC, 313, 312C, 657G, 637K, 621G, 621H, 320D3 GC, 315 GC, 330B, 330 L, 325B L, 311B, 320B, 637G, 637E, 621K, 314C, 315, 312C L, 345B
- Mini Excavators: 307B
- Wheel Loaders: 950, 962G, 836, 966F, 966H, 924HZ, 992C, 988F, 928G, 924GZ, R1700 II, R1700G, 966K, 972H, R1300G, M314, 950G, 834, 928HZ, R2900G, R1700K, R1600H, 926M, 972G, 910, 992D, 938M
- Off-Highway Trucks: 777, 773D, 789, 770G, 785, 772G, 773, 777D, 773E, 773F, 789D, 785D, 775G, 771D, 777E
- Asphalt Pavers: AD30, AD45, AD63
- Skid Steer Loaders: 24
Additional information
| Machine Model | 120, 16, 24, 307B, 311B, 312C, 312C L, 313, 313 GC, 314C, 315, 315 GC, 320B, 320D3 GC, 325B L, 330 L, 330B, 345B, 621G, 621H, 621K, 637E, 637G, 637K, 657G, 770G, 771D, 772G, 773, 773D, 773E, 773F, 775G, 777, 777D, 777E, 785, 785D, 789, 789D, 814, 815, 816, 816F, 824C, 824G, 824K, 825K, 826K, 834, 836, 910, 924GZ, 924HZ, 926M, 928G, 928HZ, 938M, 950, 950G, 962G, 963, 966F, 966H, 966K, 972G, 972H, 988F, 990K, 992, 992C, 992D, AD30, AD45, AD63, D10, D10N, D10R, D10T, D10T2, D11N, D11R, D11T, D4, D4E, D5H, D6G, D6G2 LGP, D6G2 XL, D6K2, D6M, D6N, D6R, D6R II, D6R III, D6T, D6T LGP, D7E, D7G, D7G2, D7H, D7R, D7R II, D8, D8L, D8N, D8R, D8T, D9, D9L, D9N, D9R, D9T, M314, MD6250, R1300G, R1600H, R1700 II, R1700G, R1700K, R2900G |
|---|---|
| Equipment Type | Excavators, Mini Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Asphalt Pavers |
| Part Source | Genuine OEM |
