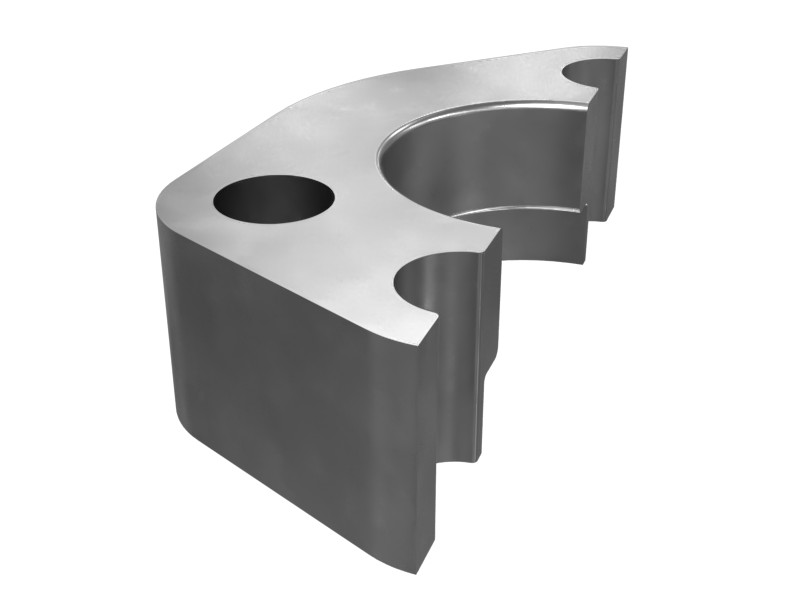

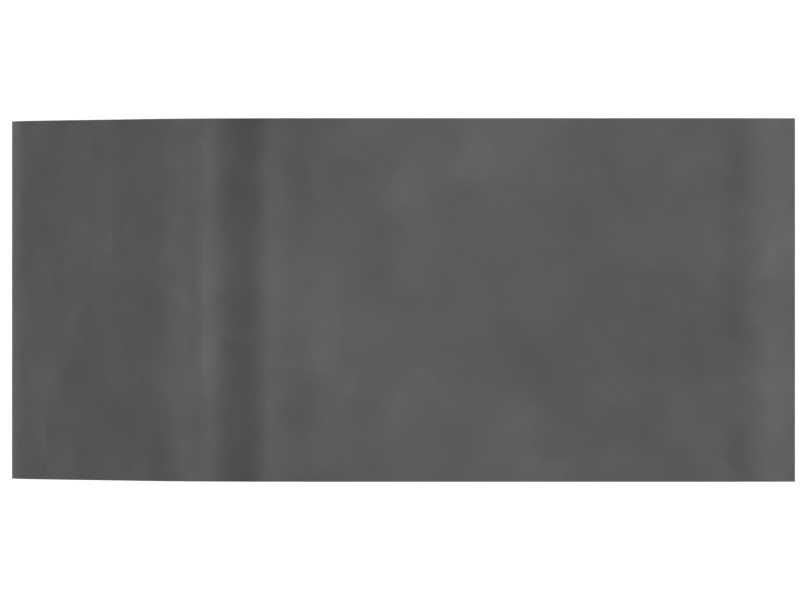

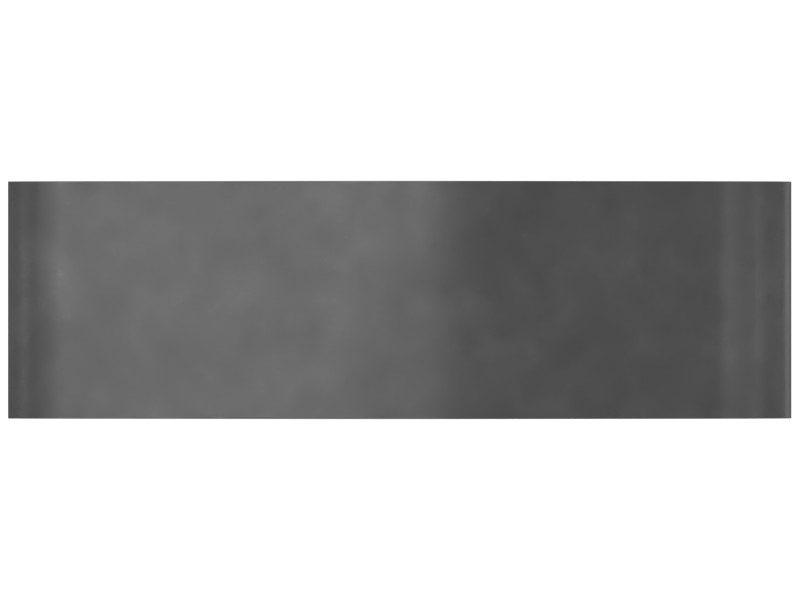

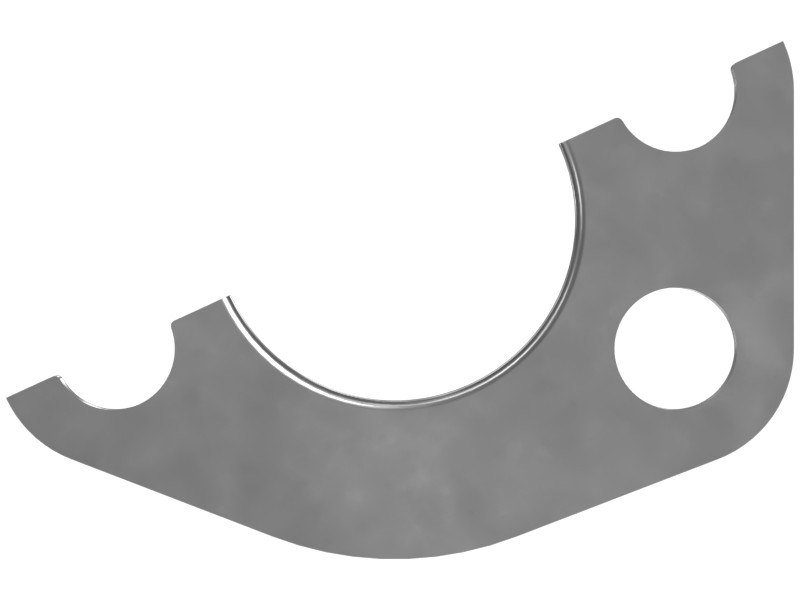

Description
Cat® flange connectors and flange clamps meet the highest standards of quality, reliability and durability. These flange components are manufactured to tight tolerances to ensure leak-free connections. Every Cat flange connector and flange clamp meets or exceeds industry standards for working pressure, cyclic loading and corrosion protection to ensure long-lasting, reliable machine operation.
Features
- Connection component for fluid-carrying tubes and hoses
- Meets or exceeds industry-standard part performance and provides a leak-free connection
- Images provided are for reference only. Flange component construction may differ slightly from the image shown, but this part is interchangeable with the OEM part.
Applications
Flange connectors and flange clamps are used to connect fluid-carrying hoses and tubes to other system components. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Flange Type | Split |
|---|---|
| Connector Type | -8 Code 61 |
| Material | Steel |
| Hole Size | 8 mm (0.33 in) |
| Length | 54 mm (2.13 in) |
| Width | 46 mm (1.81 in) |
| Flange Thickness | 16 mm (0.63 in) |
| Flange Hole Spacing | 18; 38 mm (0.69; 1.5 in) |
Compatible Equipment
- Motor Graders: 120, 16
- Track Loaders: 953, 824C
- Cold Planers: PL61
- Wheel Excavators: MD6250, MD6310
- Compactors: CB-434D
- Dozers: D6K2, D4, D8, D4E, D7R II, D7H, D8T, D7R, D8N, D7G, D8R, D7G2, D6N
- Excavators: 621G, 637E, 637G, 657G
- Wheel Loaders: R1700G, R1600H, R1700K, 950
- Off-Highway Trucks: 794 AC, 773, 796 AC, 771D, 798 AC
- Asphalt Pavers: AD63
- Skid Steer Loaders: 226B3, 226B
Additional information
| Machine Model | 120, 16, 226B, 226B3, 621G, 637E, 637G, 657G, 771D, 773, 794 AC, 796 AC, 798 AC, 824C, 950, 953, AD63, CB-434D, D4, D4E, D6K2, D6N, D7G, D7G2, D7H, D7R, D7R II, D8, D8N, D8R, D8T, MD6250, MD6310, PL61, R1600H, R1700G, R1700K |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Asphalt Pavers, Cold Planers |
| Part Source | Genuine OEM |
