Description

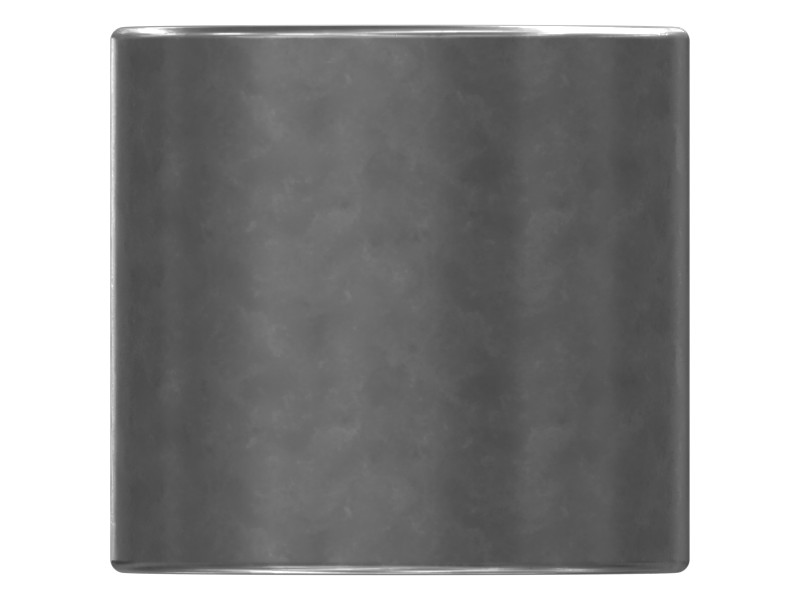

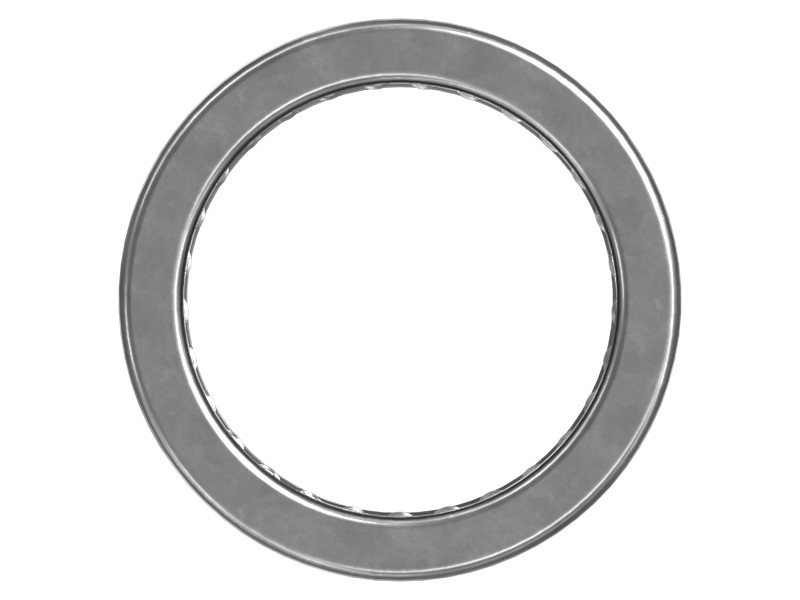

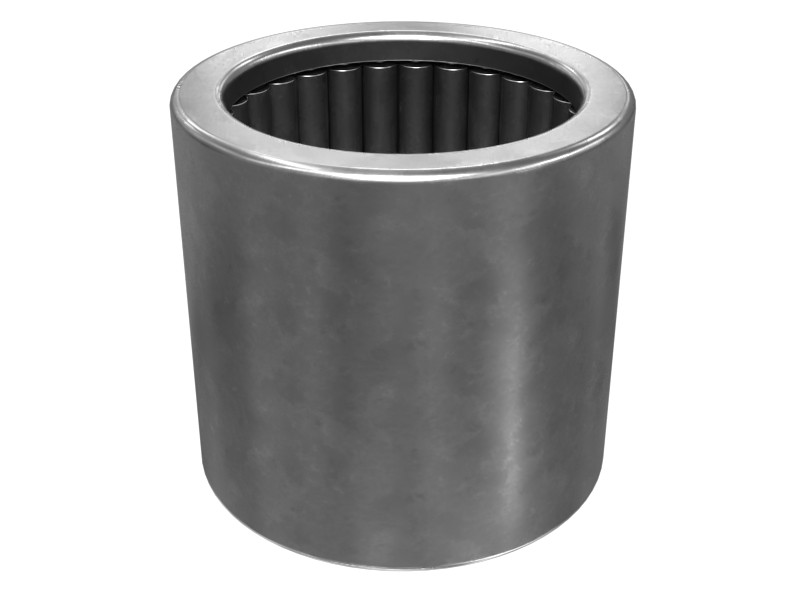

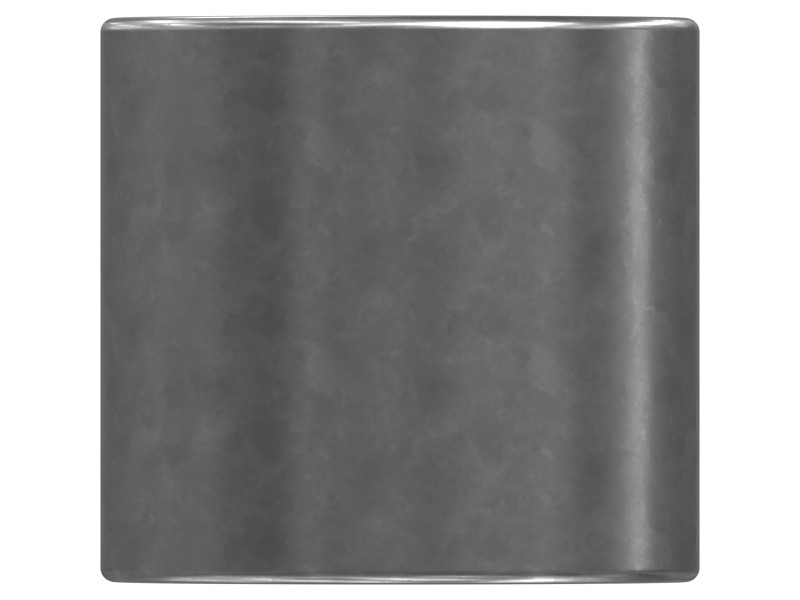

Cat drawn cup needle bearings can withstand heavy loads and operate smoothly at high rotational speeds. The case-hardened shell serves as the outer bearing raceway, and its formed lips mechanically retain the needle rollers, retain lubricant, and keep out external material and contaminants.
Features
- Outside Diameter: 26.988 mm (1.0625 in)
- Inside Diameter: 20.638 mm (0.8125 in)
- Height: 25.4 mm (1 in)
- High load capacity and hardness
- Supports high rotational speeds
- Requires minimal radial installation space
- One-piece unit for easy handling and installation
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Inside Diameter | 20.6 mm (0.81 in) |
|---|---|
| Outside Diameter | 27 mm (1.06 in) |
| Height | 25.4 mm (1 in) |
Compatible Equipment
- Generator Sets: C9
- Motor Graders: 12K, 140K, 160K, 14
- Engines: C7
- Compactors: C-9
- Dozers: D6R II, D6T, D6R III, D7R, D6R LGP, D6R XL, D6R
- Excavators: 330D L, M325D L MH, 325D, 325D L, 329D L, 324D L, 336D L, 336D2 GC, 328D LCR, 330C, 324D, 330C L, 330D, 336D2 L, 326D L, 637G, 637E, 340D2 L, 340D L, 336D2 XE, 336D, 329D, 336D2
- Wheel Loaders: 950H
- Off-Highway Trucks: 773
Additional information
| Machine Model | 12K, 14, 140K, 160K, 324D, 324D L, 325D, 325D L, 326D L, 328D LCR, 329D, 329D L, 330C, 330C L, 330D, 330D L, 336D, 336D L, 336D2, 336D2 GC, 336D2 L, 336D2 XE, 340D L, 340D2 L, 637E, 637G, 773, 950H, C-9, C7, C9, D6R, D6R II, D6R III, D6R LGP, D6R XL, D6T, D7R, M325D L MH |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Engines, Generator Sets |
| Part Source | Genuine OEM |
