Description

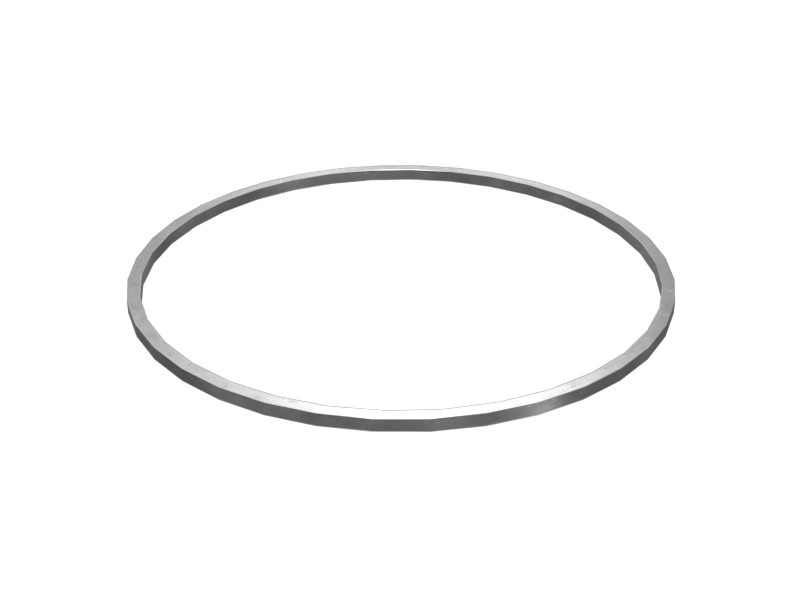

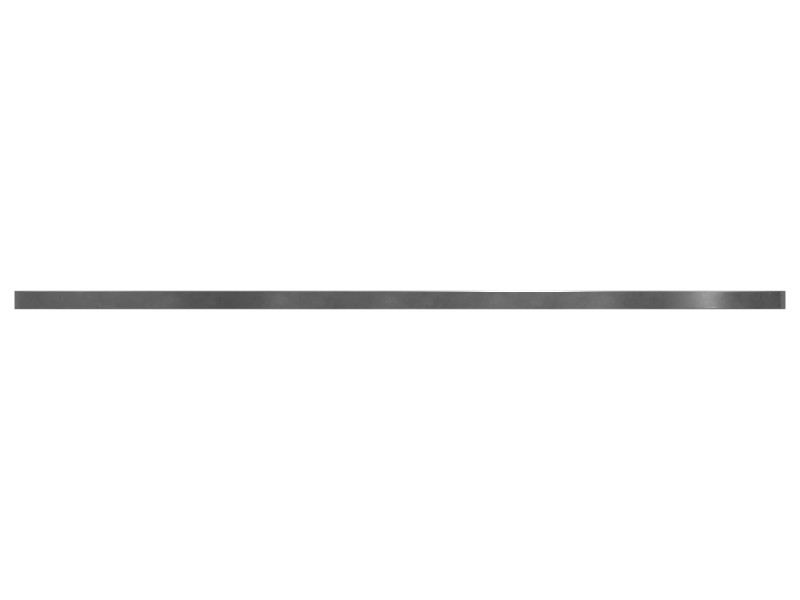

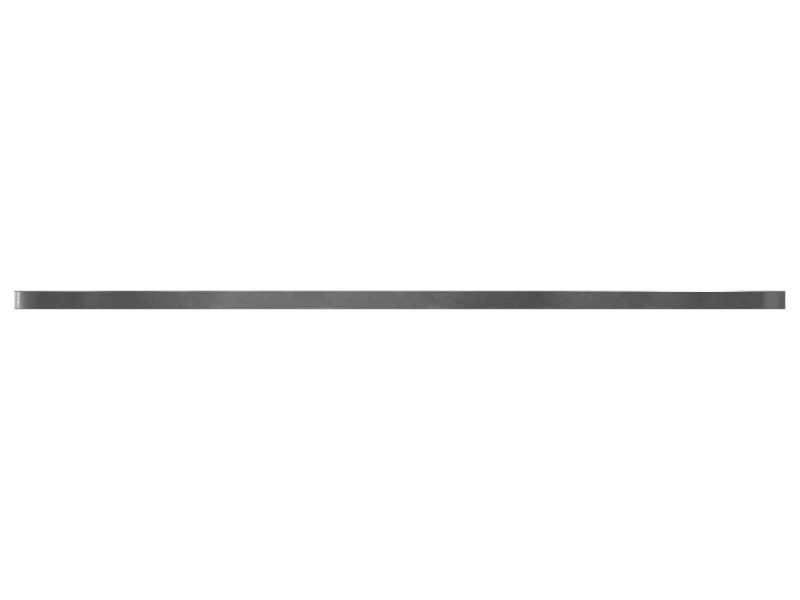

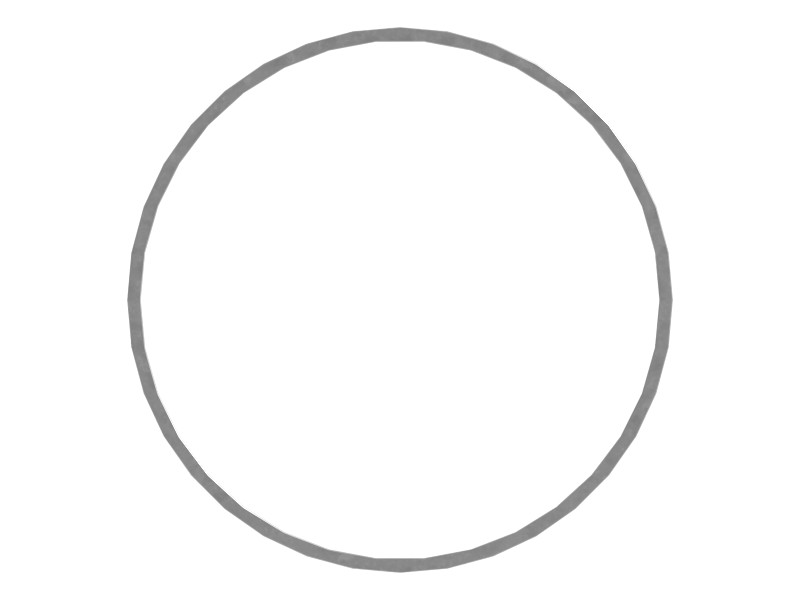

The seal ring provides a reliable seal between the two mating surfaces of the turbocharger propeller in the turbocharger cartridge group. The seal ring is designed to fit into a groove or recess on one of the mating surfaces, forming a compression seal when the two surfaces are brought together. This compression deforms the seal ring so that it can fill any irregularities or gaps
Attributes
- Prevents the passage of fluids, gases or contaminants
- Built to exact specifications for durability and reliability
Applications
The seal ring provides a leak-proof seal between the turbocharger propeller and the turbocharger housing. It is widely used in Cat Articulated Trucks, Engines, Excavators, Generators, Generator Sets, Multi-Terrain Loaders, Marine Auxiliary Equipment, Material Handlers, Mobile Hydraulic Power Units, Motor Graders, Petroleum Kits, Pipelayers, Power Modules, Reclaimer Mixers, Road Reclaimers, Track Loaders, Track-Type Tractors, Dozers, Trucks, Trucks, Truck Engines, Wheel Loaders, and Wheel Tractor-Scrapers.
Specifications
| Length | 114.3 mm (4.5 in) |
|---|---|
| Height | 5.1 mm (0.2 in) |
| Width | 101.6 mm |
| Axial Thickness | 1.68 mm |
| Inside Diameter | 68.34 mm (2.69 in) |
| Outside Diameter | 71.7 mm (2.82 in) |
| Radial Thickness | 1.68 mm |
Compatible Equipment
- Generator Sets: G3516, 3512B
- Motor Graders: 16, 18, 14, 16M3, 349 GC
- Track Loaders: 973K, 982, 972
- Cold Planers: PL72
- Compactors: C9.3B
- Engines: C13
- Dozers: D6T LGP, D7E, D6T, D7
- Excavators: 349F L, 340, 350, 637K, 349, 352, 352F, 3516B, 336, 345 GC, 336F L, 336E, 336E L, 336F LN, 336E LH, 336F, 336E H, 336E LN, 350MHPU
- Wheel Loaders: 980M, 972M, 966M, 982M, 966 GC
- Off-Highway Trucks: 735, 730, 785, 725, 793, 725C2
Additional information
| Machine Model | 14, 16, 16M3, 18, 336, 336E, 336E H, 336E L, 336E LH, 336E LN, 336F, 336F L, 336F LN, 340, 345 GC, 349, 349 GC, 349F L, 350, 350MHPU, 3512B, 3516B, 352, 352F, 637K, 725, 725C2, 730, 735, 785, 793, 966 GC, 966M, 972, 972M, 973K, 980M, 982, 982M, C13, C9.3B, D6T, D6T LGP, D7, D7E, G3516, PL72 |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Cold Planers, Engines, Generator Sets |
| Part Source | Genuine OEM |
