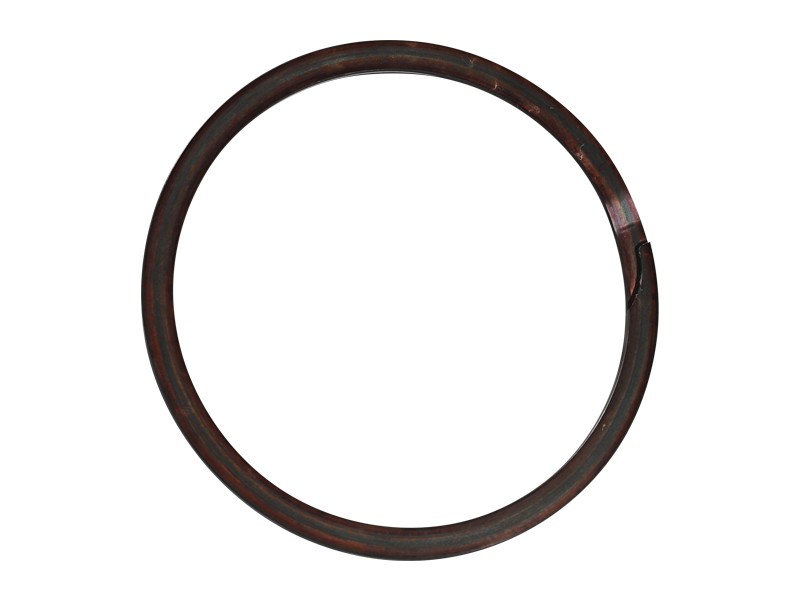

1M-8653 87.20 mm Free Diameter External Retaining Ring
Cat® External Axial Spiral Retaining Ring
Description
Cat® retaining rings install in a machined groove in a housing/bore (internal) or on a shaft (external), providing high strength and long service life in a wide range of applications. Cat retaining rings are manufactured to precise specifications to be durable, reliable and efficient. You can count on this "Built For It" product to help you get more work done.
Features
- Retaining rings meet or even exceed ANSI, ASTM and DIN requirements
- ROHS compliant
Applications
- Assembles into a shaft or housing groove to secure parts or assemblies.
Specifications
| Material | Carbon Steel |
|---|---|
| Remarks | Free Diameter: 87.2, Radial Wall: 6.35, Lug Height: 0, Groove Width: 3.05, Groove Diameter: 87.83, Shaft Diameter: 92 |
| Material Description | Steel Retaining Ring |
| Thickness | 2.82 mm |
| Cross Hole | None |
Compatible Equipment
- Dozers: D10T, D10N, D10R, D10T2, D9L, D10
- Excavators: 637K, 621K
