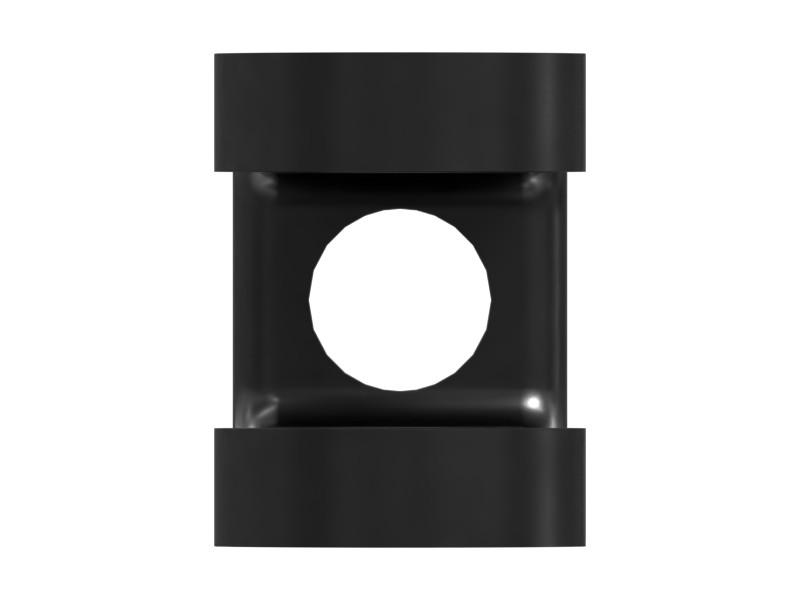

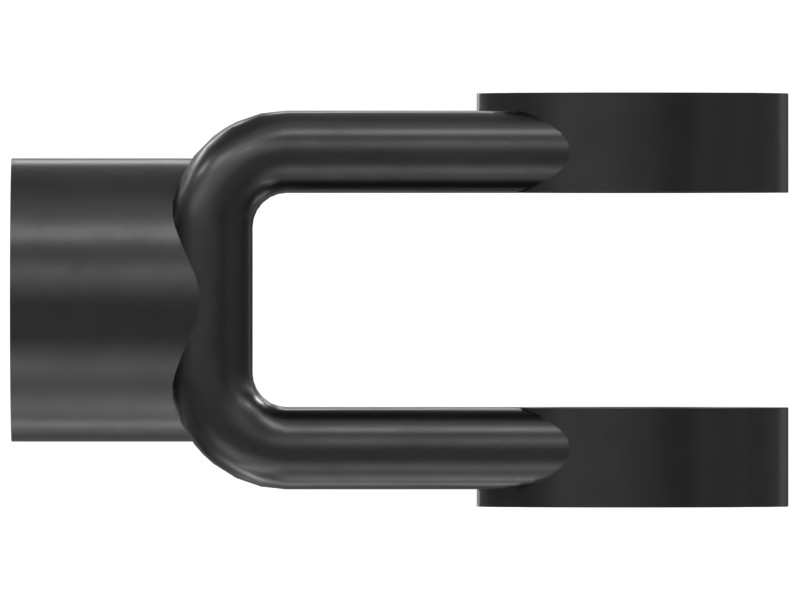

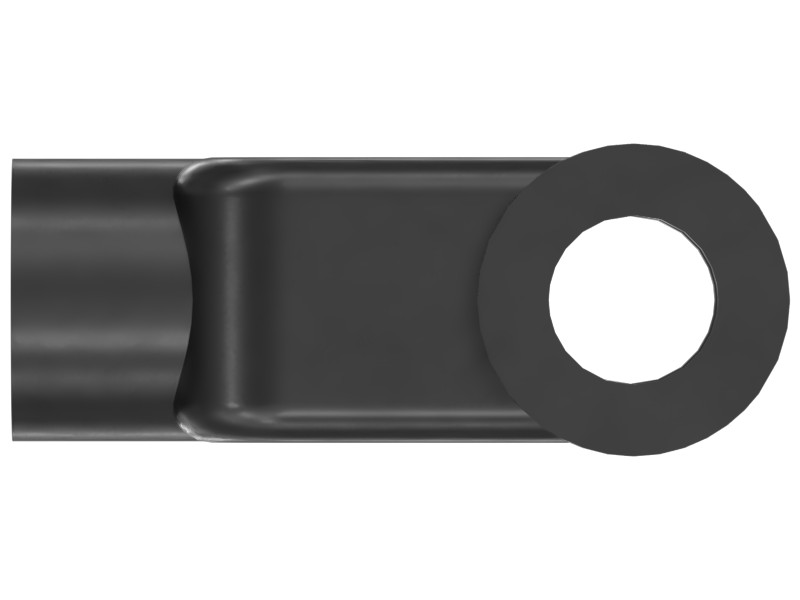

1M-1341 17.5 mm OD Yoke Rod End
Cat® yoke rod end connects the steering clutch hydraulic control system for accurate, smooth steering control.
Description
Cat® rod ends offer long service life, low maintenance and high operating reliability. Yoke-type rod ends provide rotary motion. These types of rod ends are suitable for transmission and hydraulic control linkage and rod assembly applications.
Features
- Material: Steel
- Rod End Type: Yoke
- Centerline to Edge: 35 mm (1.377 in)
- Outer Yoke Width: 22 mm (0.866 in)
- Inner Yoke Width: 11 mm (0.433 in)
- Bore Diameter: 9.5 mm (0.374 in)
- Thread Size: 3/8-24 RH
- Galvanized
- High load capacity
- Easy to install and remove
- Suitable for heavy-duty static or alternating loads and shock loads.
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Width – D | 17.50 in |
|---|---|
| Pin | 8T-8932 |
| Rod Diameter | 3/8 in |
| Clearance Size – B | 11.10 in |
| Height – C | 22.20 in |
| Length to Pin Hole – A | 34.9 in |
| Material Description | Steel |
| Rod End Type | Yoke Type |
| Length | 43.75 mm (1.722 in) |
| Thread Size | 3/8-24 in |
Compatible Equipment
- Motor Graders: 16, 120
- Track Loaders: 953, 963, 816F
- Compactors: 816, 815, 814
- Dozers: D4E, D6R III, D9R, D8R, D7H, D7G, D7R II, D6R, D8N, D6R II, D6G2 XL, D5H, D7G2, D7R, D10N, D9N, D6G2 LGP, D6R XL, D6G
- Wheel Loaders: 950, 834, 980, 992C, 966F
- Off-Highway Trucks: 789, 785
- Asphalt Pavers: AD45
Additional information
| Machine Model | 120, 16, 785, 789, 814, 815, 816, 816F, 834, 950, 953, 963, 966F, 980, 992C, AD45, D10N, D4E, D5H, D6G, D6G2 LGP, D6G2 XL, D6R, D6R II, D6R III, D6R XL, D7G, D7G2, D7H, D7R, D7R II, D8N, D8R, D9N, D9R |
|---|---|
| Equipment Type | Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Asphalt Pavers |
| Part Source | Genuine OEM |
