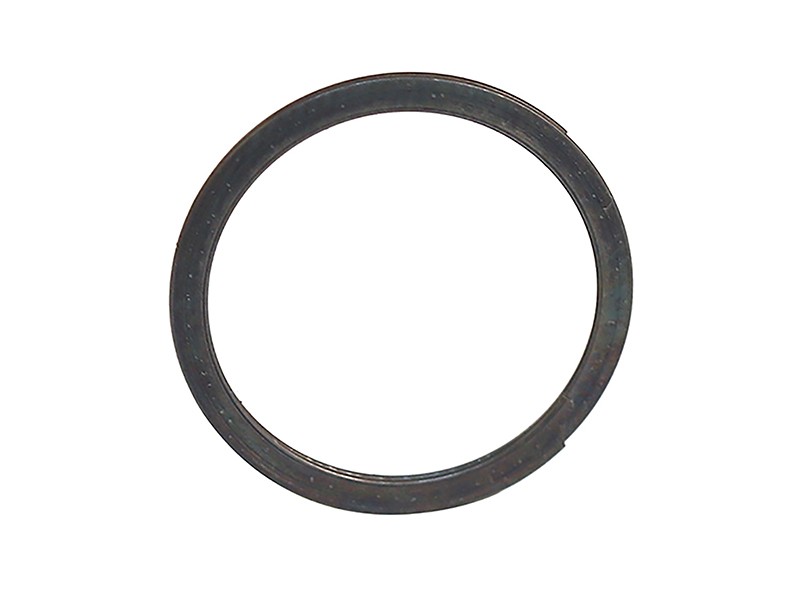

1L-3162 20 mm Free Diameter Internal Retaining Ring
Cat® Internal Axial Spiral Retaining Ring
Description
Cat® retaining rings install in a machined groove in a housing/bore (internal) or on a shaft (external), providing high strength and long service life in a wide range of applications. Cat retaining rings are manufactured to precise specifications to be durable, reliable and efficient. You can count on this "Built For It" product to help you get more work done.
Features
- Retaining rings meet or even exceed ANSI, ASTM and DIN requirements
- ROHS compliant
Applications
- Assembles into a shaft or housing groove to secure parts or assemblies.
Specifications
| Thickness | 0.79 mm |
|---|---|
| Cross Hole | None |
| Remarks | Free Diameter: 20.07, Radial Wall: 1.65, Lug Height: 0, Groove Width: 0.91, Groove Diameter: 19.86, Housing Diameter: 19.05 |
| Material Description | Steel Retaining Ring |
| Material | Alloy Mixed: Metal |
Compatible Equipment
- Motor Graders: 140G, 16, 16H
- Generator Sets: C4.4, 3512B
- Track Loaders: 993, 982, 990K, 834H, 992, 824C, 824G, 826H, 826K, 826G
- Cold Planers: TH55-E70
- Compactors: 824K, 825K, 834K, C9.3B
- Dozers: D6R, D8L, D6R II, D7R, D7R II, D9T, D9L, D9N, D11T, D11N, D10T, D11R, D10, D10R, D10N, D11
- Excavators: 657G, 3516E, 621G, 637E, 3508B, 3512C, 637G
- Wheel Loaders: 982M, 980M, 992K, 986K
- Off-Highway Trucks: 773E, 777D, 777E, 777, 785D, 771D, 797F, 789D, 785, 789, 773, 735, 773D, 793, 775G, 740, 793F, 793D, 773F
- Asphalt Pavers: AD63, AD30, AD45
Additional information
| Machine Model | 140G, 16, 16H, 3508B, 3512B, 3512C, 3516E, 621G, 637E, 637G, 657G, 735, 740, 771D, 773, 773D, 773E, 773F, 775G, 777, 777D, 777E, 785, 785D, 789, 789D, 793, 793D, 793F, 797F, 824C, 824G, 824K, 825K, 826G, 826H, 826K, 834H, 834K, 980M, 982, 982M, 986K, 990K, 992, 992K, 993, AD30, AD45, AD63, C4.4, C9.3B, D10, D10N, D10R, D10T, D11, D11N, D11R, D11T, D6R, D6R II, D7R, D7R II, D8L, D9L, D9N, D9T, TH55-E70 |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Asphalt Pavers, Cold Planers, Generator Sets |
| Part Source | Genuine OEM |
