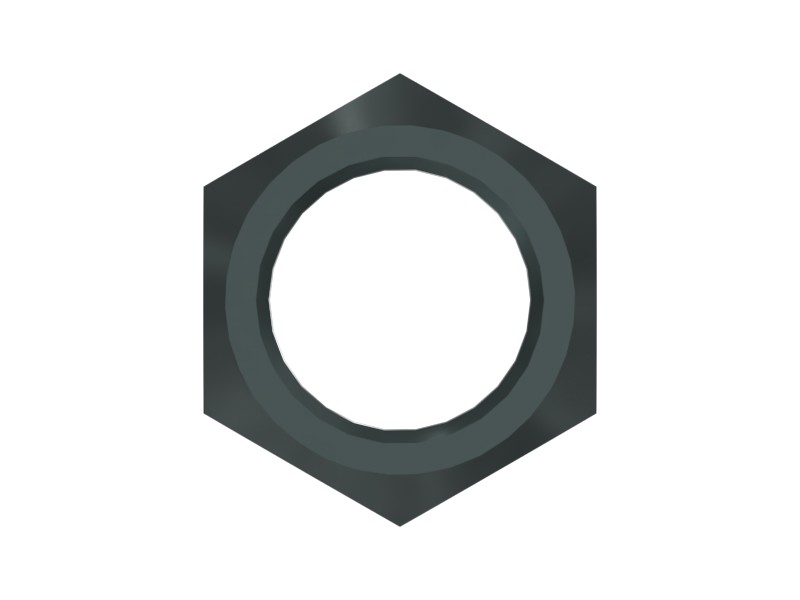

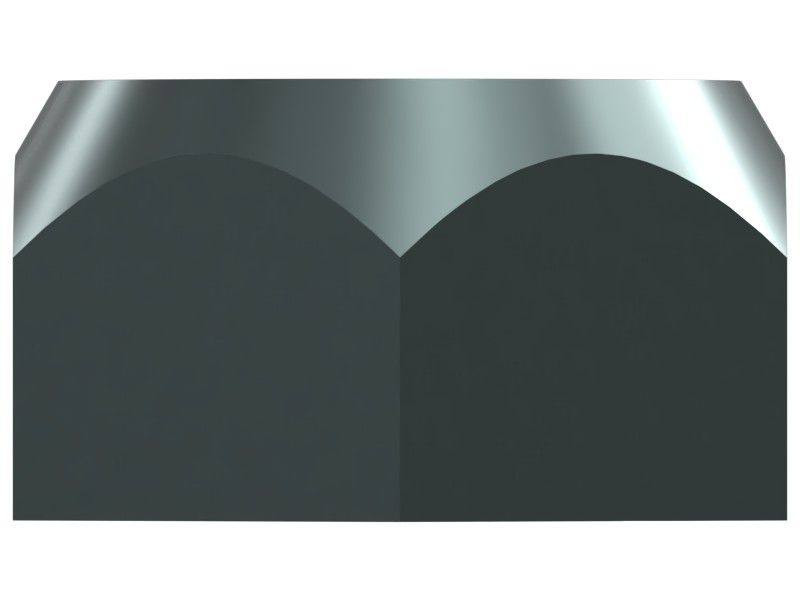

Description
Track nuts are used to secure track shoes to the link assembly.
Specifications
| Thread Size | .500 mm (0.02 in) |
|---|---|
| Drive Chain | 19.05 mm (3/4 in) |
| Hole Thread Pitch | 13 |
| Thread Direction | RH |
| Thread Size (Diameter × Pitch) | 1/2×13 mm |
| Class or Grade | SAE J995 Grade 8 |
| Thread | Coarse Thread UNC |
| Nut Width – 3 | 3/4 in |
| Hardened | Yes |
| Thickness | 11.1125 mm (0.448 in) |
| Height | 0.44 in |
| Nut Model | Lock Nut |
| Material | STEEL |
| Thread Size (in – TPI) | 1/2-13 in |
| Material Description | SAE J995 Grade 8 |
| Coating | Zinc Plated |
Compatible Equipment
- Generator Sets: 3516C, 3512B, C4.4, 3512E, G3516C, 3406C, 3406B, G3516
- Track Loaders: 963, 953, 992, 826G, 824C, 953K, 816F, 953D, 963K, 824G, 963D, 826H
- Cold Planers: PL87
- Compactors: CS-56, CS-583D, CS-533C, CS-563E, C-15, CS-533E
- Engines: C15, C18, C175-16, C12
- Asphalt Pavers: AD63, AD45, AD30, AP-600D
- Skid Steer Loaders: 246D, 236D, 262D, 232D
- Motor Graders: 120, 140G, 140K, 12H, 140H, 120H, 12K, 16H, 16, 14M, 16M, 160K, 3606
- Wheel Excavators: IT14G
- Dozers: D6R, D8R, D9, D7G, D9R, D10R, D8, D5H, D9L, D7R II, D7H, D6R XL, D6R II, D7R, D8T, D6G2 LGP, D7G2, D11R, D10N, D10T, D10, D4, D8N, D8L, D6G, D4E, D9N, D10T2, D6G2 XL, D9T, D11N
- Excavators: 3512C, 3516B, SE60 V XW, 6040, 3516E, 637G, 6060, 320D FM, 432, 416E, 637K, 637E, 657G, 621H, 385B, 621G, 621K, 416F2, 434F2, 428F, 3508B
- Wheel Loaders: 924K, 972H, RM400, 926M, 938M, 938K, RM500B, 972G, 950, 928G, 962G, 950H, 966H, 980H, 906K, 924HZ, 966F, 980, 836, 980G, 950G, R1700G, R1700 II, 992C, 988G, 966K, 988H, 988F, 986H, 992D, R1300G, 924GZ, 928HZ, R1600H
- Off-Highway Trucks: 794 AC, 793, 740, 793D, 735, 796 AC, 789D, 725, 785D, 789, 773, 797F, 7495, 798 AC, 773E, 785, 793F, 773D, 772G, 770G, 777, 777E, 773F, 771D, 730, 777D, 775G
