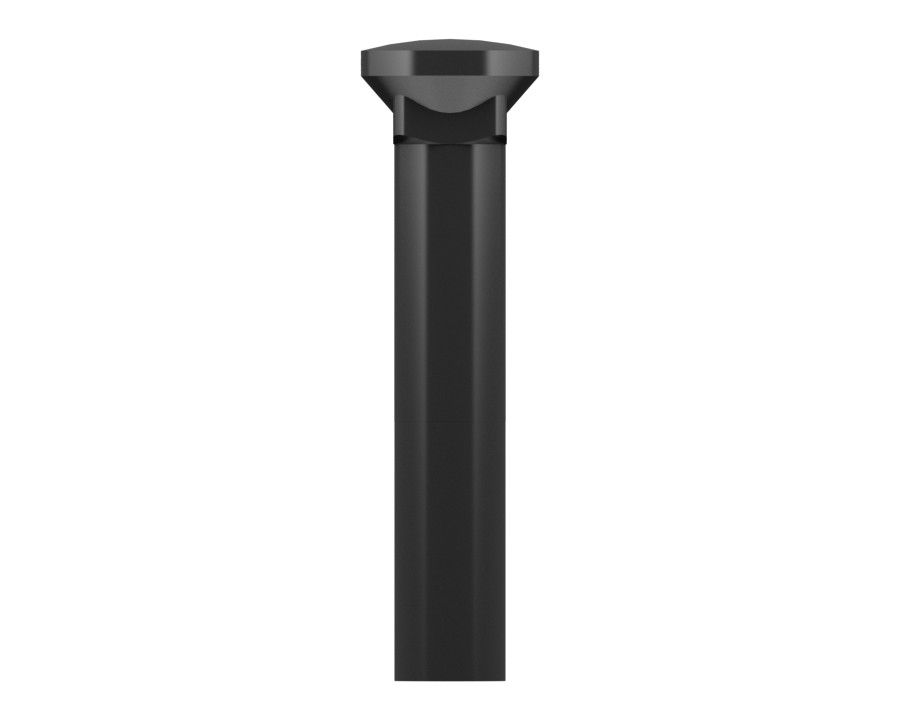

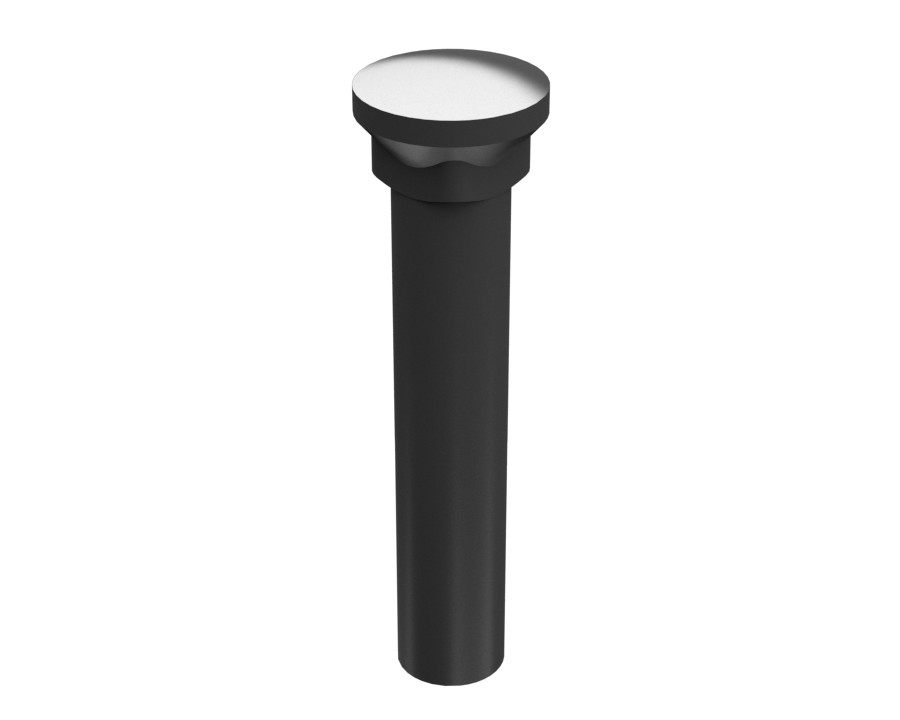

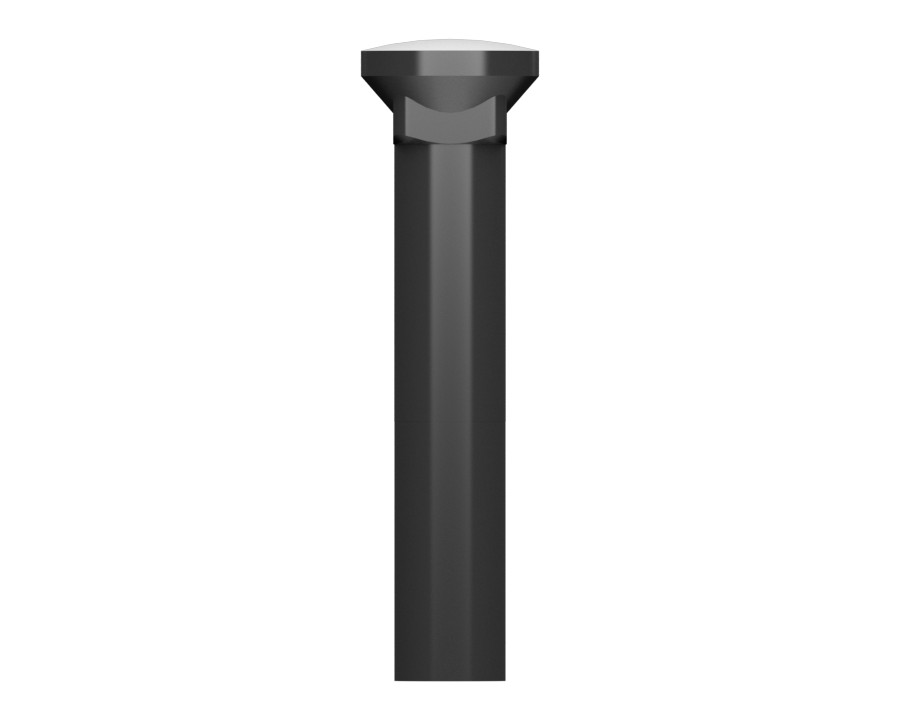

Description
Cat® plow bolts form a matched system with the corresponding hardened washers and nuts to produce consistently high clamp force. These bolts install on the cutting edge and feature a domed head for added strength and wear life.
Features
- Thread Size: ¾" – 10 TPI
- Bolt Length: 4 ¼"
- Domed head adds strength and wear resistance
- Exceeds SAE Grade 8 tensile strength and proof load specifications
Applications
- Cutting edge bolts
Specifications
| Bolt Type | Cutting Edge Bolts |
|---|---|
| Handle Length – 2 | 2.50 in |
| Bolt Overall Length – 3 | 4 1/4 in |
| Head Width – 5 | 1.20 in |
| Thread | Coarse Thread UNC |
| Head Height – 4 | 0.63 in |
| Material | Carbon Steel |
| Thread Size (in – TPI) | 3/4 – 10 in |
Compatible Equipment
- Motor Graders: 16M, 16M3
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
