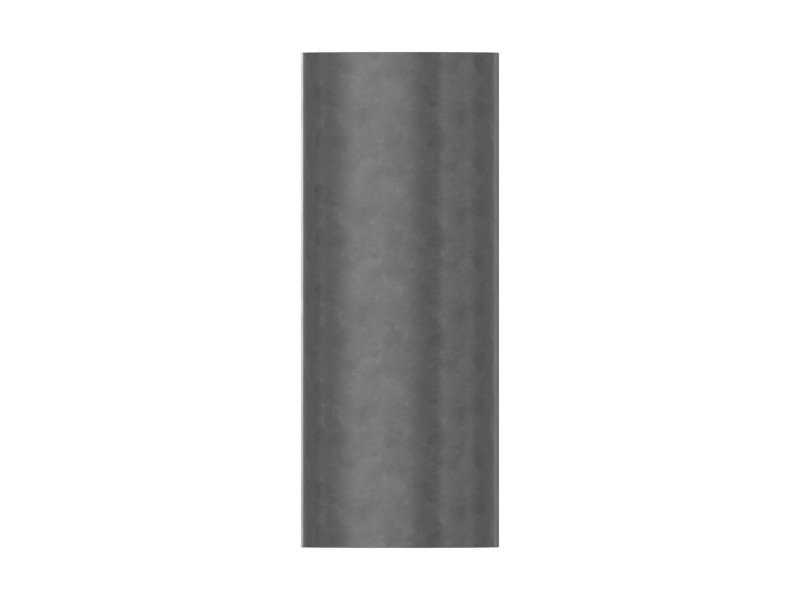

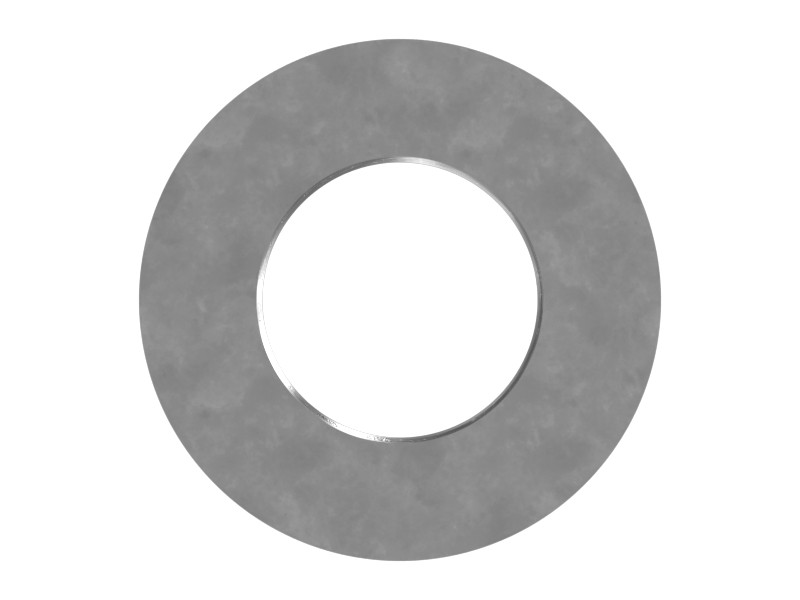

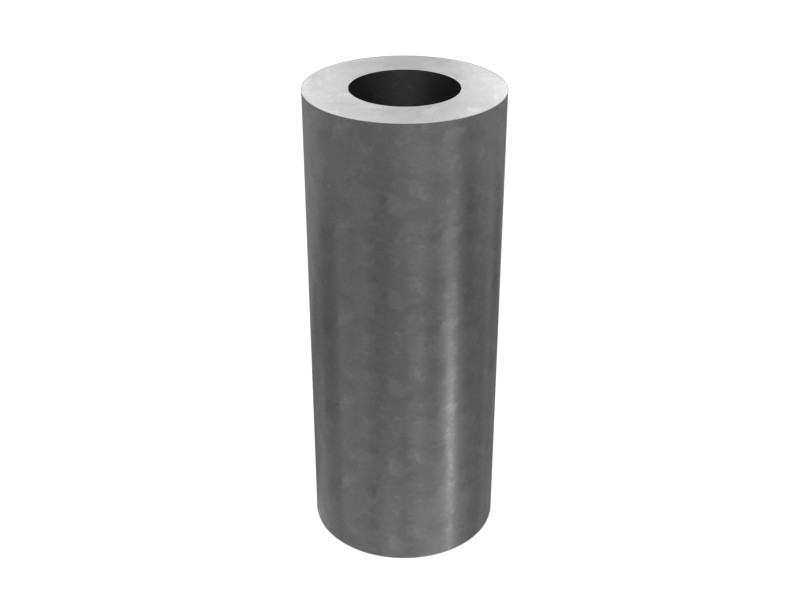

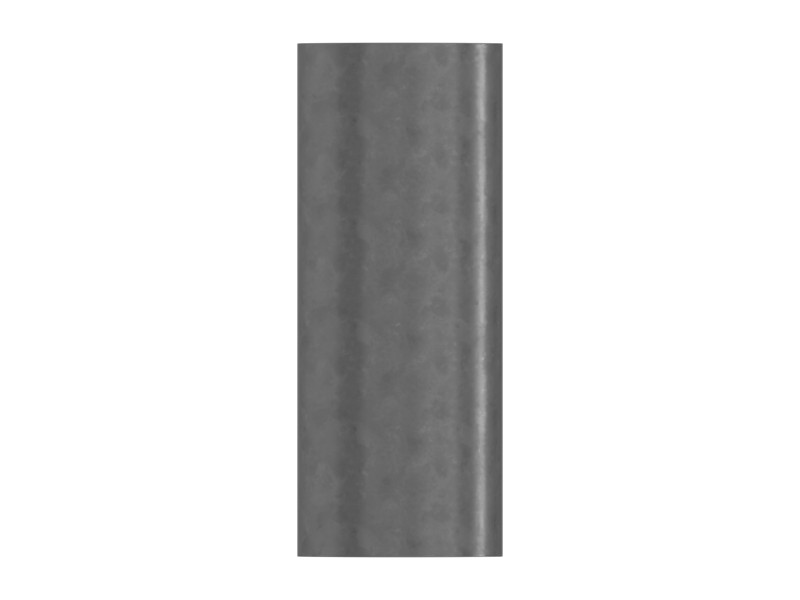

1F-7854 20 mm OD Steel Shim
Cat® 20 mm OD Steel Spacer for Increasing Stretch Length in Wiring and Hydraulic Line Retainers
Description
A shim is a thick ring made of metal, rubber, or plastic that is held under a nut or bolt head to spread pressure or provide equalization between two surfaces when tightened.
Features
- Material: Hardened Steel
- Used with M10 or 3/8 in fasteners
- Outside Diameter: 20 mm (0.78 in)
- Inside Diameter: 11 mm (0.43 in)
- Length: 50 mm (1.96 in)
- Coating: Zinc
- Color: Black
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Carbon Steel |
|---|---|
| Length | 50 mm (1.96 in) |
| Outside Diameter | 20 mm (0.78 in) |
| Thickness | 50 mm (1.969 in) |
| Coating | Zinc Flake-Black |
| Gasket Type | Flat |
| Inside Diameter | 11 mm (0.43 in) |
| Center Hole Shape | Non-Threaded |
Compatible Equipment
- Generator Sets: 3512E, 3516C, 3512B, G3516
- Track Loaders: 992, 982, 972, 993, 990K, 995, 994K, 826H
- Cold Planers: PL83, PL87, PL72
- Compactors: 815, 816, 834K, CS12, 814, CP56B, CS68B, CS78B, CS56B, CS74B
- Engines: C32, C18, C175-16
- Asphalt Pavers: AD45, AD63
- Skid Steer Loaders: 24, 226D3, 232D3
- Motor Graders: 14, 16, 18, 120, 160K, 140H, 16M3, 12K, 16M, 16H, 140K, 140 GC
- Wheel Excavators: MD6200, MD6310, M315GC, M315, MD6250
- Dozers: D10, D7, D11T, D11, D8, D8T, D8R, D7R, D10T2, D10T, D6T LGP, D7E, D6T, D9R, D9T, D6N, D9
- Excavators: 316 GC, 3516B, 6020B, 3512C, 6040, 120 GC, 3508B, 6060, 621K, 6015, 637K, 657G, 3516E, 637E, 637G, 621G, 621H, 6015B, 6030
- Mini Excavators: 308, 310
- Wheel Loaders: 966, 834, 980, 988K, 966L, 972L, 966H, 972H, R1600H, 950, R3000H, R2900G, R1700K, R1700 XE, R2900 XE
- Off-Highway Trucks: 797F, 785D, 794 AC, 793, 785, 777, 793F, 789, 773, 798 AC, 796 AC, 740, 793D, 773E, 789D, 775G, 777E, 745, 773D, 740 GC
