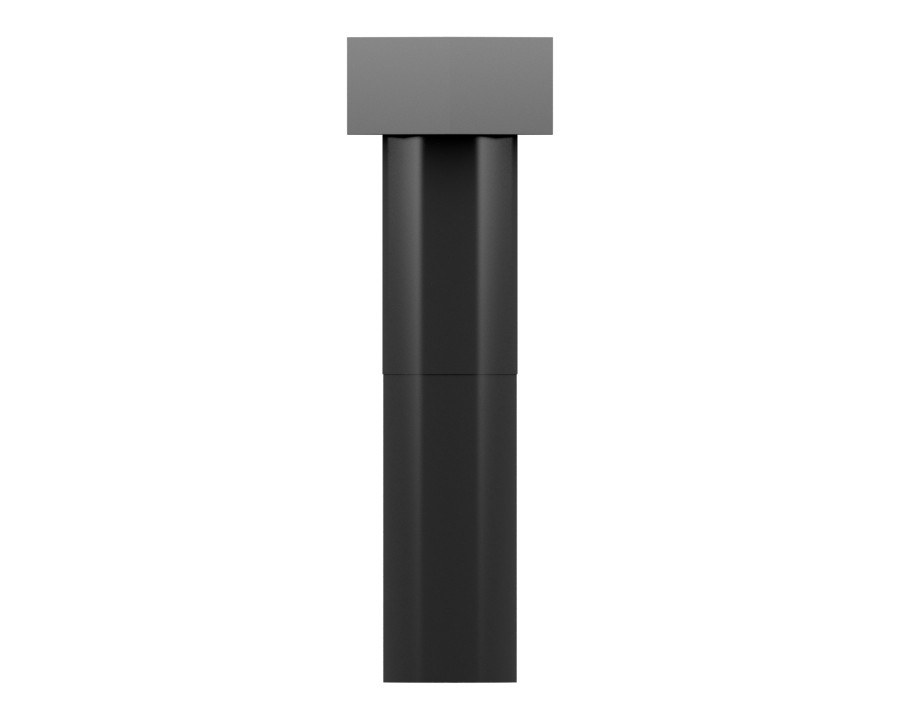

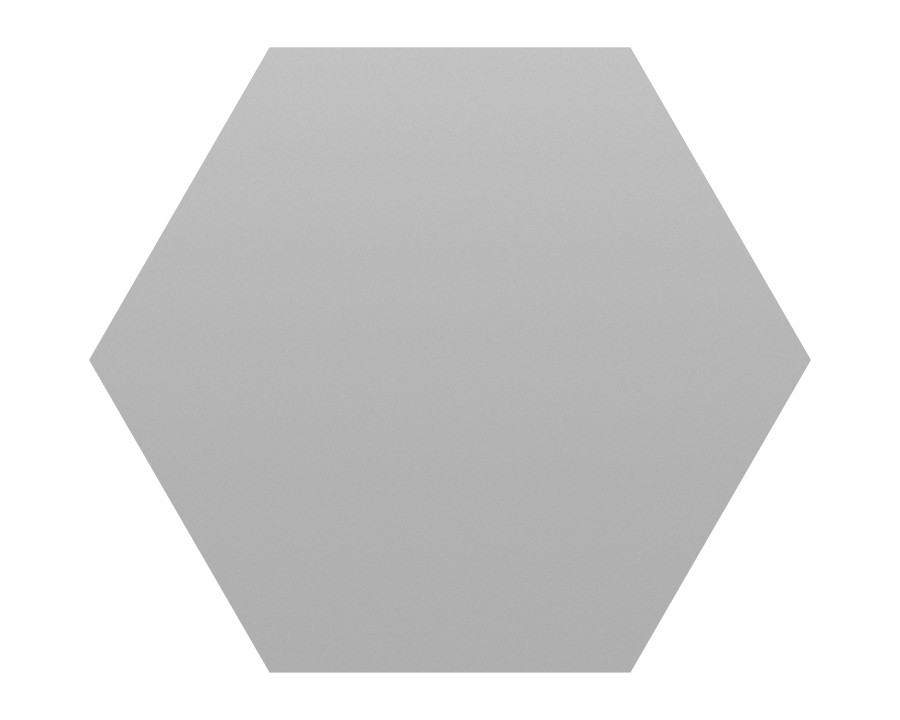

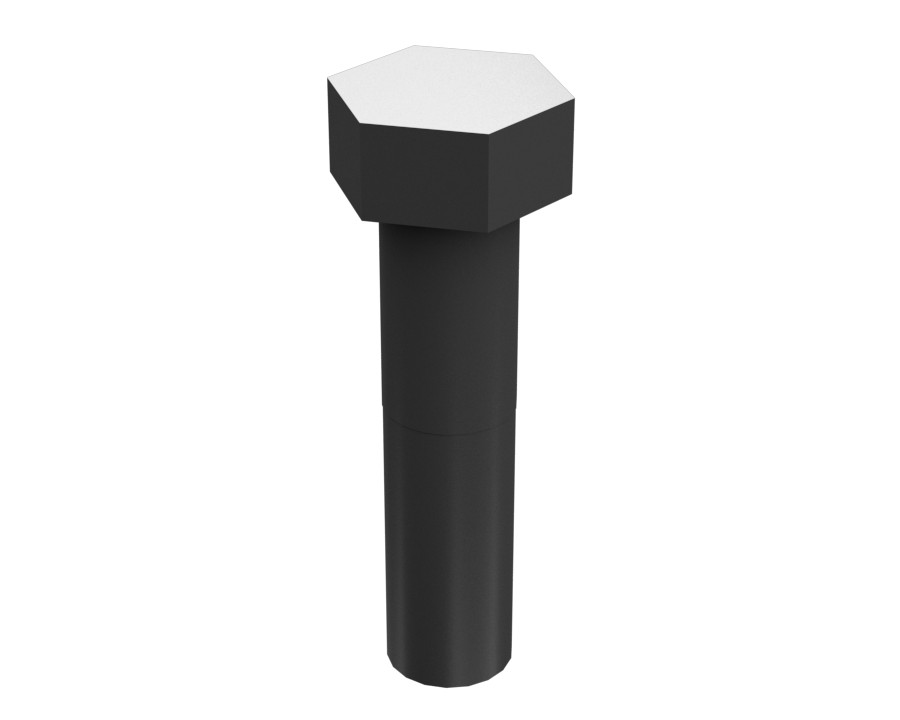

1F-7464 1-14 UNJF 2A Thread Hex Head Bolt

Description

Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.

Hex head bolts/screws provide extremely strong tapping performance.

Features

Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
Coating meets the special requirements of different applications (RoHS compliant).

Applications

Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.

Specifications

Hardening Note	High-Strength Bolt
Locking Feature	None
Thread Size	1.000 mm (0.039 in)
Thread Direction	RH
Class or Grade	Cat/ASTM F2882 (170 ksi)
Thread Size (Diameter × Pitch)	1.000×14 mm
Coating	Zinc Phosphate + Oil
Bolt Length	101.6 mm (4 in)
Bolt Type	Hex Head Bolt
Handle Length	44.45 mm (1.75 in)

Compatible Equipment

Motor Graders: 3606
Generator Sets: 3512B, 3516C
Excavators: 3512C, 3508B, 3516B
Wheel Loaders: 834
Off-Highway Trucks: 789, 785, 785D

Machine Model	3508B, 3512B, 3512C, 3516B, 3516C, 3606, 785, 785D, 789, 834
Equipment Type	Excavators, Wheel Loaders, Motor Graders, Off-Highway Trucks, Generator Sets
Part Source	Genuine OEM

Machine Model

3508B, 3512B, 3512C, 3516B, 3516C, 3606, 785, 785D, 789, 834

Equipment Type

Excavators, Wheel Loaders, Motor Graders, Off-Highway Trucks, Generator Sets

Part Source

Genuine OEM
