Description
Cat bolts form a matched system with mating hardened washers and nuts to produce consistent, high clamping force
Specifications
| Class or Grade | SAE J429 Grade 8 (150 ksi) |
|---|---|
| Thread Size | 0.3125 mm (0.012 in) |
| Thread Size (Diameter × Pitch) | 5/16×18 mm |
| Locking Feature | None |
| Thread Direction | RH |
| Bolt Length | 88.9 mm (3 1/2 in) |

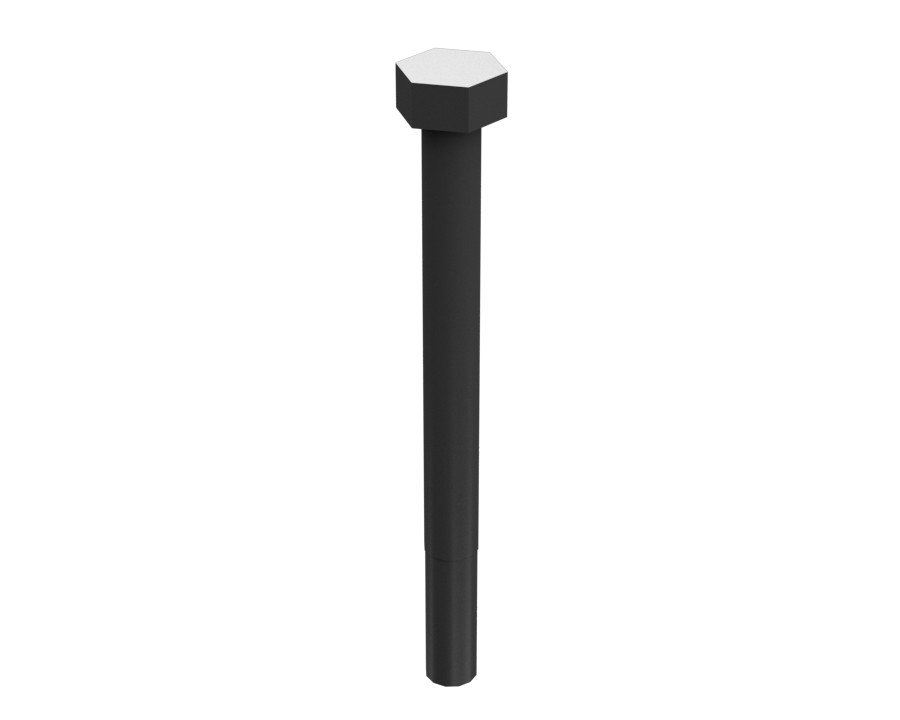

| Bolt Type | Hex Head Bolt |
| Coating | Zinc Phosphate and Oil |
| Handle Length | 66.675 mm (2.63 in) |
| Material | Alloy Zinc |
Compatible Equipment
- Generator Sets: 3516C, 3512B, G3516C, 3406C, C4.4, 3512E, 3406B, G3516
- Track Loaders: 826K
- Cold Planers: PM622, PM620, PL87, PL83
- Compactors: 834K, 825K, 824K
- Engines: C15, C27, C32, C18
- Excavators: 374F, 390F L, 374, 637G, 3512C, 390F, 3516B, 621G, 3508B, 374F L, 637E, 395, 3516E, 657G, 637K
- Asphalt Pavers: AD63, AD45
- Wheel Excavators: MD6200
- Dozers: D8T, D7H, D5H, D9, D8, D11T, D11N, D7R, D8R, D8N, D9T
- Wheel Loaders: 988K, RM500B, R2900 XE, 836, 834, 910, 950
- Off-Highway Trucks: 740, 777D, 789, 773, 771D, 785, 789D, 793D, 785D, 773E, 793, 773D, 740B, 735, 745C, 770G, 777, 772G, 740 GC, 745
Additional information
| Machine Model | 3406B, 3406C, 3508B, 3512B, 3512C, 3512E, 3516B, 3516C, 3516E, 374, 374F, 374F L, 390F, 390F L, 395, 621G, 637E, 637G, 637K, 657G, 735, 740, 740 GC, 740B, 745, 745C, 770G, 771D, 772G, 773, 773D, 773E, 777, 777D, 785, 785D, 789, 789D, 793, 793D, 824K, 825K, 826K, 834, 834K, 836, 910, 950, 988K, AD45, AD63, C15, C18, C27, C32, C4.4, D11N, D11T, D5H, D7H, D7R, D8, D8N, D8R, D8T, D9, D9T, G3516, G3516C, MD6200, PL83, PL87, PM620, PM622, R2900 XE, RM500B |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Dozers, Off-Highway Trucks, Compactors, Asphalt Pavers, Cold Planers, Engines, Generator Sets |
| Part Source | Genuine OEM |
