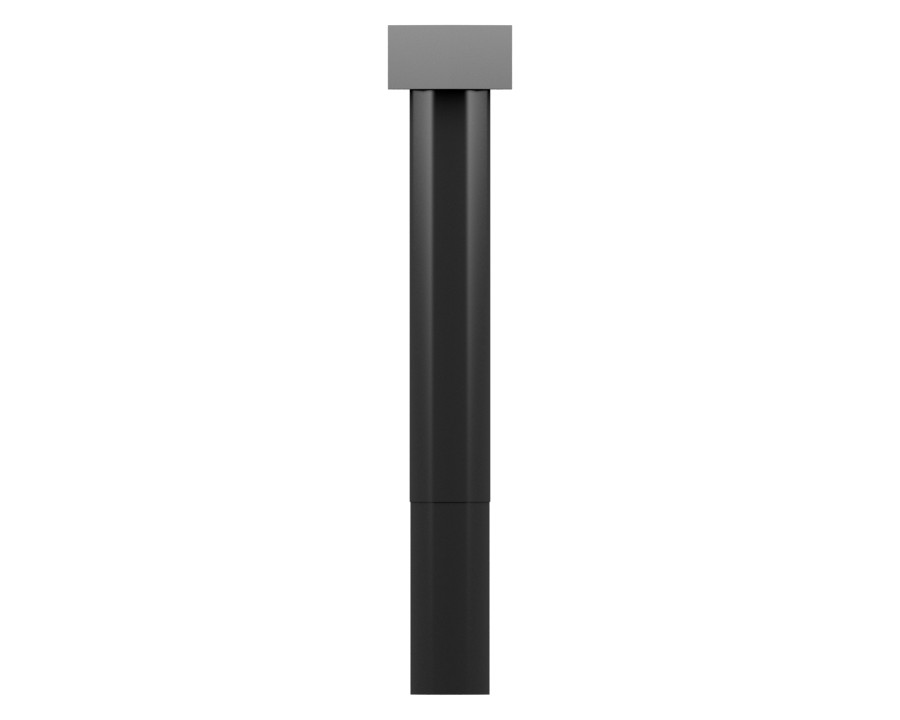

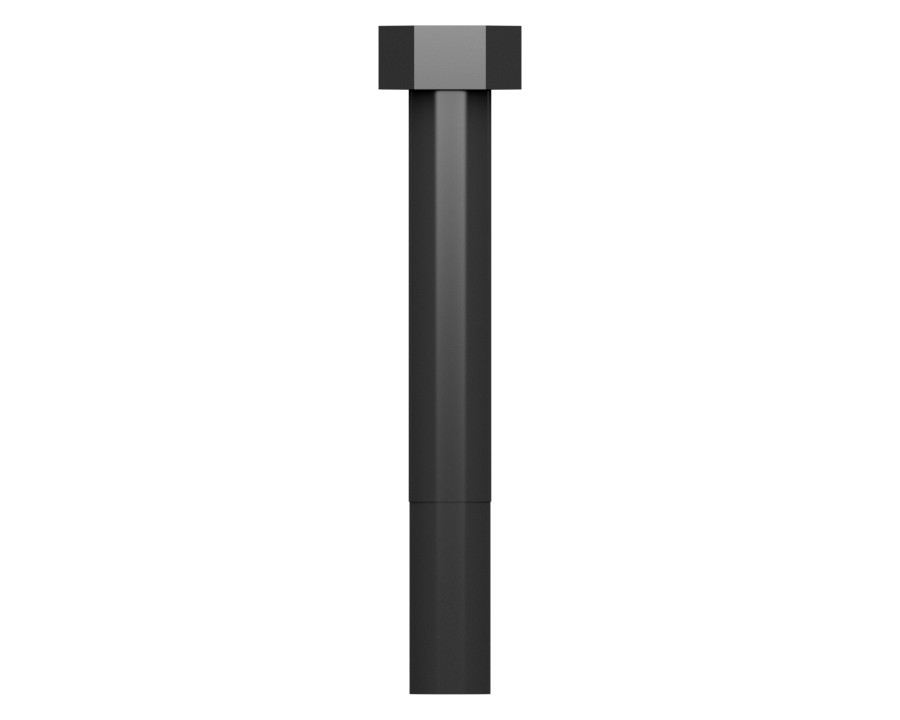

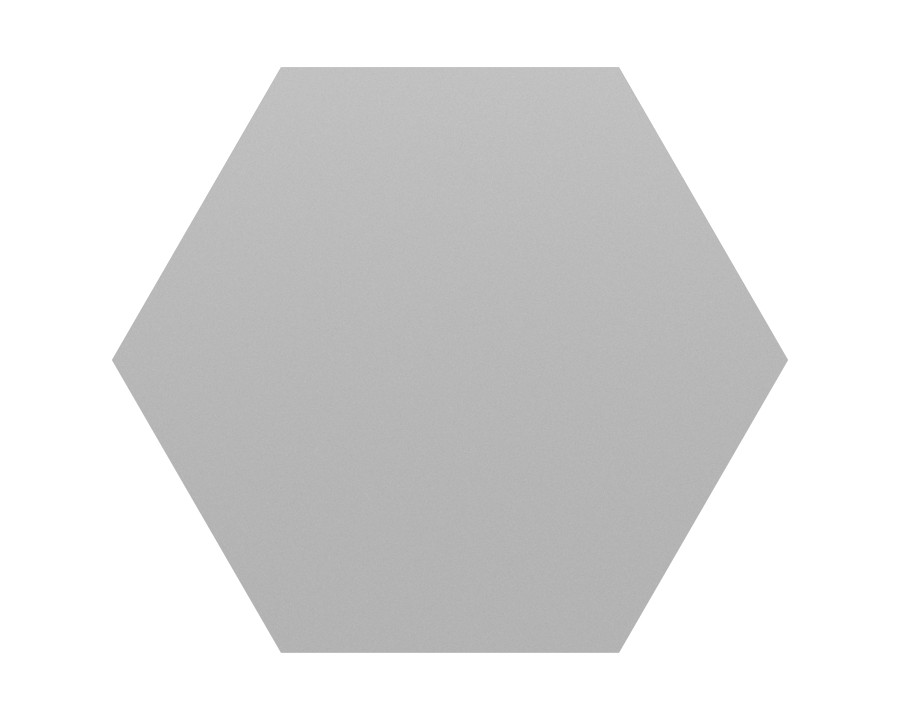

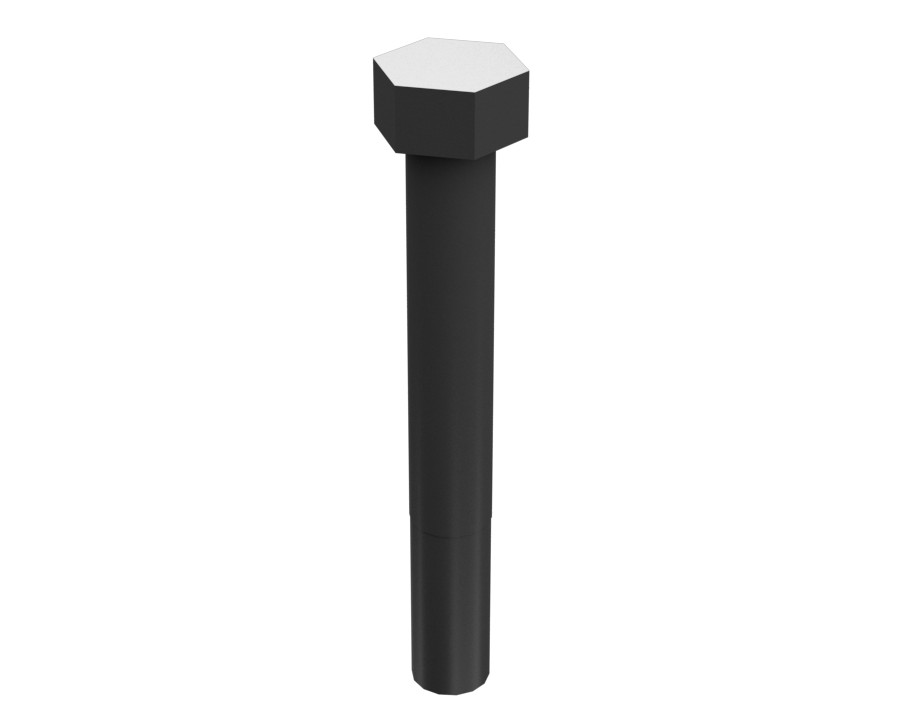

1D-4615 3/4-10 Thread Hex Head Bolt
Cat® hex head bolts securely fasten components, maintain structural integrity, and ensure a reliable mechanical connection
Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Hex head bolts/screws provide extremely strong tapping performance.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Bolt Size | 3/4 in |
|---|---|
| Thread Size | 0.750 mm (0.03 in) |
| Class or Grade | SAE J429 Grade 8 (150 ksi) |
| Thread Size (Diameter × Pitch) | 3/4×10 mm |
| Locking Feature | None |
| Thread Direction | RH |
| Bolt Length | 139.7 mm (5 1/2 in) |
| Bolt Type | Hex Head Bolt |
| Coating | Zinc Phosphate and Oil |
| Handle Length | 95.25 mm (3.75 in) |
| Material | Steel |
Compatible Equipment
- Motor Graders: 140G, 16H
- Generator Sets: 3406B, 3406C, C9
- Track Loaders: 963, 953, 824C
- Compactors: 815, 814, 816
- Dozers: D8L, D5H, D7G, D7R II, D7H, D7R, D4E, D7G2, D6R, D9L, D10, D8N
- Excavators: 621K
- Wheel Loaders: 950, 980, 992C, 992D
- Off-Highway Trucks: 785D, 773, 789, 785
Additional information
| Machine Model | 140G, 16H, 3406B, 3406C, 621K, 773, 785, 785D, 789, 814, 815, 816, 824C, 950, 953, 963, 980, 992C, 992D, C9, D10, D4E, D5H, D6R, D7G, D7G2, D7H, D7R, D7R II, D8L, D8N, D9L |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Generator Sets |
| Part Source | Genuine OEM |
