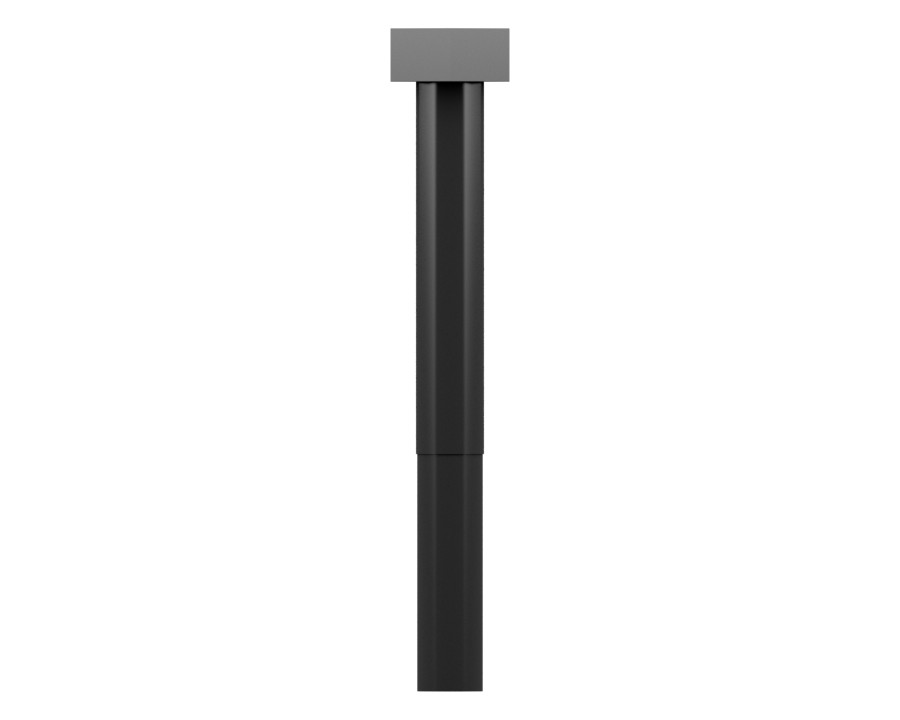

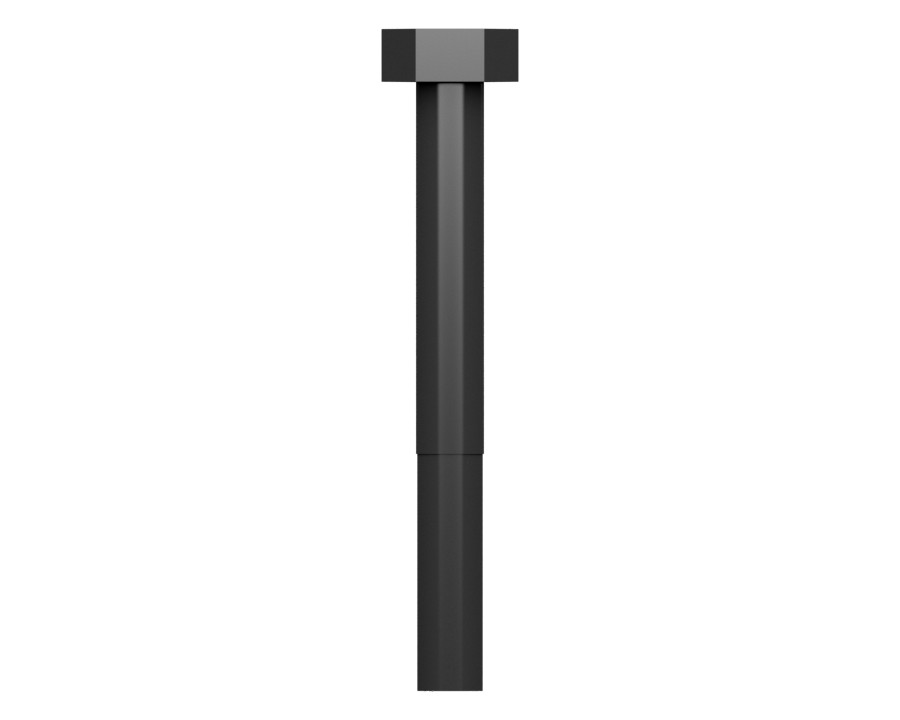

1D-4533 57.15 mm Shank Length External Hex Steel Bolt
Cat® 1/4-20" Thread External Hex Head Bolt
Description
Cat bolts form a matched system with mating hardened washers and nuts to produce consistent, high clamping force
Specifications
| Thread Direction | RH |
|---|---|
| Thread Size | 0.250 mm (0.01 in) |
| Locking Feature | None |
| Thread Size (Diameter × Pitch) | 1/4×20 mm |
| Class or Grade | SAE J429 Grade 8 (150 ksi) |
| Bolt Length | 57.15 mm (2 1/4 in) |
| Bolt Type | Hex Head Bolt |
| Coating | Zinc Phosphate and Oil |
| Handle Length | 34.925 mm (1.37 in) |
| Material | Steel |
Compatible Equipment
- Generator Sets: G3516, G3516C, 3406B, 3516C, 3512E, 3512B
- Track Loaders: 953, 992, 824C, 963
- Compactors: 815, 814, 816, CB-534D, CB-335D, CB-564D, CB-334D, C-15
- Engines: C15, C32, C13, C27, C11, C18, C175-16
- Skid Steer Loaders: 24
- Motor Graders: 120, 140G, 3606
- Wheel Excavators: M315, M320
- Dozers: D10T2, D11T
- Excavators: 3516E, 330 L, 330B, 3512C, 3508B, 3516B, 385C
- Wheel Loaders: 950, 980, 910, 834, 992C
- Off-Highway Trucks: 798 AC, 796 AC, 794 AC, 740B
Additional information
| Machine Model | 120, 140G, 24, 330 L, 330B, 3406B, 3508B, 3512B, 3512C, 3512E, 3516B, 3516C, 3516E, 3606, 385C, 740B, 794 AC, 796 AC, 798 AC, 814, 815, 816, 824C, 834, 910, 950, 953, 963, 980, 992, 992C, C-15, C11, C13, C15, C175-16, C18, C27, C32, CB-334D, CB-335D, CB-534D, CB-564D, D10T2, D11T, G3516, G3516C, M315, M320 |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Engines, Generator Sets |
| Part Source | Genuine OEM |
