Description
Cat bolts form a matched system with mating hardened washers and nuts to produce consistent, high clamping force
Specifications
| Thread Direction | RH |
|---|---|
| Locking Feature | None |
| Class or Grade | SAE J429 Grade 8 (150 ksi) |
| Thread Size (Diameter × Pitch) | 3/8×16 mm |
| Thread Size | 0.375 mm (0.015 in) |
| Bolt Length | 47.62 mm (1 7/8 in) |

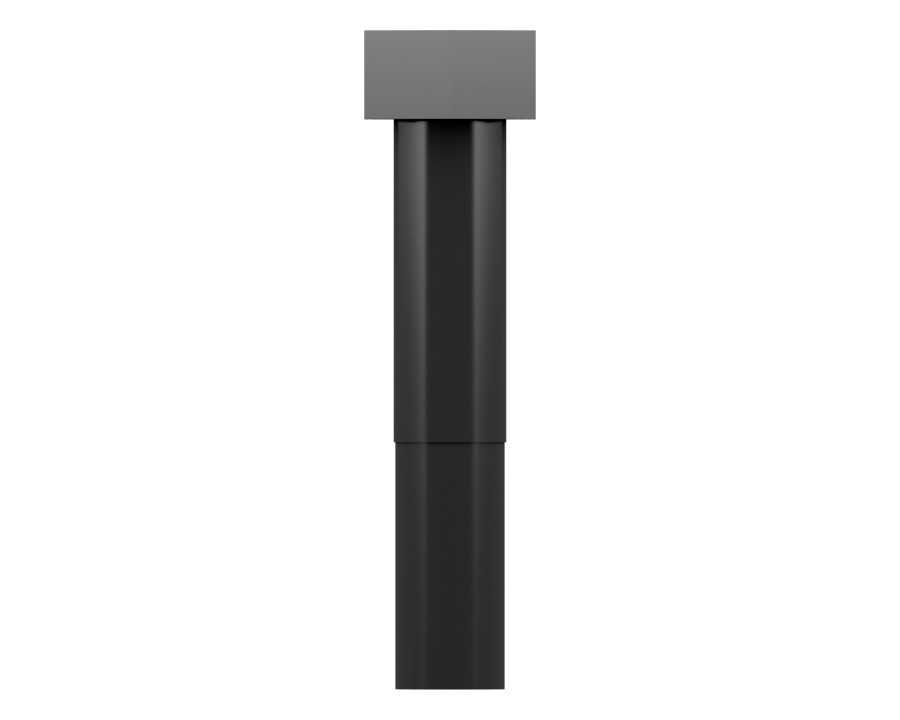

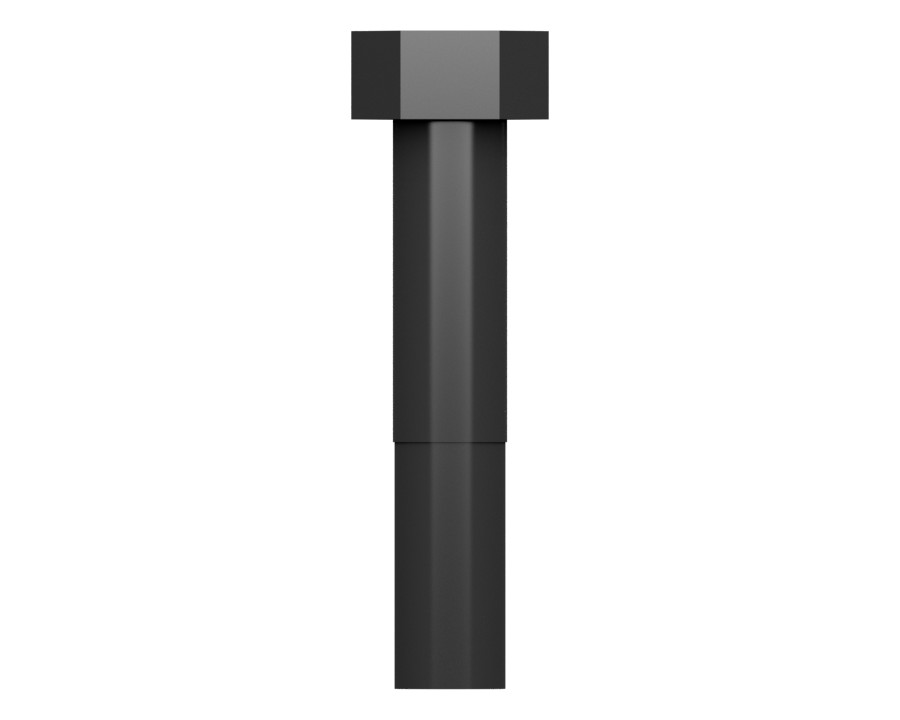

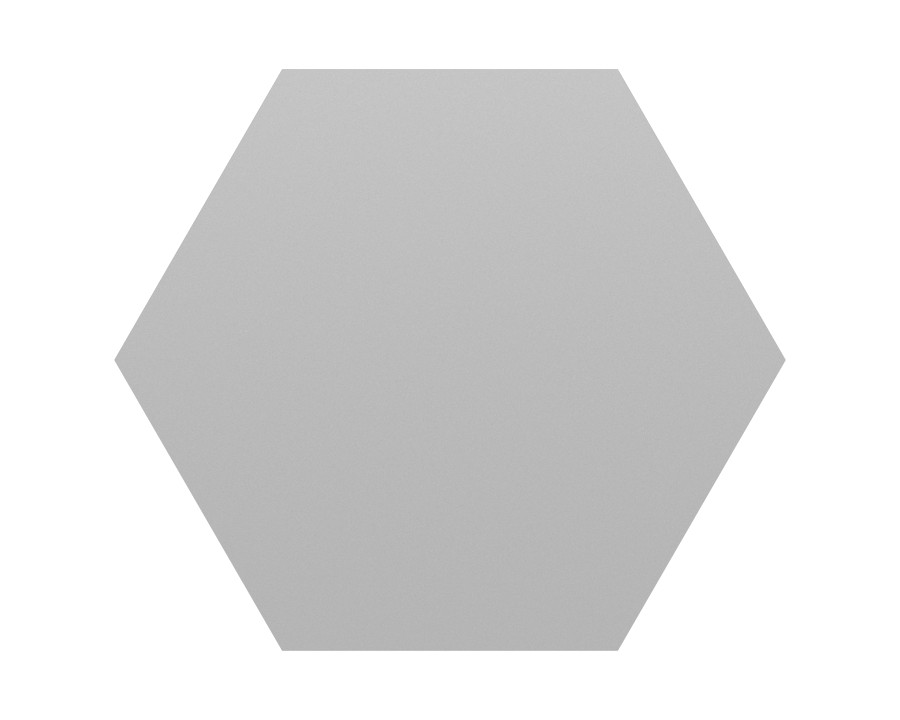

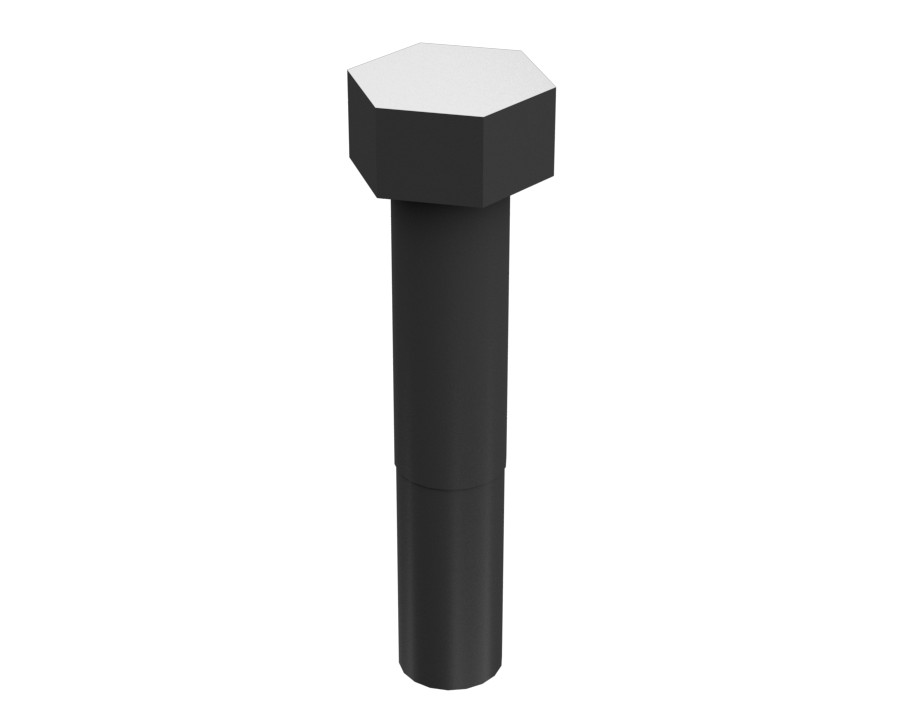

| Bolt Type | Hex Head Bolt |
| Coating | Zinc Phosphate and Oil |
| Handle Length | 26.9875 mm (1.06 in) |
| Material | Steel |
Compatible Equipment
- Generator Sets: 3406C, 3512B, 3516C, G3516, 3512E, G3516C, 3406B, C7.1
- Track Loaders: 953, 816F, 990K, 963, 826G, 826H, 992, 824C, 824G, 994K, 993, 995, 834H
- Cold Planers: PL83, PL87, PM622, PM620
- Compactors: 815, 814, 816, C-15
- Engines: C32, C15, C27, C18, C175-16
- Excavators: 3126, 3456, 637K, 3512C, 3508B, 3516E, 3516B, 6060, 350 L, 6015B, 637E, 637G, 6020B, 6030, 6040, 330 L, 330B, 6015
- Asphalt Pavers: AD45, AD63
- Skid Steer Loaders: 3126B, 24
- Motor Graders: 140G, 3606, 120, 140H, 16, 12H
- Wheel Excavators: MD6310, MD6250, MD6200
- Dozers: D7R II, D9T, D6R II, D4E, D5H, D8T, D7G, D7H, D9R, D7R, D6R, D6G, D9N, D8L, D6G2 LGP, D8N, D8R, D7G2, D10, D10R, D10N, D11T, D11R, D10T, D10T2, D11N, D11, D6G2 XL, D9L, D6T, D8, D9
- Wheel Loaders: 972G, 950, 980, 980H, 834, 980G, 966F, R1700K, R1300G, 990H, 992C, 910, 988H, 992D, 986H, 988G, 988F, 836, R1700G, R2900 XE
- Off-Highway Trucks: 777, 777D, 794 AC, 777E, 773F, 798 AC, 793D, 789D, 796 AC, 740B, 745C, 775G, 773, 785, 789, 793
