Description

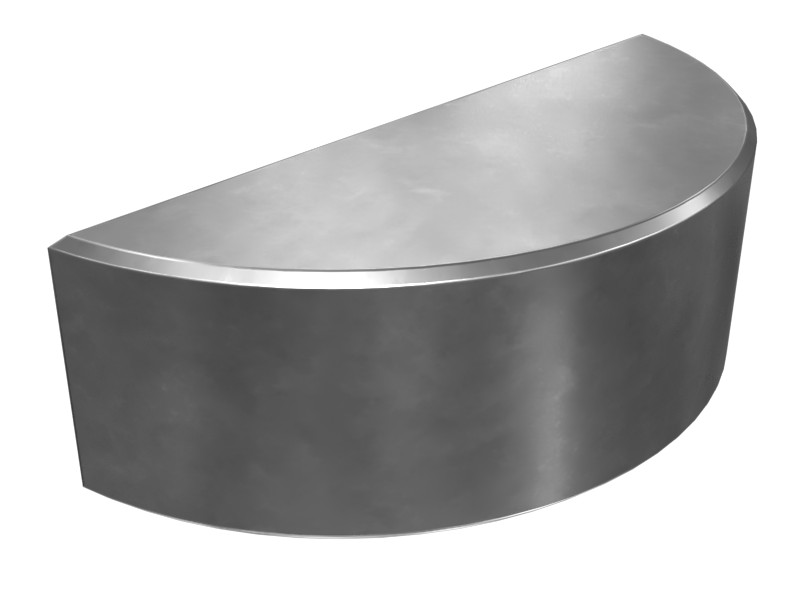

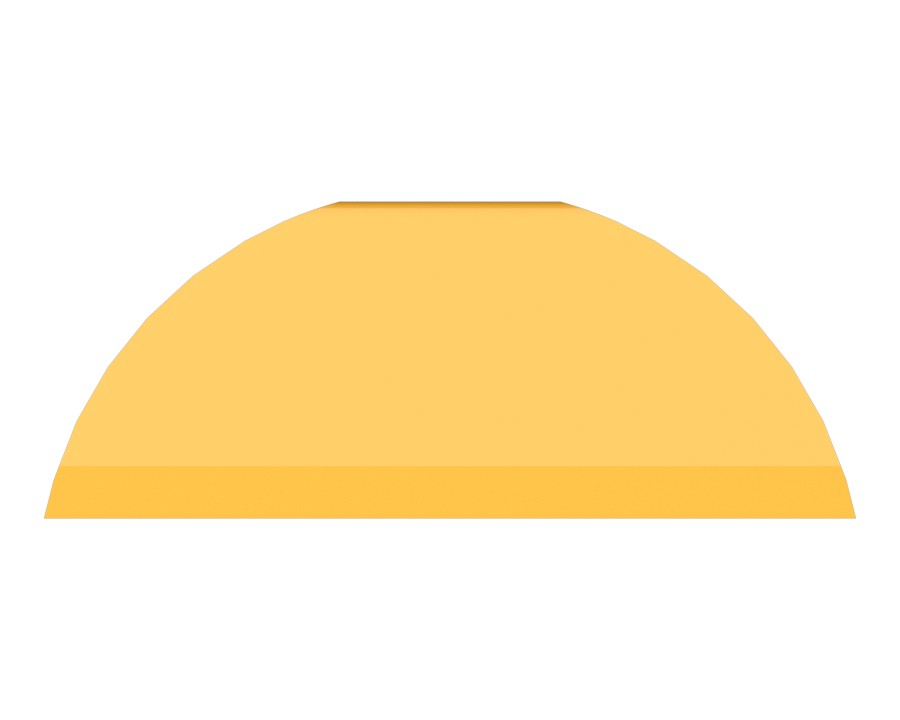

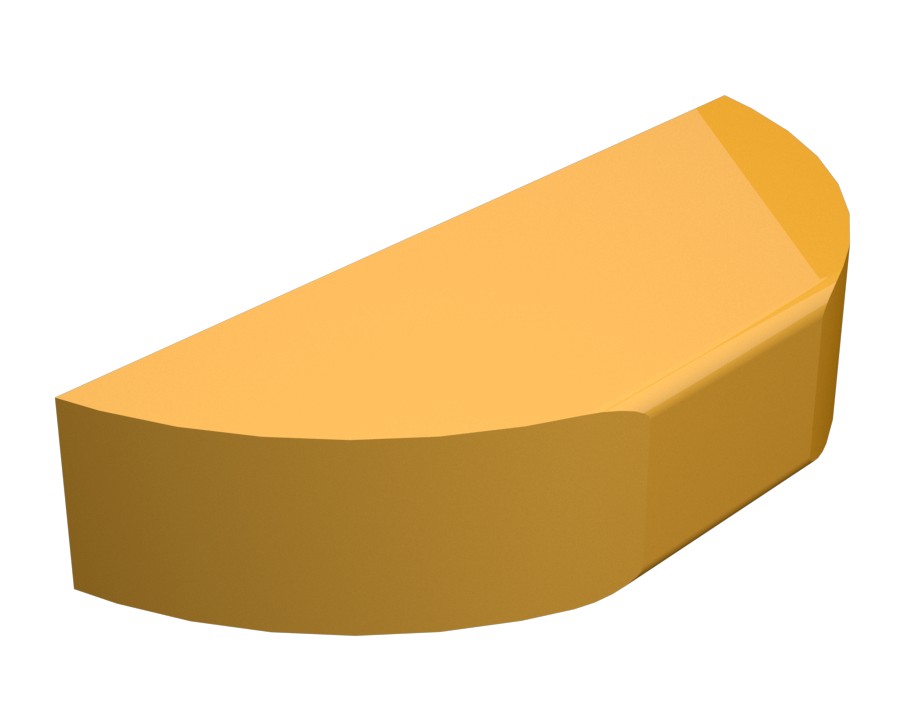

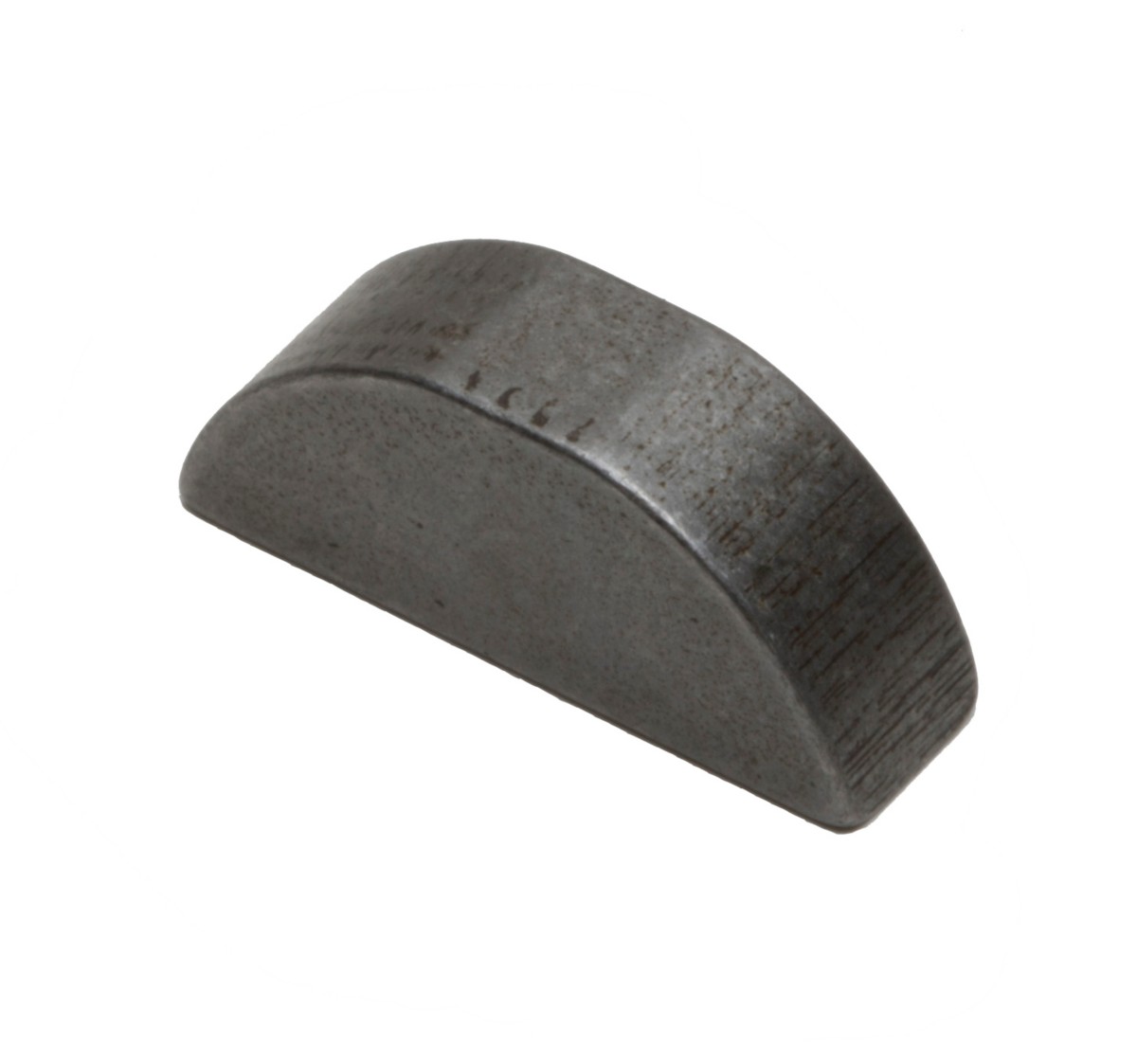

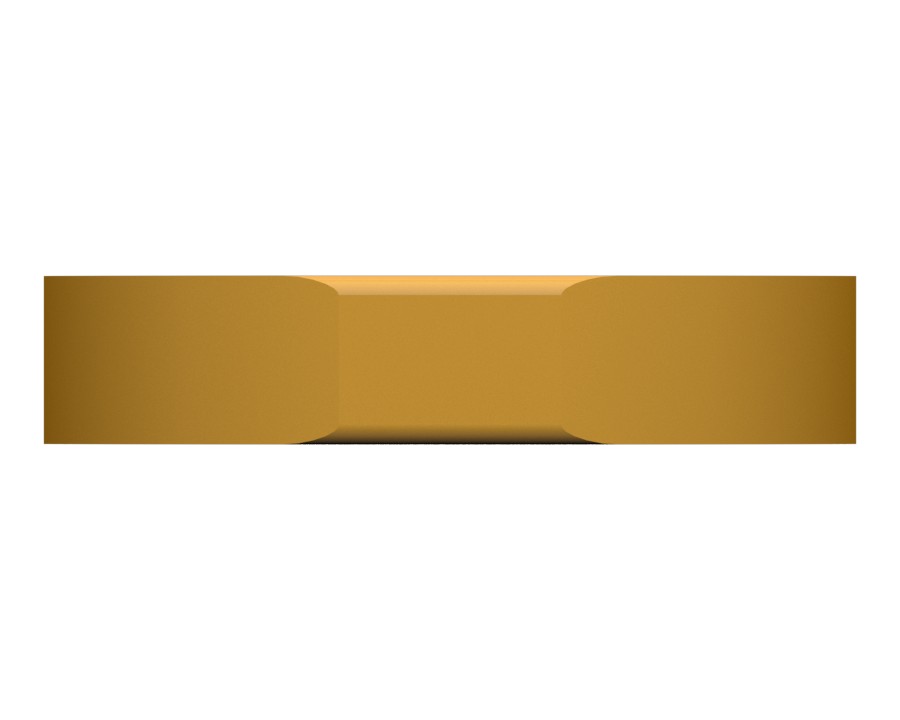

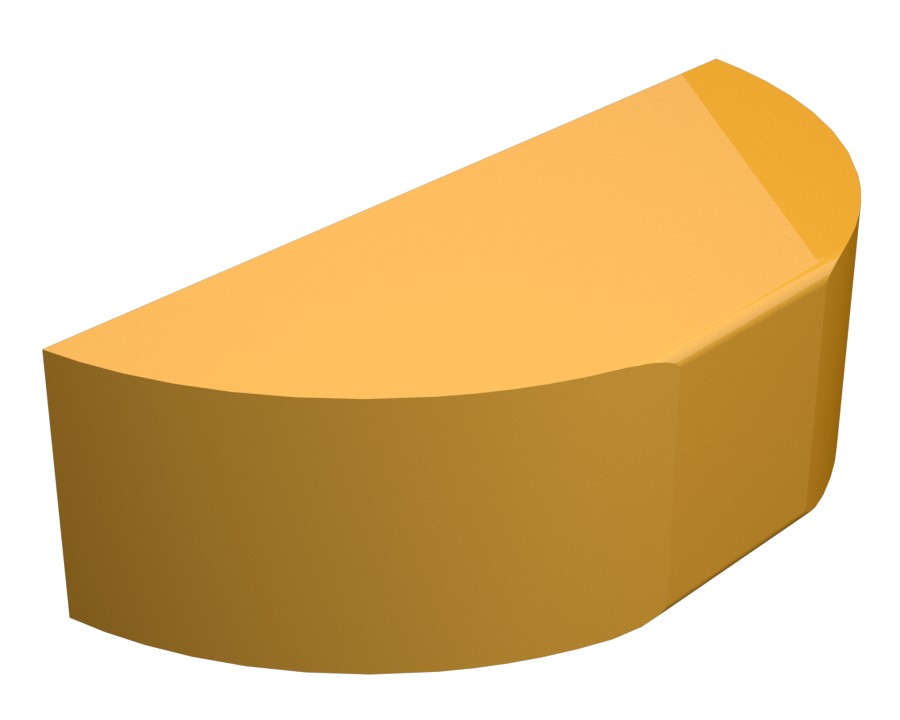

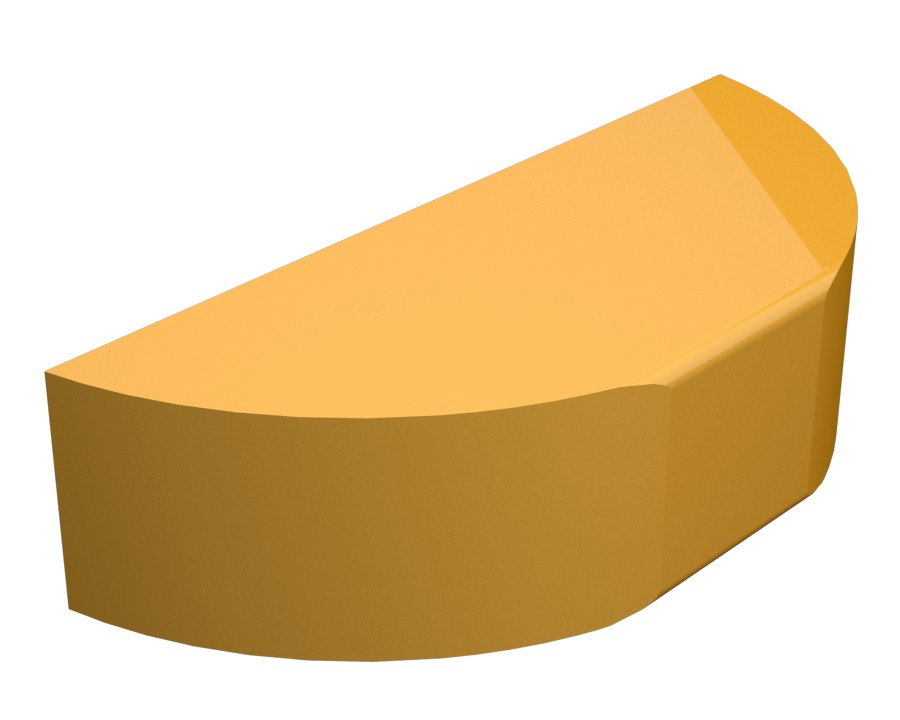

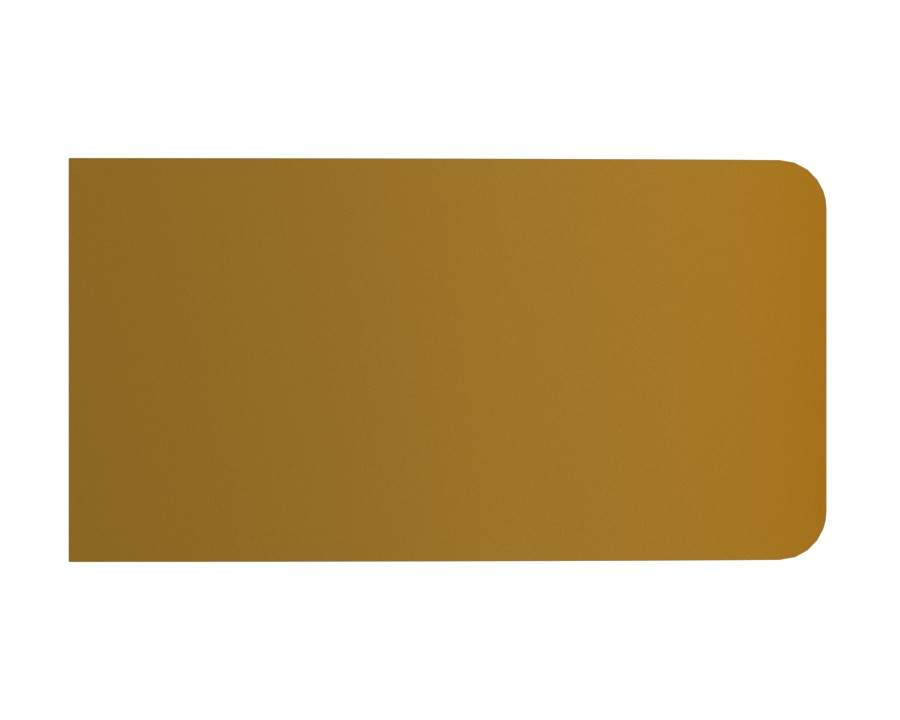

Cat® keys are used to create a no-slip system that transmits torque between a shaft and its mating rotating component. Cat keys are designed with a focus on strength and functional versatility and come in three basic shapes: square, rectangular and semicircular (Woodruff). We work closely with Cat®-certified suppliers to provide our production plants and dedicated service network with the highest quality keys. Cat keys are manufactured to precise specifications to ensure durability, reliability and high efficiency. You can count on this "Built For It" product to help you get more work done.
Features
- Keys meet or exceed ANSI, ASTM and DIN requirements
- ROHS compliant
Applications
- Used on the shaft and work together as a system to provide maximum rotational torque.
- Used in pulley hubs and power transmission systems.
- Universal product for all machine and shop applications worldwide.
Specifications
| MFG No. | 5 |
|---|---|
| Diameter – B | 5/8 in |
| Material Description | Steel Key |
| Remarks | Key Diameter: 15.75, Key Width: 3.188, Key Height: 0, Height Across Flats: 6.02 |
| Thickness – A | 1/8 in |
| Material | Alloy Steel |
Compatible Equipment
- Generator Sets: C9, 3406B, 3406C
- Track Loaders: 953, 963, 826K, 992, 826G, 816F, 824G, 982, 972, 824C
- Compactors: 814, 825K, 815, 824K, 816, 834K
- Engines: C32, C15, C18, C12
- Excavators: 3126, 120 GC, 301.6, 637E, 301.8
- Skid Steer Loaders: 3126B
- Motor Graders: 140 GC, 140K, 16, 140G, 12H, 16H, 120H, 120, 140H, 160K, 12K
- Dozers: D9L, D7R, D4E, D7H, D5M, D6N, D7G, D9R, D8L, D5H, D6M, D5G, D7G2, D10, D10N, D11R, D11N, D4G, D8R, D3G, D6G2 XL, D5N, D8N, D6G, D6G2 LGP, D10R, D9N
- Mini Excavators: 301.5
- Wheel Loaders: 950, R2900 XE, 962G, 980, 950L, 972G, 966F, 834, R1700K, 988K, 950G, 972L, 910, 962L, 980G, 980L, 966, 836, 992C, 986H, 992D, 966L, 988F
- Off-Highway Trucks: 740 GC, 745C, 777, 730, 725, 745, 773, 735, 740, 725C2
Additional information
| Machine Model | 120, 120 GC, 120H, 12H, 12K, 140 GC, 140G, 140H, 140K, 16, 160K, 16H, 301.5, 301.6, 301.8, 3126, 3126B, 3406B, 3406C, 637E, 725, 725C2, 730, 735, 740, 740 GC, 745, 745C, 773, 777, 814, 815, 816, 816F, 824C, 824G, 824K, 825K, 826G, 826K, 834, 834K, 836, 910, 950, 950G, 950L, 953, 962G, 962L, 963, 966, 966F, 966L, 972, 972G, 972L, 980, 980G, 980L, 982, 986H, 988F, 988K, 992, 992C, 992D, C12, C15, C18, C32, C9, D10, D10N, D10R, D11N, D11R, D3G, D4E, D4G, D5G, D5H, D5M, D5N, D6G, D6G2 LGP, D6G2 XL, D6M, D6N, D7G, D7G2, D7H, D7R, D8L, D8N, D8R, D9L, D9N, D9R, R1700K, R2900 XE |
|---|---|
| Equipment Type | Excavators, Mini Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Engines, Generator Sets |
| Part Source | Genuine OEM |
