Description

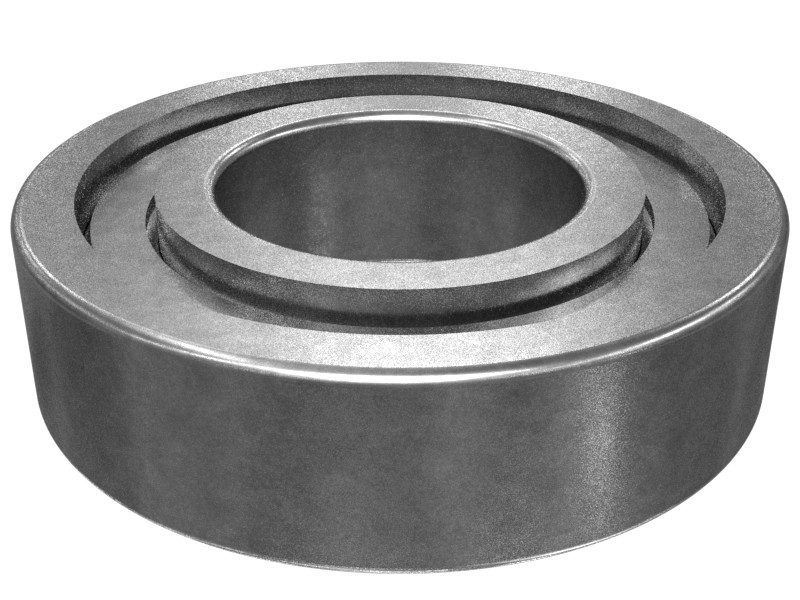

Ball bearings reduce friction between mating parts and provide protection. They are designed specifically for high-speed, low-load applications with little to no side thrust.
Features
To ensure every Cat bearing meets specific design and application requirements, Caterpillar invests significant time and money in research and development. Many of these products incorporate one or more special features not found in industry-standard bearings. The result is fewer repairs needed, with lower downtime and operating costs.
Recommended Applications:
Cat bearings are built for specific applications to ensure all power train parts work and wear as a unit.
Specifications
| Material | Alloy Steel |
|---|---|
| Height | 16 mm (0.63 in) |
| Inside Diameter | 30 mm (1.18 in) |
| Outside Diameter | 62 mm (2.44 in) |
Compatible Equipment
- Generator Sets: C4.4, 3406B, 3406C, C9, C7.1
- Track Loaders: 826K, 826H, 824C, 816F, 834H, 982, 993
- Cold Planers: PM622, PM-200, PL83, PM620, PL87
- Compactors: 825K, 824K, 834K, C13B, C-15
- Engines: C15, C13, C11, C32, C27, C18, C12
- Excavators: 3456, 390D L, 374D L, 349D, 349D2 L, 349D2, 374F, 390F L, 308E, 303, 308D, 349F L, 374, 657G, 637E, 637G, 637K, 352, 3508B, 3101, 345D, 385C, 345B, 345C L, 349E L, 390F, 345C, 365B, 621G, 349, 345D L, 6015 FS, 621H, 621K, 385C L, 374F L, 6015, 365C, 390D, 349E, 385B, 352F, 349D L, 385C FS, 6018, 349E L VG, 365B L, 395, 365C L, 355, 301.6, 301.8, 3516E
- Asphalt Pavers: AD30, AD45
- Motor Graders: 16, 14, 140H, 16H, 18, 16M3, 14M, 16M
- Wheel Excavators: MD6200
- Dozers: D3K2 LGP, D10N, D8N, D8T, D7R II, D8L, D9N, D8, D1, D9, D10R, D8R, D5K2 XL, D9T, D9L
- Mini Excavators: 301.5, 307D, 307C, 303.5
- Wheel Loaders: 966H, 834, 988K, 980L, 980H, 836, 972H, R1700G, R1600H, 980, 980G, 988H, 988G, RM500B, 986H, R1700K, R2900 XE, 992C, 988F, 992D, R2900G, R3000H
- Off-Highway Trucks: 777, 730, 777D, 772G, 740, 740B, 773F, 770G, 735, 771D, 725, 793F, 789, 745C, 745, 777E, 740 GC, 773D, 775G, 789D, 793, 785, 773E, 793D, 785D, 773
