Description

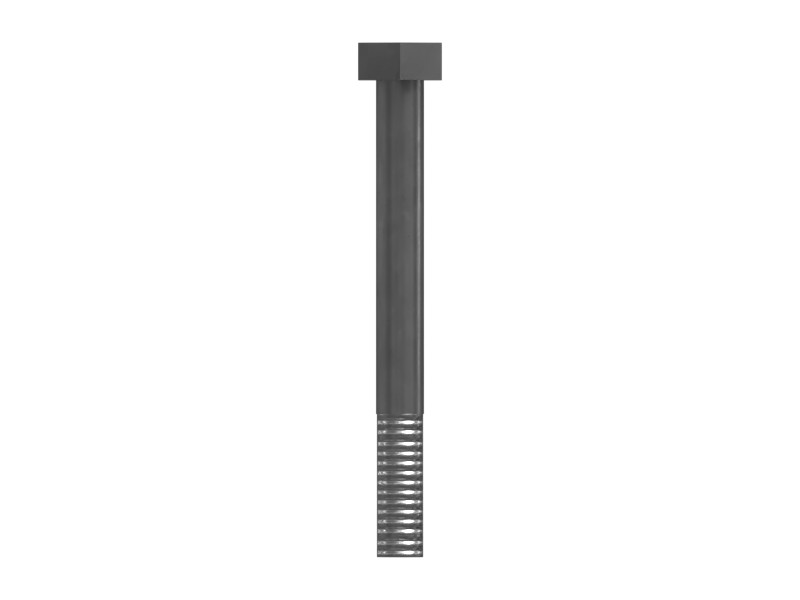

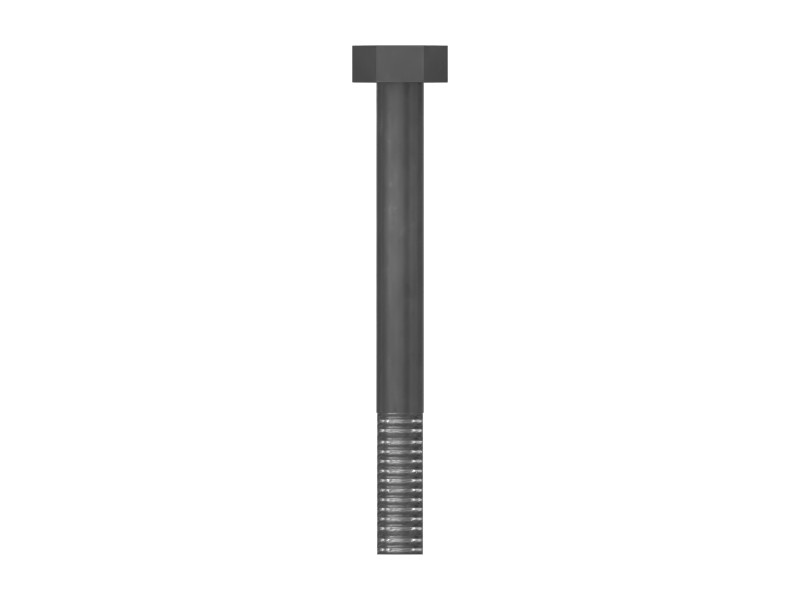

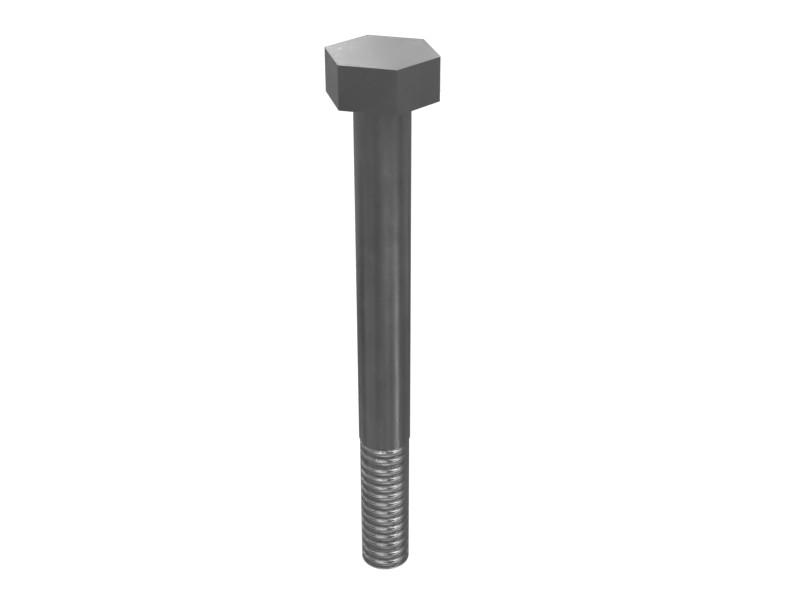

Cat bolts form a matched system with mating hardened washers and nuts to produce consistent, high clamping force
Specifications
| Thread Direction | RH |
|---|---|
| Thread Size (Diameter × Pitch) | 1/4×20 mm |
| Class or Grade | SAE J429 Grade 8 (150 ksi) |
| Locking Feature | None |
| Thread Size | 0.250 mm (0.01 in) |
| Bolt Length | 63.5 mm (2 1/2 in) |
| Bolt Type | Hex Head Bolt |
| Coating | Zinc Phosphate and Oil |
| Handle Length | 44.45 mm (1.75 in) |
| Material | Steel |
Compatible Equipment
- Motor Graders: 3606, 140G, 120
- Generator Sets: 3406C, 3512B, 3516C, G3516, 3406B, 3512E
- Track Loaders: 953, 992, 824C
- Wheel Excavators: IT14G
- Compactors: 815, 816, 814
- Engines: C15
- Dozers: D4E, D7G, D8N, D5H, D8L, D11T, D11N, D11R, D9N, D10N, D9L
- Excavators: 637E, 3512C, 3508B, 3516B
- Wheel Loaders: 924K, 950, 992C, 938K, 926M, 938M
- Off-Highway Trucks: 777, 773, 777E, 785D
- Skid Steer Loaders: 236
Additional information
| Machine Model | 120, 140G, 236, 3406B, 3406C, 3508B, 3512B, 3512C, 3512E, 3516B, 3516C, 3606, 637E, 773, 777, 777E, 785D, 814, 815, 816, 824C, 924K, 926M, 938K, 938M, 950, 953, 992, 992C, C15, D10N, D11N, D11R, D11T, D4E, D5H, D7G, D8L, D8N, D9L, D9N, G3516, IT14G |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Engines, Generator Sets |
| Part Source | Genuine OEM |
