Description
Cat bolts form a matched system with mating hardened washers and nuts to produce consistent, high clamping force
Specifications
| Material | Alloy Zinc |
|---|---|
| Thread Direction | RH |
| Handle Length – 2 | 3.75 in |
| Thread Size | 0.375 mm (0.015 in) |
| Class or Grade | SAE J429 Grade 8 (150 ksi) |
| Surface Finish | Phosphate and Oil Coating |
| Head Width – 5 | 0.56 in |
| Bolt Overall Length – 3 | 4 3/4 in |
| Locking Feature | 0 |
| Hole Thread Pitch | 16 |
| Overall Length | 120.65 mm |
| Grade | 8 |
| Head Height | 7.14375 mm |
| Material Description | SAE J429 Grade 8 (ISO Class 10.9) |
| Thread Size (Diameter × Pitch) | 3/8×16 mm |
| Drive Chain | 14.2875 mm |
| Head Height – 4 | 0.29 in |
| Bolt Length | 120.65 mm (4.75 in) |

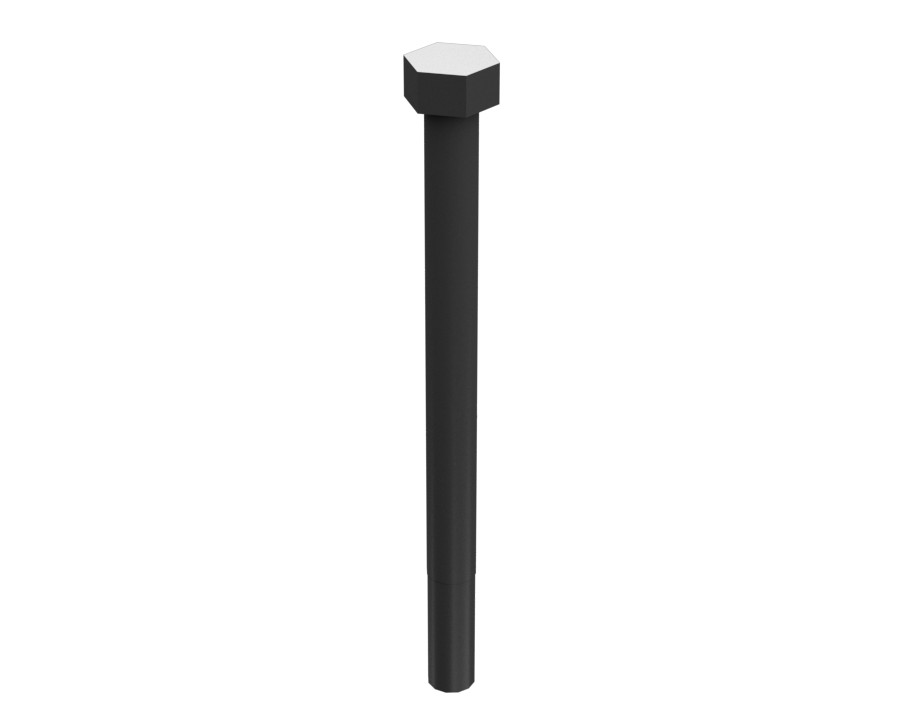

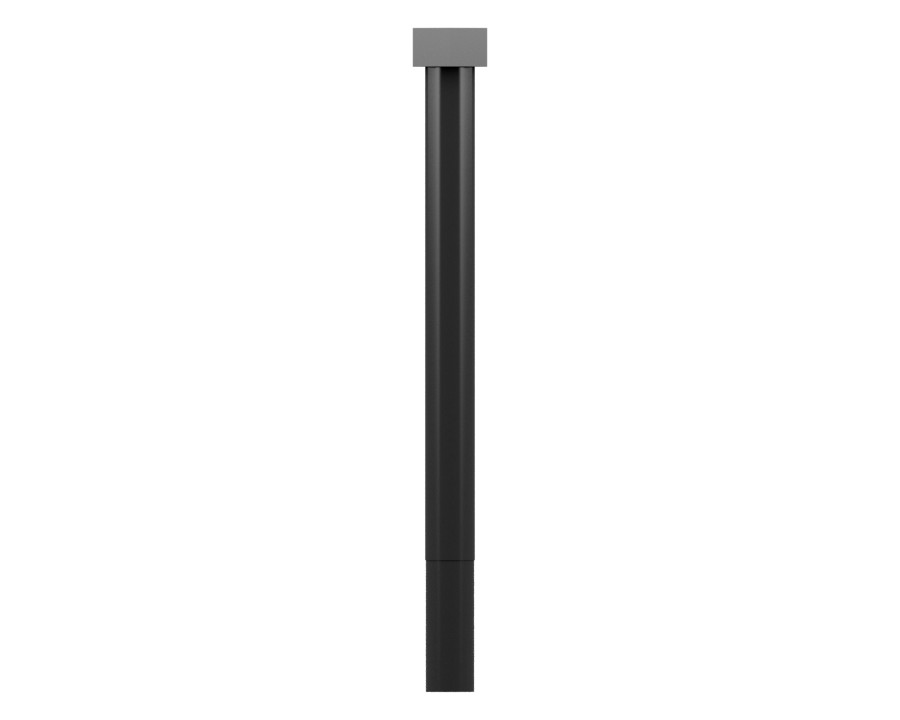

| Bolt Type | Hex Head Bolt |
| Coating | Phosphate and Oil |
| Handle Length | 95.25 mm (3.75 in) |
| Thread | Coarse Thread UNC |
| Thread Size (in – TPI) | 3/8 – 16 in |
Compatible Equipment
- Generator Sets: 3512B, 3516C, G3516C, G3516, 3512E, 3406B, 3406C, C4.4
- Track Loaders: 963, 953, 824C, 826G, 826H, 990K, 992, 994K, 826K, 995, 993, 824G, 834H
- Compactors: 814, 815, 824K, 825K, 816, 834K, C-15
- Engines: C32, C15, C27, C18
- Excavators: 3456, 390F L, 374F, 374, 3516B, 3508B, 390F, 3512C, 3516E, 385B, 374F L, 6015B, 6040, 395, 6015, 637E, 3101, 6030
- Asphalt Pavers: AD45, AD63
- Motor Graders: 3606, 16, 140G, 120
- Wheel Excavators: MD6310
- Dozers: D8R, D6T LGP, D6R, D7R II, D7G, D4E, D7R, D9R, D6T, D7H, D8L, D6R II, D7G2, D8N, D8T, D11R, D10R, D11, D6R III, D5H, D6G2 XL, D9T, D6G, D6G2 LGP, D6R LGP, D11T, D10N, D11N, D10, D10T, D9L, D6R XL, D9N
- Wheel Loaders: 834, 980H, 980G, 950, 910, 966F, R1700G, 836, R2900G, 988K, 988H, 988G, R3000H, 988F, R2900 XE, R1700 II, 990H
- Off-Highway Trucks: 785D, 789, 785, 777D, 771D, 777, 745C, 772G, 777E, 773, 789D, 770G, 740, 773E, 773F, 740B, 793D, 793, 775G, 735
Additional information
| Machine Model | 120, 140G, 16, 3101, 3406B, 3406C, 3456, 3508B, 3512B, 3512C, 3512E, 3516B, 3516C, 3516E, 3606, 374, 374F, 374F L, 385B, 390F, 390F L, 395, 6015, 6015B, 6030, 6040, 637E, 735, 740, 740B, 745C, 770G, 771D, 772G, 773, 773E, 773F, 775G, 777, 777D, 777E, 785, 785D, 789, 789D, 793, 793D, 814, 815, 816, 824C, 824G, 824K, 825K, 826G, 826H, 826K, 834, 834H, 834K, 836, 910, 950, 953, 963, 966F, 980G, 980H, 988F, 988G, 988H, 988K, 990H, 990K, 992, 993, 994K, 995, AD45, AD63, C-15, C15, C18, C27, C32, C4.4, D10, D10N, D10R, D10T, D11, D11N, D11R, D11T, D4E, D5H, D6G, D6G2 LGP, D6G2 XL, D6R, D6R II, D6R III, D6R LGP, D6R XL, D6T, D6T LGP, D7G, D7G2, D7H, D7R, D7R II, D8L, D8N, D8R, D8T, D9L, D9N, D9R, D9T, G3516, G3516C, MD6310, R1700 II, R1700G, R2900 XE, R2900G, R3000H |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Asphalt Pavers, Engines, Generator Sets |
| Part Source | Genuine OEM |
