Description

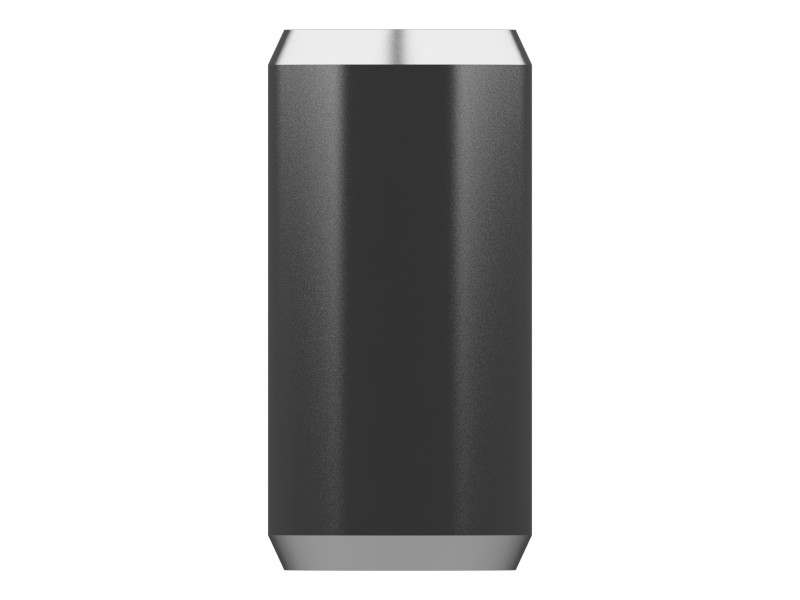

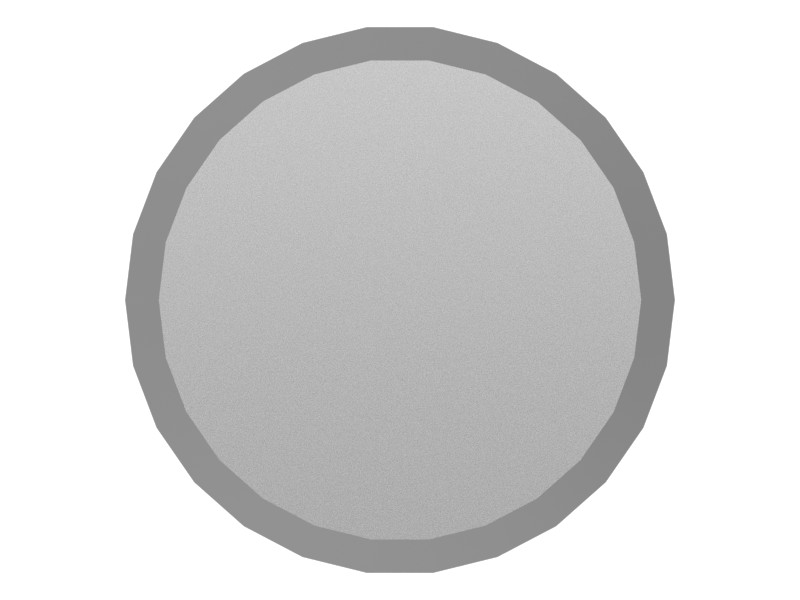

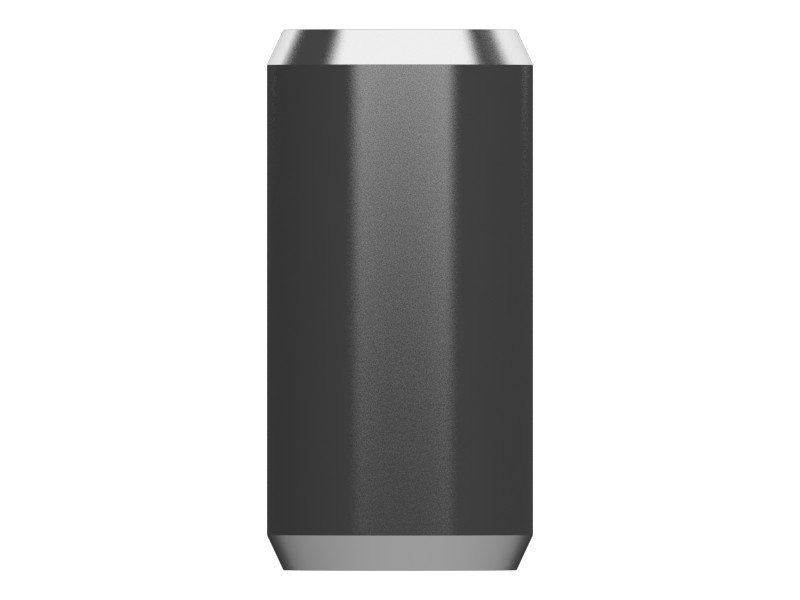

A dowel pin is a headless straight pin with a tightly controlled diameter, which can be press-fitted into one or two parts to transmit loads or fix the position of adjacent parts. Cat fasteners and hardware are designed for specific applications based on size, strength, clamping force, and past performance, information that other manufacturers do not have. They are carefully selected to last until the machine is rebuilt or reaches the end of its life. Non-Cat hardware and fasteners may appear to fit your machine, but other companies do not know your equipment the way we do.
Specifications
| Pin Type | Solid |
|---|---|
| Pin Outside Diameter | 12.54 mm (0.494 in) |
| Pin Length | 25.5 mm (1.004 in) |
| Material Description | Steel |
| Length | 25.5 mm (1 in) |
| Pin Diameter | 12.5 mm (0.49 in) |
| Material | Steel(1E1042E) |
Compatible Equipment
- Generator Sets: C4.4, 3512B, C7.1
- Motor Graders: 120, 16
- Track Loaders: 953, 826K, 826G, 824G, 816F, 834H, 972, 982, 824C, 826H, 992
- Cold Planers: PL83, PL87, PL72
- Compactors: 825K, 815, 834K, 816, 824K, 814, C9.3B
- Dozers: D6R II, D7R, D7H, D4E, D6R, D6N, D8T, D8N, D8R, D6R III, D7R II, D6R XL, D6T, D5H, D7, D8, D6T LGP, D6R LGP, D10R
- Excavators: 637K, 657G, 3508B, 3512C, 3516B, 637E
- Wheel Loaders: 966 GC, 980M, 966M, 982M, 986K, 972M
- Off-Highway Trucks: 794 AC, 773D, 775G, 793F, 772G, 740 GC, 796 AC, 740B, 725C2, 725, 773F, 770G, 745, 777D, 773E, 730, 771D, 777, 740, 735, 793D, 789D, 777E, 797F, 773, 798 AC, 745C, 793, 785
- Asphalt Pavers: AD63, AD30, AD45
Additional information
| Machine Model | 120, 16, 3508B, 3512B, 3512C, 3516B, 637E, 637K, 657G, 725, 725C2, 730, 735, 740, 740 GC, 740B, 745, 745C, 770G, 771D, 772G, 773, 773D, 773E, 773F, 775G, 777, 777D, 777E, 785, 789D, 793, 793D, 793F, 794 AC, 796 AC, 797F, 798 AC, 814, 815, 816, 816F, 824C, 824G, 824K, 825K, 826G, 826H, 826K, 834H, 834K, 953, 966 GC, 966M, 972, 972M, 980M, 982, 982M, 986K, 992, AD30, AD45, AD63, C4.4, C7.1, C9.3B, D10R, D4E, D5H, D6N, D6R, D6R II, D6R III, D6R LGP, D6R XL, D6T, D6T LGP, D7, D7H, D7R, D7R II, D8, D8N, D8R, D8T, PL72, PL83, PL87 |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Asphalt Pavers, Cold Planers, Generator Sets |
| Part Source | Genuine OEM |
