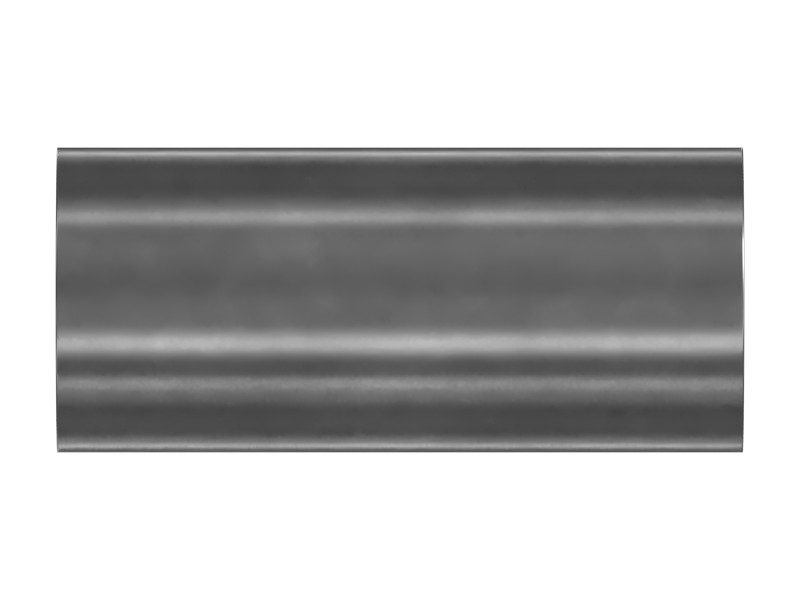

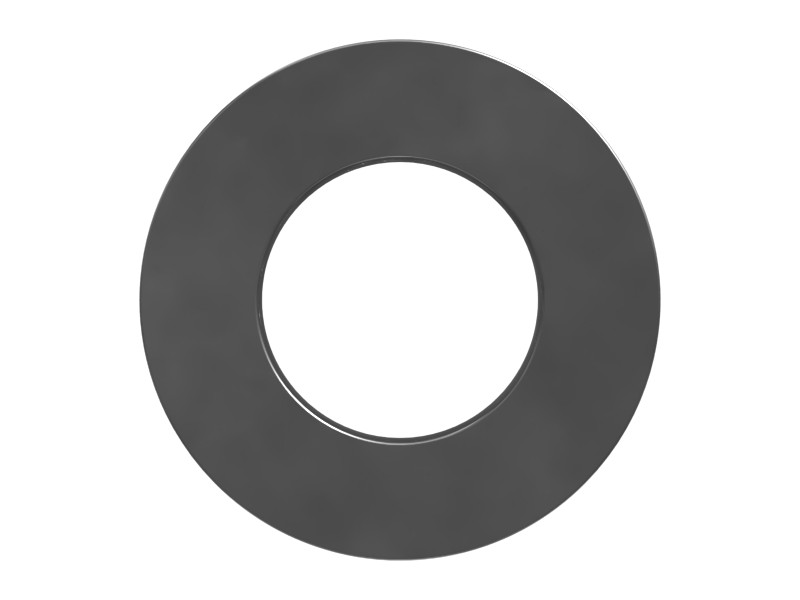

199-7854 20 mm OD Steel Shim
Cat® 45 mm overall length steel spacer used to increase fastener stretch length
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
A shim is a thick ring made of metal, rubber, or plastic that is held under a nut or bolt head to spread pressure or provide equalization between two surfaces when tightened.
Features
- Material: Hardened Steel
- Used with M10 or 3/8 in fasteners
- Outside Diameter: 20 mm (0.78 in)
- Inside Diameter: 11 mm (0.43 in)
- Length: 45 mm (1.77 in)
- Coating: Zinc
- Color: Black
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Length | 45 mm (1.77 in) |
|---|---|
| Center Hole Shape | Non-Threaded |
| Material | Carbon Steel |
| Gasket Type | Flat |
| Outside Diameter | 20 mm (0.78 in) |
| Inside Diameter | 11 mm (0.43 in) |
| Thickness | 45 mm (1.772 in) |
| Coating | Zinc Flake-Black |
Compatible Equipment
- Generator Sets: 3516C, 3512E, C9, 3406C, 3406B
- Track Loaders: 826K, 990K, 994K, 995, 993, 972, 992
- Cold Planers: PM620, PM622, PL72
- Compactors: 824K, CP12 GC, 825K, CS12 GC, C9.3B, CP11 GC, C-9
- Engines: C7, C32, C15, C27, C11, C175-16, C18
- Excavators: 374F, 330, 336D2, 308D, 374, 340, 330 GC, 326, 395, 320, 352, 315, 320 GC, 3516E, 336, 325, 657G, 315 GC, 432, 349, 374F L, 434F2, 621H, 350, 336 GC, 355, 3516B, 323, 312D2, 333, 315D L, 312D, 312D L, 336D2 L, 318D2 L, 312E L, 313D2 GC, 312D2 L, 313D2, 313D2-GC, 311D LRR, 318D2, 313F LGC, 326 GC, 303CR, 340D2 L, 326GC, 312E, 330GC, 313D, 336D2 GC, 312D2 GC, 305 CR, 328D LCR, 313F L, 303.5CR, 6040, 6030, 3101, 350MHPU, 6060, 323 GC, 345 GC, 335
- Asphalt Pavers: AD63
- Skid Steer Loaders: 3126B, 24, 313D2 LGP
- Motor Graders: 16M3, 18, 120, 14, 16, 349 GC
- Wheel Excavators: MD6310, MD6250, M315GC, M315, M320
- Dozers: D10, D6K2, D6N, D4, D7, D6T
- Mini Excavators: 303.5D
- Wheel Loaders: 986H, RM500B, M314, R2900 XE, R1600H, RM400, 836, R2900G, 980L, 966, R1700K, R1300G
- Off-Highway Trucks: 789D, 797F, 793D, 785D, 793F, 777D, 789, 796 AC, 773, 785, 777E, 775G, 794 AC, 793, 798 AC
