199-4681 Oil Level Gauge (Dipstick)
Cat® Oil Level Gauge (Dipstick) for Swing Drives, 466 mm Blade Length
Description

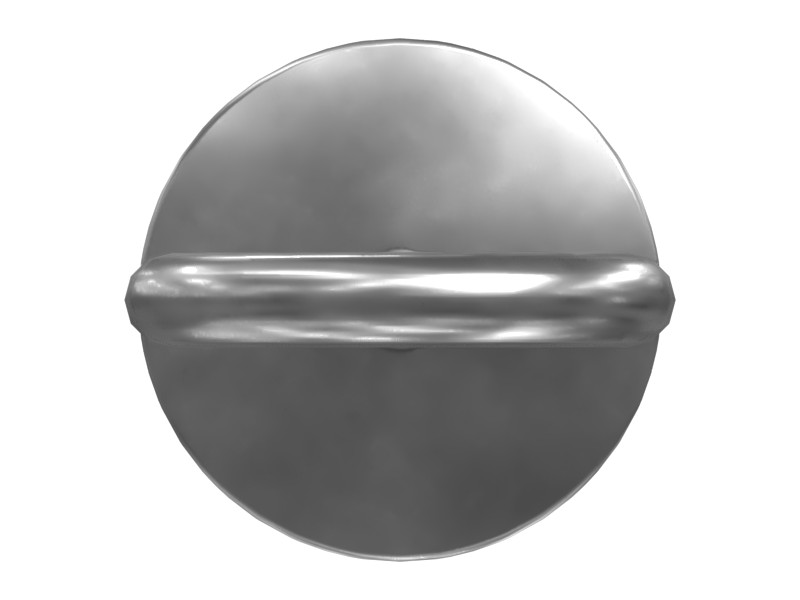

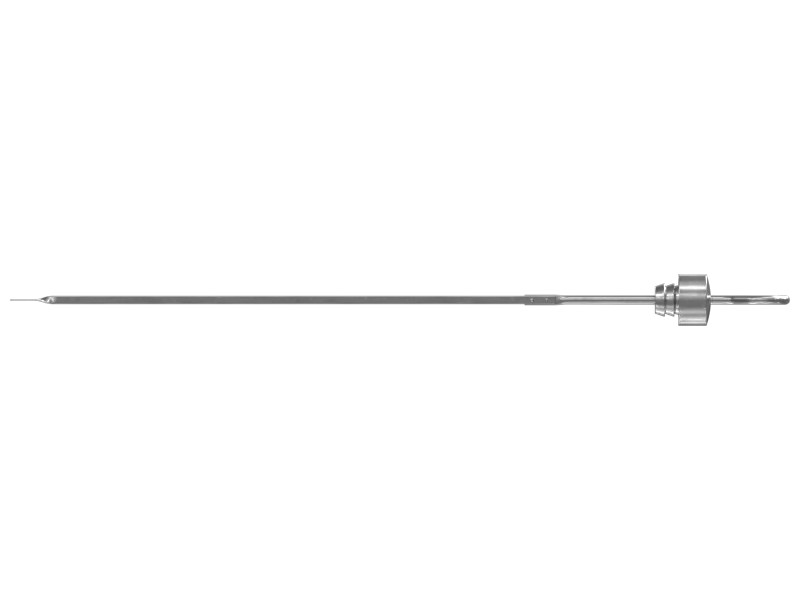

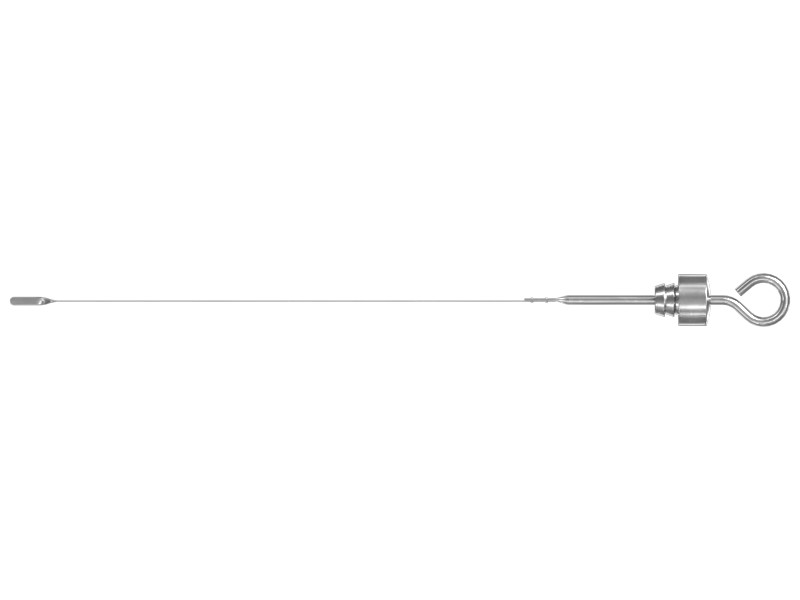

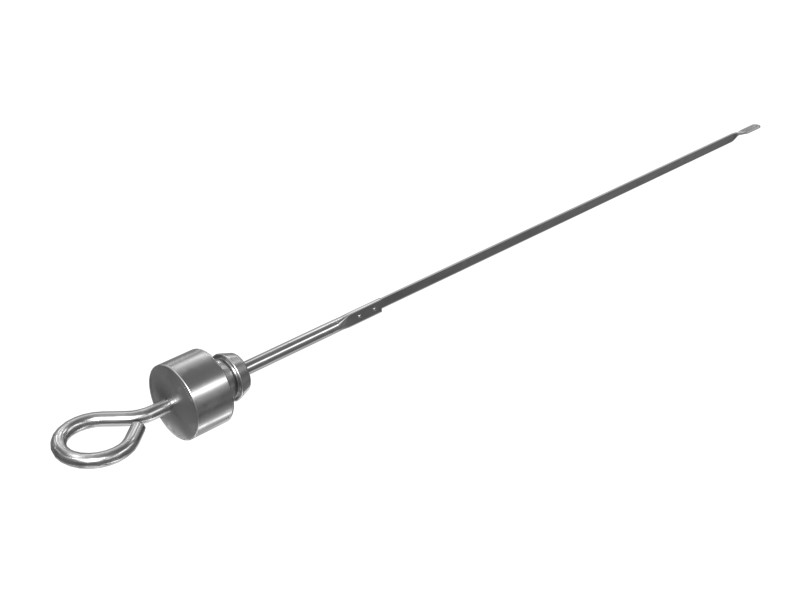

Cat oil level gauges (dipsticks) (e.g., 199-4681) are designed to give a clear, visible manual indication of the oil level in the swing drive housing. This dipstick features a press-fit handle and oil level markings on the blade.
Features
- Dipstick with steel blade
- Dipstick Type: Twisted
- Handle Type: Press Fit
- Handle Color: Yellow
- Part number and oil level markings on the blade
- Blade Length: 550 mm (21.7 in)
- Fits Tube Outside Diameter: 12.7 mm (0.5 in)
- Dipstick only
Applications
Cat oil level gauges (dipsticks) vary by application. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Features
- Dipstick Type: Dozer Blade
- Press-fit handle
- Blade Length: 466 mm (18.3 in)
- Dipstick only
Applications
Cat oil level gauges (dipsticks) vary by application. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Blade Length | 466 mm (18.3 in) |
|---|---|
| Material | Steel (Blade) |
| Overall Length | 532 mm (20.9 in) |
| Style | Press-Fit Handle |
Compatible Equipment
- Excavators: 385C, 385C L, 385C FS, 385B, 390D, 390D L
