Description

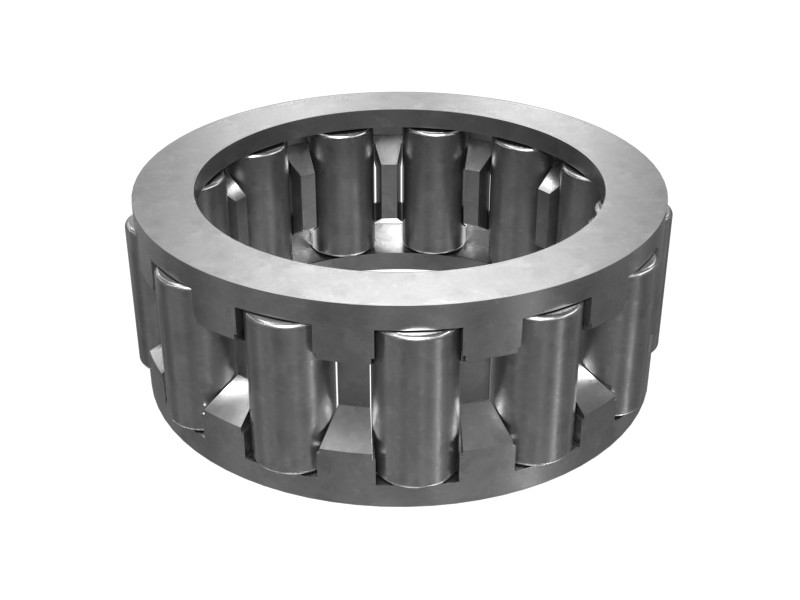

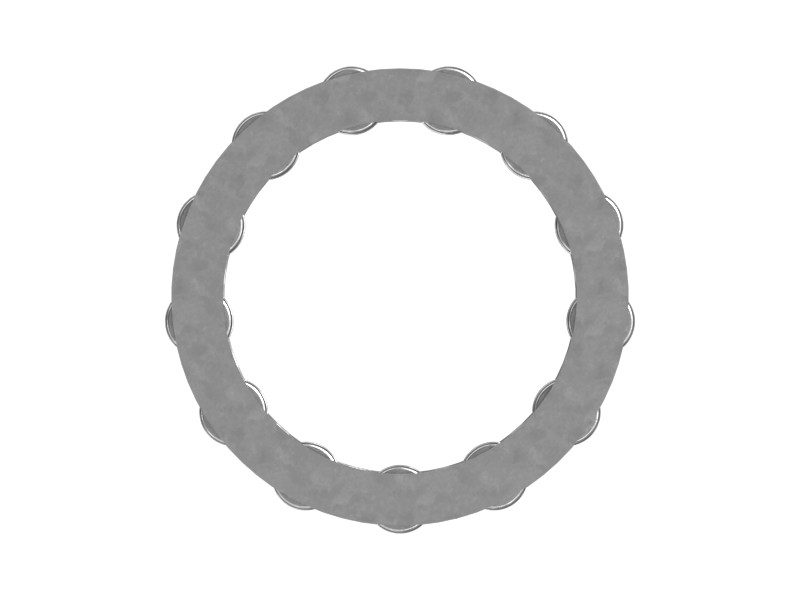

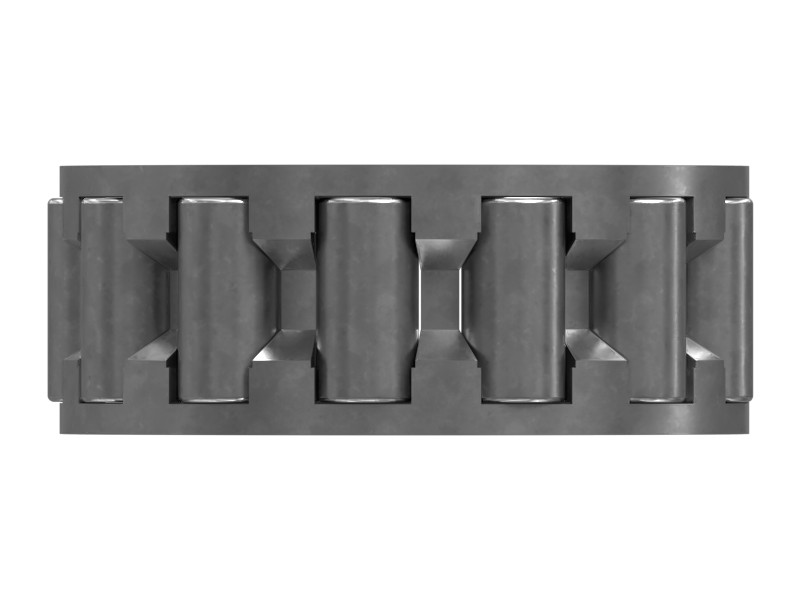

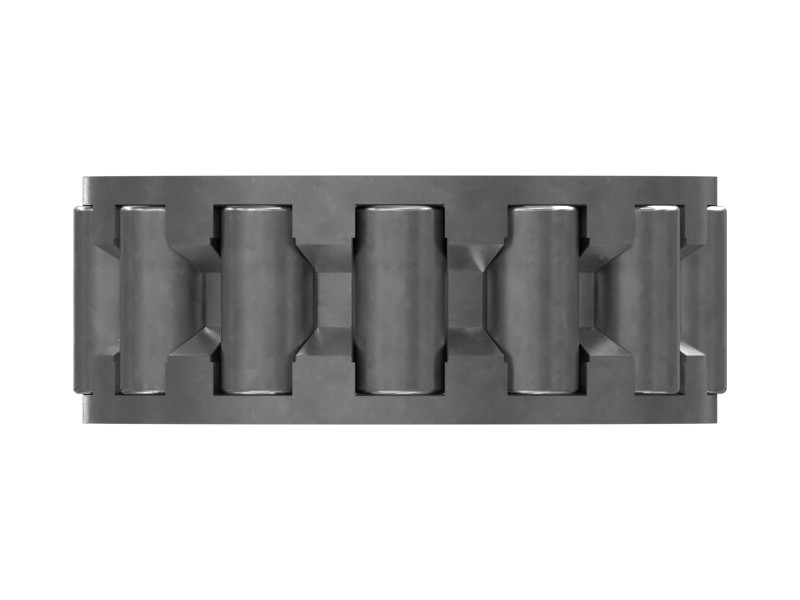

Cat radial needle roller and cage assemblies are self-contained, ready-to-install bearings suited to applications where the housing bore and shaft serve as the raceways. They support heavy loads and run smoothly and reliably at high speeds.
Features
- High load capacity and hardness.
- Supports high rotational speeds.
- Smallest cross section among rolling bearings.
- Non-separable unit, easy to handle and install.
Applications
Cat radial needle roller and cage assemblies are most commonly used in applications where the housing bore and shaft serve as the raceways. Typical applications for radial needle roller and cage assemblies are planetary gears, constant mesh gears, idler gears, and connecting rods.
Specifications
| Material | Alloy Steel |
|---|---|
| Height | 21 mm (0.827 in) |
| Inside Diameter | 39.990 mm (1.574 in) |
| Outside Diameter | 56.020 mm (2.206 in) |
Compatible Equipment
- Excavators: 330D L, 345D L, 330C L, 320D2 L, 323D L, 320C, 336D L, 330C, 325B L, 325C, 330D, 328D LCR, 345C L, 345C, 349E L, 349D L, 349E, 345D, 323D2 L, 320D GC, 320C L, 320D L, 320D2 GC, 320D2, 336D, 349D, 349D2 L, 349D2, 320D
