Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Hex head bolts/screws provide extremely strong driving capability.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality — Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are designed as a system that works together to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a performance-based system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Locking Feature | None |
|---|---|
| Class or Grade | ISO 898-1 Class 10.9 |
| Thread Direction | RH |
| Thread Size | M10 mm (0 in) |
| Thread Size (Diameter × Pitch) | M10 x 1.50 mm |
| Bolt Length | 115 mm (4.528 in) |

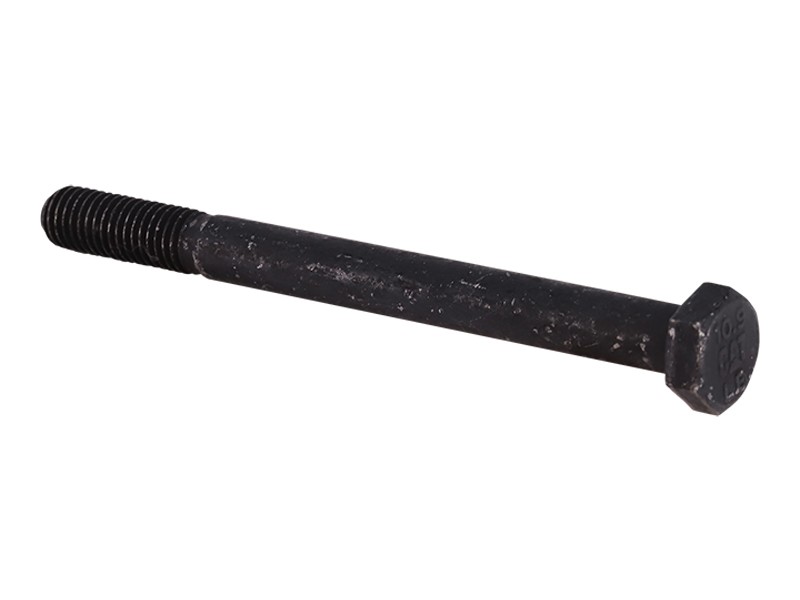

| Bolt Type | Hex Head Bolt |
| Coating | Zinc Flake (720 Hour Salt Spray Test) |
| Handle Length | 89 mm (3.504 in) |
Compatible Equipment
- Motor Graders: 160K, 140K, 12H, 120H, 140H, 16H
- Generator Sets: C9
- Track Loaders: 963, 963K
- Engines: C15, C13, C11, C7, C18
- Compactors: C-9
- Dozers: D6R III, D7R, D5K2 XL, D6R, D7R II, D7E, D6R XL, D3K2 LGP, D1
- Excavators: 637K
- Wheel Loaders: 938K, 938M, 924K, 926M
Additional information
| Machine Model | 120H, 12H, 140H, 140K, 160K, 16H, 637K, 924K, 926M, 938K, 938M, 963, 963K, C-9, C11, C13, C15, C18, C7, C9, D1, D3K2 LGP, D5K2 XL, D6R, D6R III, D6R XL, D7E, D7R, D7R II |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Compactors, Engines, Generator Sets |
| Part Source | Genuine OEM |
