Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.

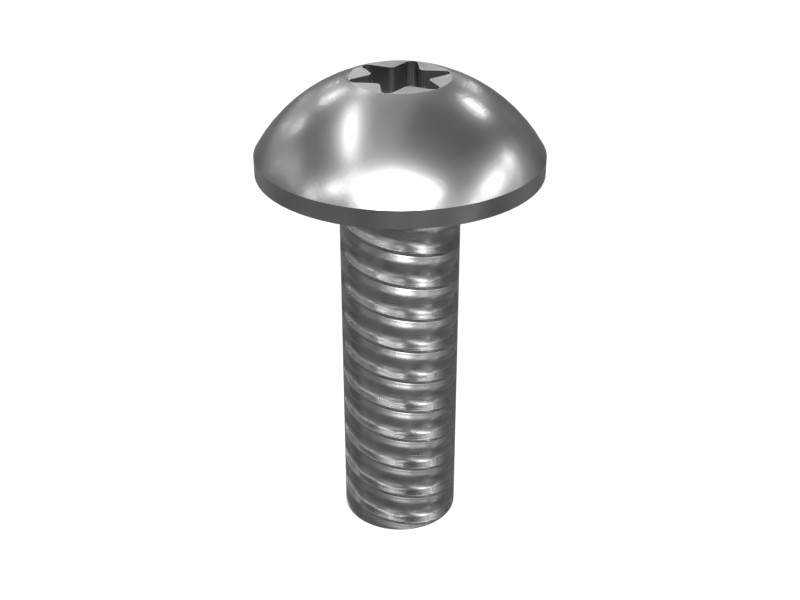

These are small internal thread-forming screws.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Thread Direction | RH |
|---|---|
| Class or Grade | ISO 898-1 Class 8.8 |
| Thread Size (Diameter × Pitch) | M5x0.8 mm |
| Bolt Length | 16 mm (0.63 in) |
| Locking Feature | None |

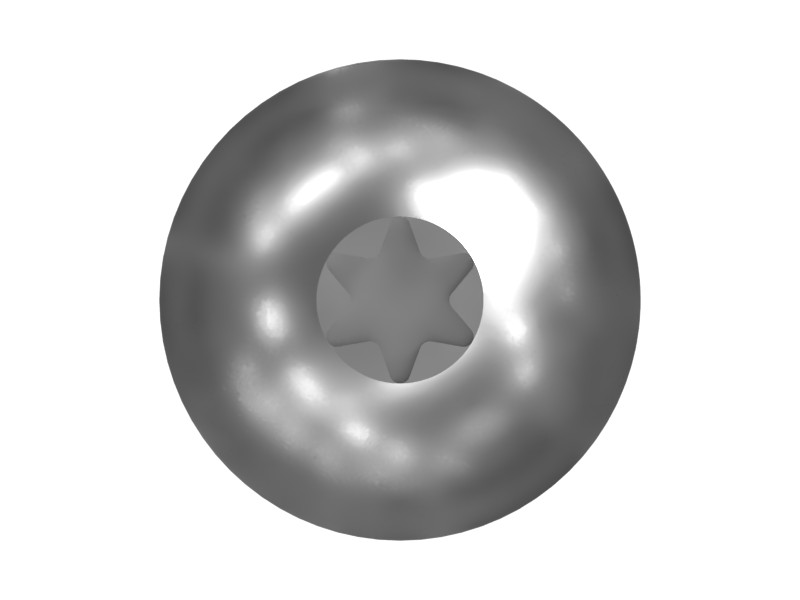

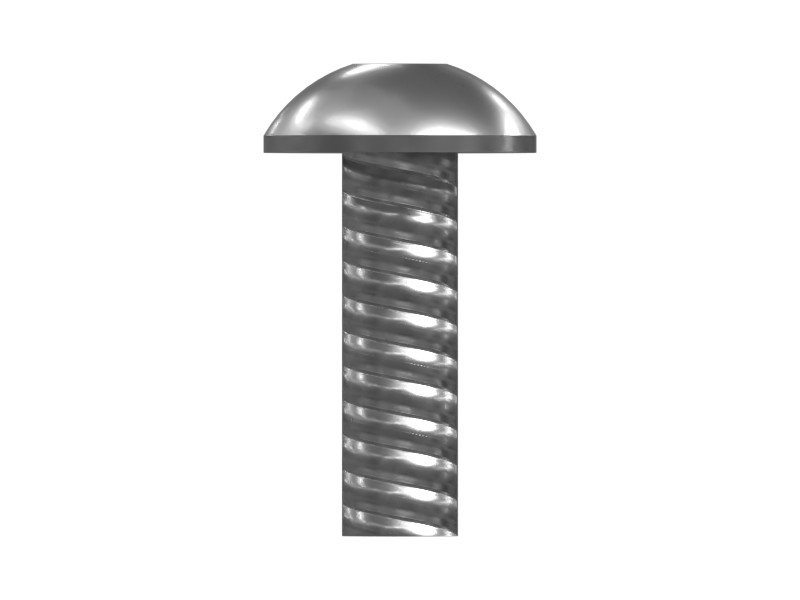

| Bolt Type | Rounded Head (Pan) |
| Material | Carbon Steel |
| Pitch | 0.8 mm |
| Handle Length | 2.4 mm (0.09 in) |
| Coating | Zinc Flake |
| Thread Size | M5 mm (0 in) |
Compatible Equipment
- Generator Sets: 3516C, 3512E, C4.4
- Cold Planers: PM622, TH360B, PM620, PL61
- Compactors: CB2.7, CB2.5, C9.3B, C13B, CB2.9, CS12, CS11, CP11 GC, CS12 GC, CB2.5 GC, CC2.7 GC, CB2.7 GC, CP12 GC
- Engines: C32, C13, C15, C175-16, C18
- Excavators: 374F, 390F L, 428F, 3516E, 434F2, 390F, 621H, 621K, 416F2, 6020B, 6015B, 312 GX, 637K, 6060, 6015, 3508B, 312 GC, 432, 6040, 374F L
- Skid Steer Loaders: 226B3, 216B3, 236B3
- Motor Graders: 120, 12K, 140K, 160K, 14
- Wheel Excavators: MD6310, MD6250, MD6200
- Dozers: D8, D8T, D8R, D10T, D3K2 LGP, D11T, D6R III, D6T, D7R II, D5K LGP, D6K2, D5K2 XL, D6R II, D4, D7, D5K XL, D7E, D6R XL, D7R, D9T, D6R
- Wheel Loaders: R1700K, RM500B, RM400, 910, R1600H, R1700 XE
- Off-Highway Trucks: 7495, 735, 730, 725
Additional information
| Machine Model | 120, 12K, 14, 140K, 160K, 216B3, 226B3, 236B3, 312 GC, 312 GX, 3508B, 3512E, 3516C, 3516E, 374F, 374F L, 390F, 390F L, 416F2, 428F, 432, 434F2, 6015, 6015B, 6020B, 6040, 6060, 621H, 621K, 637K, 725, 730, 735, 7495, 910, C13, C13B, C15, C175-16, C18, C32, C4.4, C9.3B, CB2.5, CB2.5 GC, CB2.7, CB2.7 GC, CB2.9, CC2.7 GC, CP11 GC, CP12 GC, CS11, CS12, CS12 GC, D10T, D11T, D3K2 LGP, D4, D5K LGP, D5K XL, D5K2 XL, D6K2, D6R, D6R II, D6R III, D6R XL, D6T, D7, D7E, D7R, D7R II, D8, D8R, D8T, D9T, MD6200, MD6250, MD6310, PL61, PM620, PM622, R1600H, R1700 XE, R1700K, RM400, RM500B, TH360B |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Skid Steer Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Cold Planers, Engines, Generator Sets |
| Part Source | Genuine OEM |
