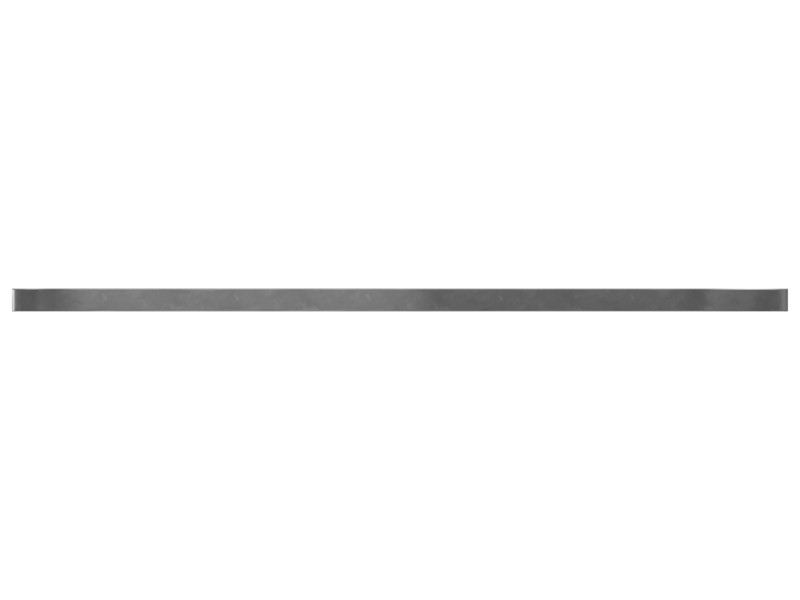

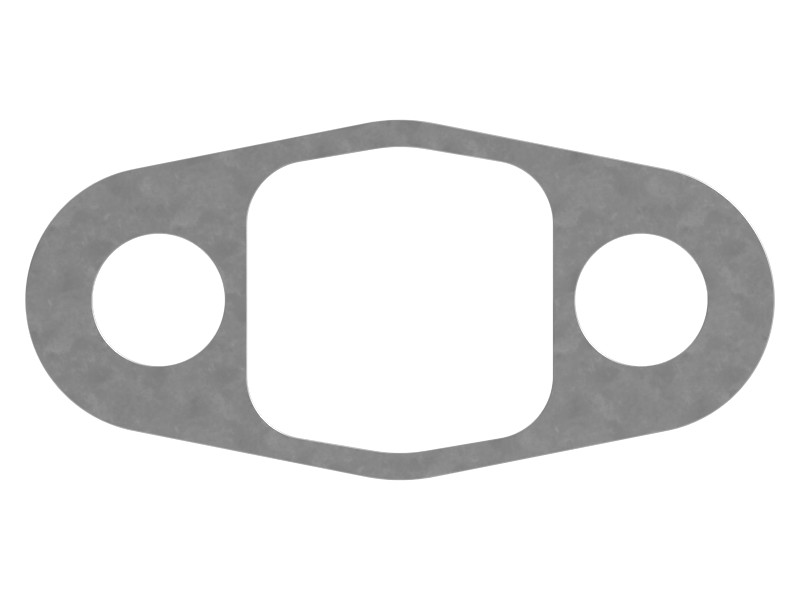

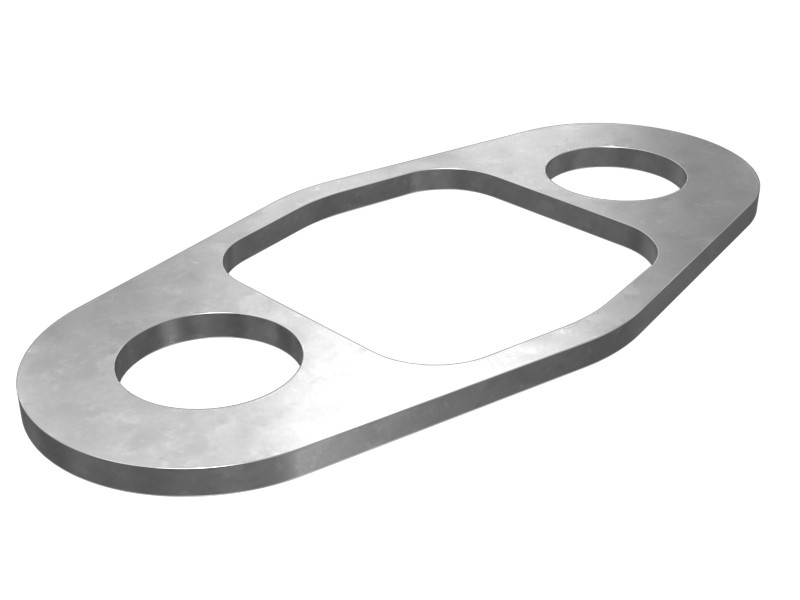

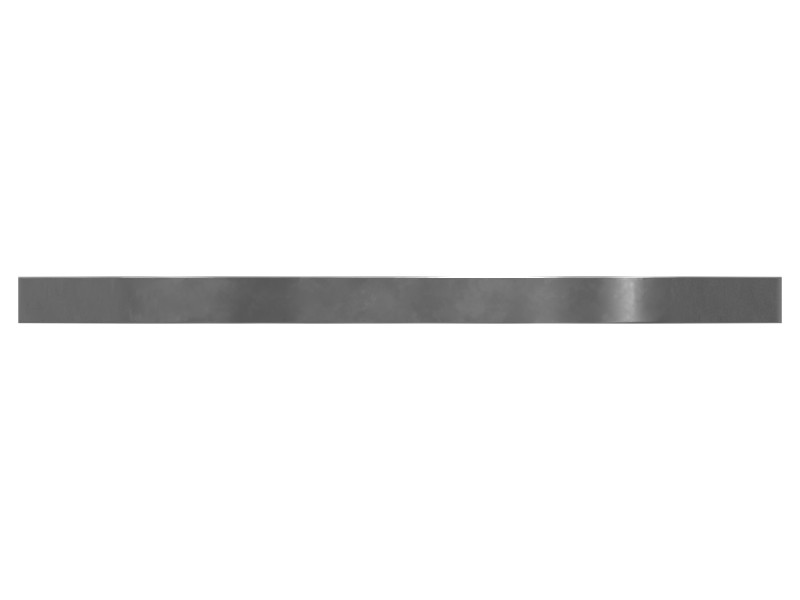

198-6068 1.71 mm Thick Edge-Bonded Gasket
Cat® Rubber-Bonded Zinc Plated Steel Carrier Edge-Bonded Sealing Gasket for Turbocharger and Cylinder Head Oil Lines
Description
Cat® edge-bonded seals are used in static sealing applications and are designed with rubber bonded to a plastic or metal carrier to prevent leakage and contamination.
Features
Cat edge-bonded seals are easy to assemble, offer high bolt load retention and conform better to the surfaces of mating parts. Cat edge-bonded seals are made of materials compatible with the fluids, temperatures and pressures in Cat engines and machines. These materials resist wear and extrusion and give the seal excellent compression set resistance. Genuine Cat seals protect your investment.
Specifications
| Material | Rubber and Steel |
|---|---|
| Overall Width | 28 mm |
| Overall Length | 59 mm |
| Length | 2.3 in |
| Temperature | -40 to 175 °C |
| Height | 0.04 in |
| Material Thickness | 1.71 mm (0.067 in) |
| Primary Seal Material | FKM |
| Seal Shape | 2-Bolt Flange |
| Material Description | FKM rubber has a service temperature range of -40 to 150C and is resistant to air, fuel (including biodiesel), lubricants and engine oil. FKM rubber should not be used in applications requiring water or coolant resistance. |
Compatible Equipment
- Generator Sets: 3406B, 3406C
- Track Loaders: 990K, 826H, 824C, 824G, 826G, 992, 993
- Cold Planers: PM-200, PM620, PM622
- Engines: C15, C32, C27, C18
- Excavators: 3456, 374, 637K, 6020B, 6015B, 395, 6015
- Skid Steer Loaders: 24
- Motor Graders: 140H
- Wheel Excavators: MD6200, MD6250, MD6310
- Compactors: C-15
- Dozers: D7R II, D9T, D10R
- Wheel Loaders: 988G, 988F, RM500B, 980H, 836, 980G, 990H
- Off-Highway Trucks: 773E, 777D, 740, 725, 773D, 777E, 745, 735, 745C, 740B, 773F, 740 GC, 773, 777
Additional information
| Machine Model | 140H, 24, 3406B, 3406C, 3456, 374, 395, 6015, 6015B, 6020B, 637K, 725, 735, 740, 740 GC, 740B, 745, 745C, 773, 773D, 773E, 773F, 777, 777D, 777E, 824C, 824G, 826G, 826H, 836, 980G, 980H, 988F, 988G, 990H, 990K, 992, 993, C-15, C15, C18, C27, C32, D10R, D7R II, D9T, MD6200, MD6250, MD6310, PM-200, PM620, PM622, RM500B |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Cold Planers, Engines, Generator Sets |
| Part Source | Genuine OEM |
