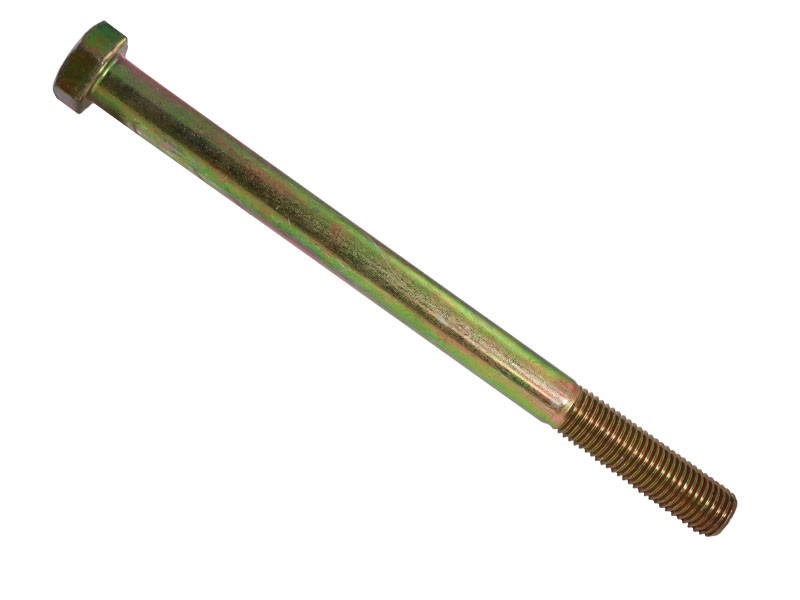

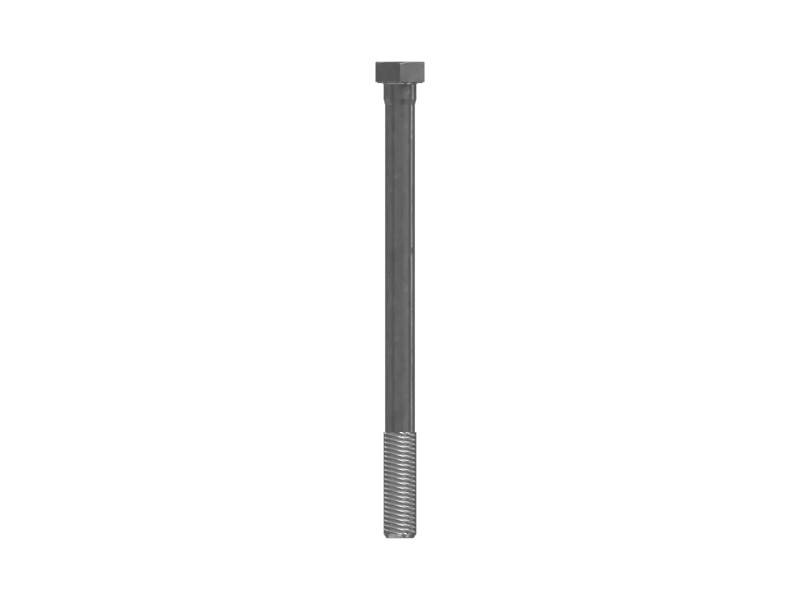

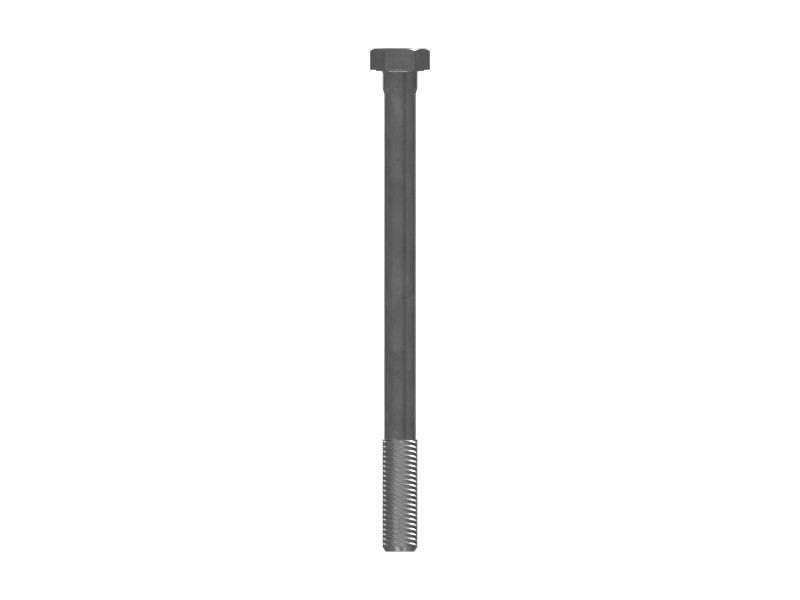

198-6003 M20x2.5 Hex Head Bolt
Cat® Hex Head Bolt for Hydraulic Frame Leveling Cylinders, Securely Fastens Cylinders to Keep Equipment Precisely Level
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Hex head bolts/screws provide extremely strong tapping performance.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Thread Direction | RH |
|---|---|
| Locking Feature | None |
| Class or Grade | ISO 898-1 Class 10.9 |
| Thread Size | M20 mm (0 in) |
| Thread Size (Diameter × Pitch) | M20x2.5 mm |
| Bolt Length | 280 mm (11.024 in) |

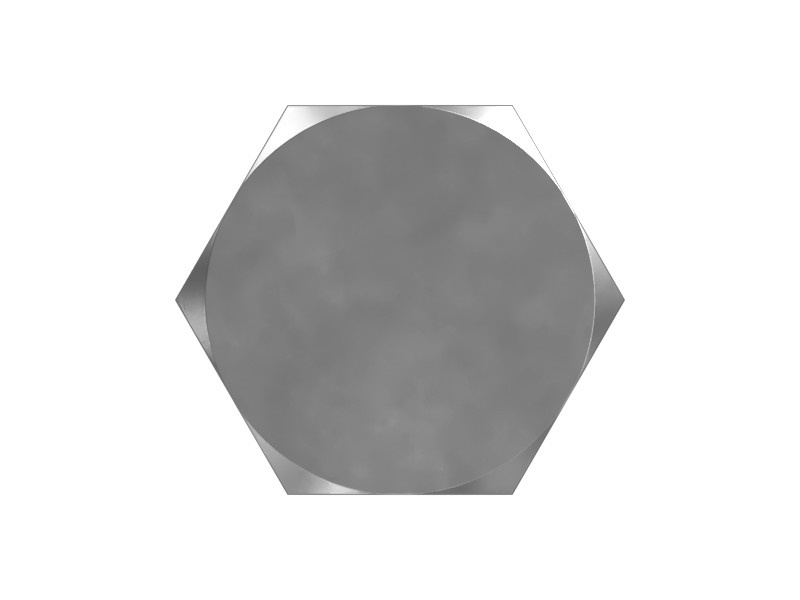

| Bolt Type | Hex Head |
| Coating | Zinc |
| Handle Length | 215 mm (8.465 in) |
Compatible Equipment
- Cold Planers: TH360B
- Mini Excavators: 302CR
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
