Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating washers and nuts to produce consistent, high clamping force. You can rely on Cat fasteners to help you build, maintain or rebuild – for most machine and shop applications around the world.
Specifications

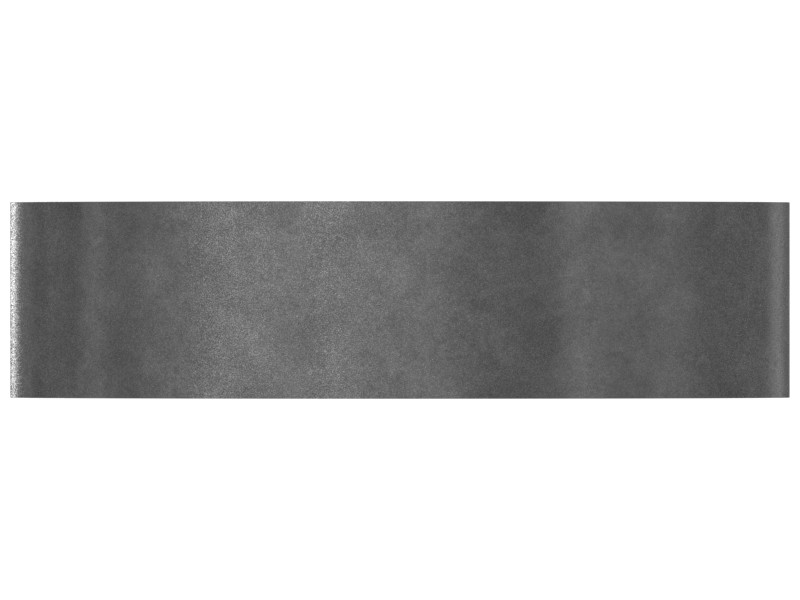

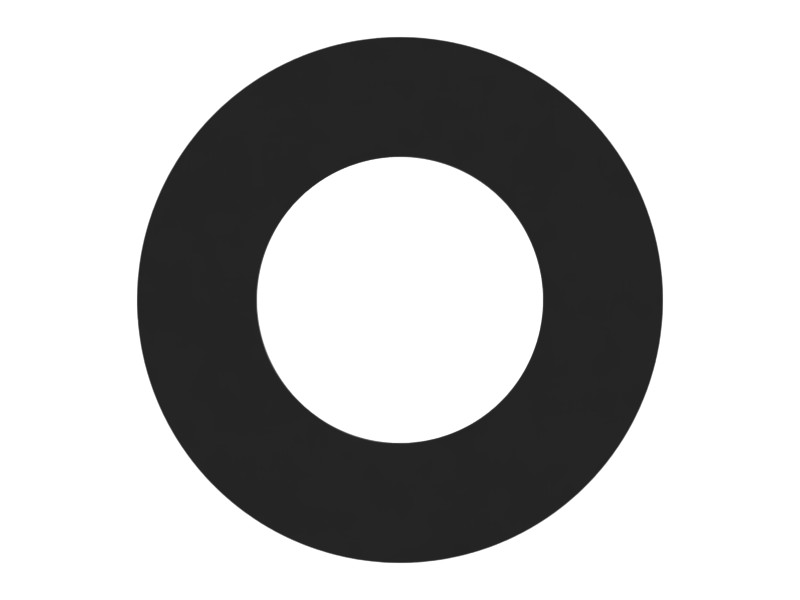

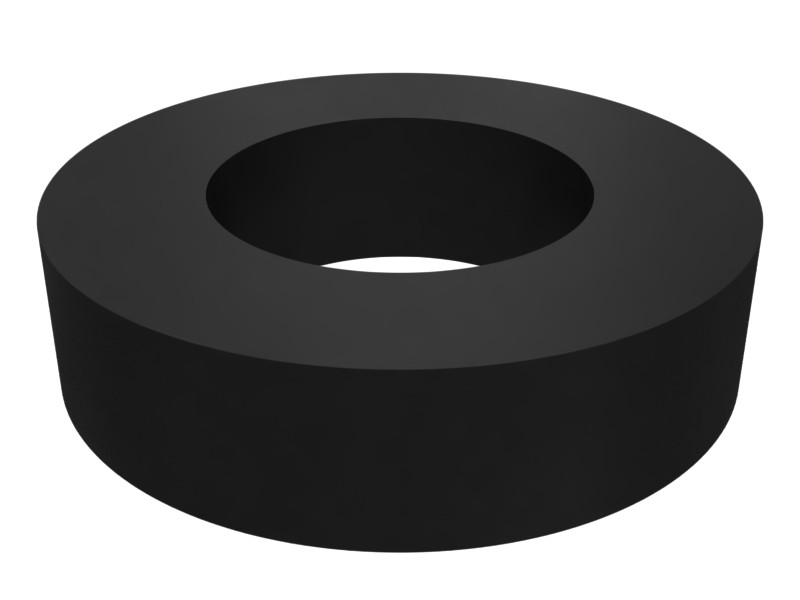

| Gasket Type | Flat Washer |
|---|---|
| Material | Low Alloy Steel |
| Outside Diameter | 32 mm (1.26 in) |
| Inside Diameter | 17.5 mm (0.69 in) |
| Thickness | 8 mm (0.315 in) |
| Fits Bolt Size | M16 mm (5/8 in) |
| Coating | Zinc phosphate + oil provides corrosion protection up to the point of assembly (painting is recommended for exterior applications). Salt spray resistance: 72 hours with no red rust. Coating color – dark gray to black. |
Compatible Equipment
- Generator Sets: 3516C, G3516C, G3516, 3512B, 3512E
- Track Loaders: 834H, 990K, 824G, 826K, 826H, 973K, 826G, 992
- Cold Planers: PL72
- Compactors: 825K, 824K, 814, 815, 816
- Engines: C27, C32, C175-16
- Asphalt Pavers: AD45
- Skid Steer Loaders: 24
- Motor Graders: 16M, 120, 14, 140 GC, 14M, 18, 160K, 140H, 16M3, 12H, 12K, 16, 140K, 16H
- Wheel Excavators: MD6250, MD6310, MD6200
- Dozers: D8, D11T, D10T2, D3G, D7E, D4G, D5G
- Mini Excavators: 310
- Excavators: 120 GC, 416E, 3516E, 3516B, 6040, 6060, 6015, 6015B, 6030
- Wheel Loaders: 966H, 972H, 980G, 836, R1600H, 980H, 950H, 950 GC, R2900 XE, 950G, 966K, 988H, R1700K
- Off-Highway Trucks: 730, 725C2, 793D, 797F, 793F, 770G, 773E, 798 AC, 773D, 772G, 740 GC, 735, 777D, 794 AC, 777, 773, 745C, 777E, 796 AC, 740, 775G, 745, 793
Additional information
| Machine Model | 120, 120 GC, 12H, 12K, 14, 140 GC, 140H, 140K, 14M, 16, 160K, 16H, 16M, 16M3, 18, 24, 310, 3512B, 3512E, 3516B, 3516C, 3516E, 416E, 6015, 6015B, 6030, 6040, 6060, 725C2, 730, 735, 740, 740 GC, 745, 745C, 770G, 772G, 773, 773D, 773E, 775G, 777, 777D, 777E, 793, 793D, 793F, 794 AC, 796 AC, 797F, 798 AC, 814, 815, 816, 824G, 824K, 825K, 826G, 826H, 826K, 834H, 836, 950 GC, 950G, 950H, 966H, 966K, 972H, 973K, 980G, 980H, 988H, 990K, 992, AD45, C175-16, C27, C32, D10T2, D11T, D3G, D4G, D5G, D7E, D8, G3516, G3516C, MD6200, MD6250, MD6310, PL72, R1600H, R1700K, R2900 XE |
|---|---|
| Equipment Type | Excavators, Mini Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Asphalt Pavers, Cold Planers, Engines, Generator Sets |
| Part Source | Genuine OEM |
