Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
These bolts are used where a separate washer is not suitable.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Remarks | Thread Length (mm) 44 |
|---|---|
| Thread Direction | RH |
| Class or Grade | A286 900 MPa (130 ksi) UTS |
| Locking Feature | Interference Thread |
| Thread Size | M10 mm (0 in) |
| Bolt Length | 70 mm (2.756 in) |
| Material | Carbon Steel |
| Material Description | Nickel-Iron Austenitic Stainless Steel Superalloy. Head Marking – A286 |

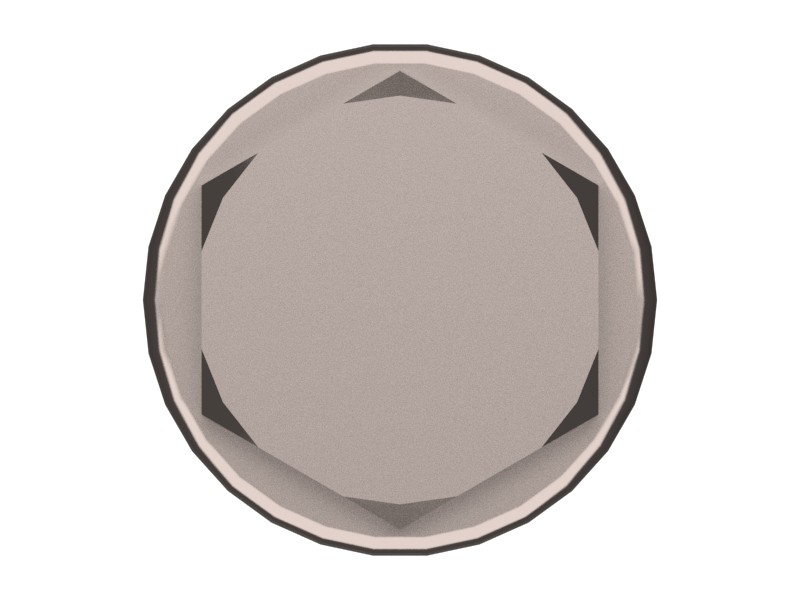

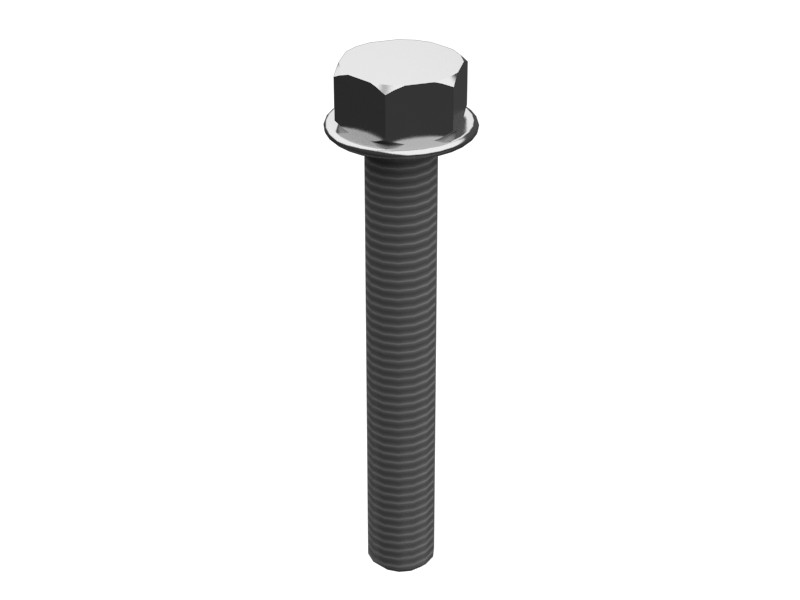

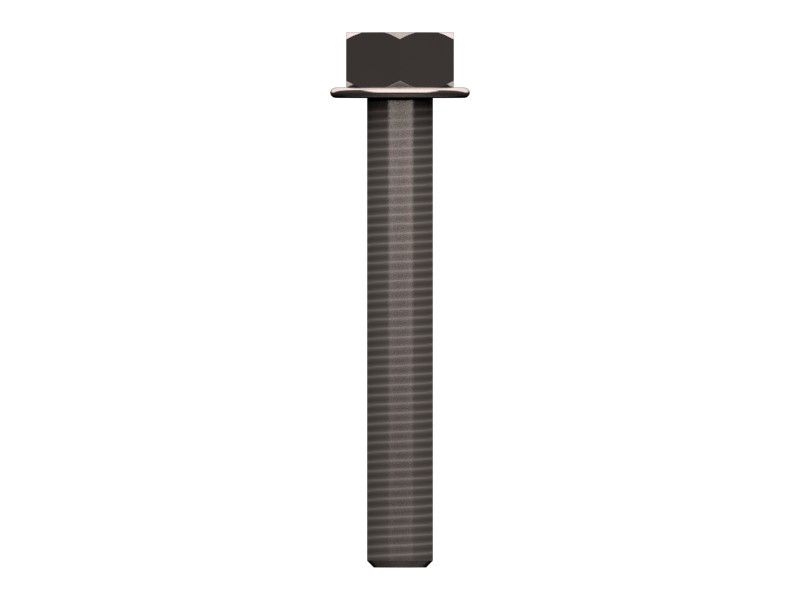

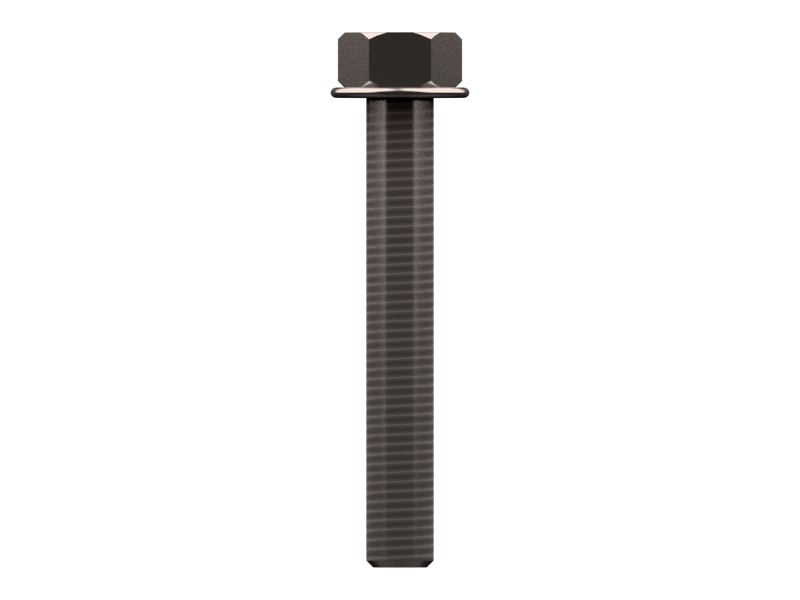

| Bolt Type | Flange Head Bolt |
| Coating | Zinc Phosphate and Oil |
| Thread Size (Diameter × Pitch) | M10X1.5 mm |
| Handle Length | 44 mm (1.732 in) |
| Thread | Coarse |
| Thread Size (in – TPI) | M10-1.5 in |
| Drive Chain | 16 mm |
| Head Height | 9.7 mm |
| Flange Type | Smooth Flange Face |
| Flange Diameter | 20.8 mm |
Compatible Equipment
- Engines: C7
- Excavators: 324D L, 325D L, 325C, 324D, 325D, 329D L, 325C L, M325D L MH, 329D, 3126
- Skid Steer Loaders: 3126B
